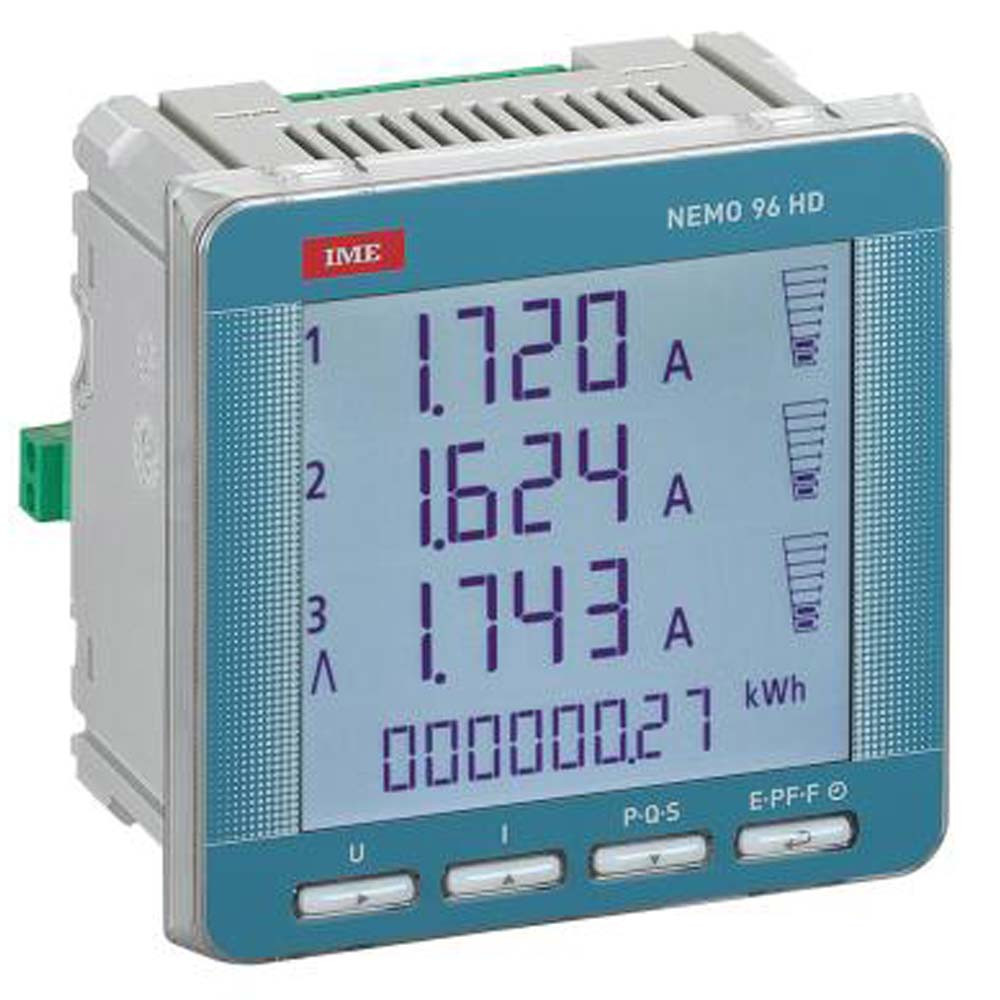

IME Nemo 96 HD Panel Mounted Single & Three Phase Network 0.5 Accuracy Class Multi-Function Meter - 500V

Features

  • Single phase or 3-phase, 3 or 4-wire unbalanced load operation
  • Measured Voltage 80-500V 50/60 Hz (phase to phase)
  • Auxiliary Voltage 80-265Vac/110-300Vdc
  • -/1A or -/5A CT Input selectable

Details

INPUT
  • Connection: single –phase and three-phase network, 3 and 4-wire
  • Connection with external dedicated current transformers
  • Three-phase voltage rating Un: 400V
  • Three-phase voltage: 80...500V (phase-phase)
  • Single-phase voltage rating Un: 230V
  • Three-phase voltage: 50...290V
  • External VT ratio: 1...10 (max. VT primary 1200V)
  • Current rating In: 5A – 1A
  • Max. current Imax: 1,2In
  • Instantaneous overload: 20In/0,5s
  • External CT ratio: 1...9999 (max. CT primary 50kA/5A – 10kA/1A)
  • Frequency rating fn: 50Hz
  • Tolerance: 47...63Hz
  • Type of measurement: true RMS value
  • Harmonic content: according to EN/IEC 62053-22 and EN/IEC 62053-23
  • Start time (energy count): < 5s
  • Voltage rated burden: 0,1VA (neutral-phase to voltage rating)
  • Current rated burden: 1VA (each phase to Max. current 6A)

Downloads

Files

IME Nemo 96HD/96HD+ Instruction Manual Nemo 96HD Instruction Manual 10781608W 01 2013
IME Nemo 96HD Data Sheet Nemo 96HD Data Sheet NT680 Version 15
Product Name / Options Price (ex VAT)
IME Nemo 96HD MF96001 Multi-Function Network Meter - Aux. Supply (8 0...265Vca/ac - 110...300V cc/dc) Call for Prices
