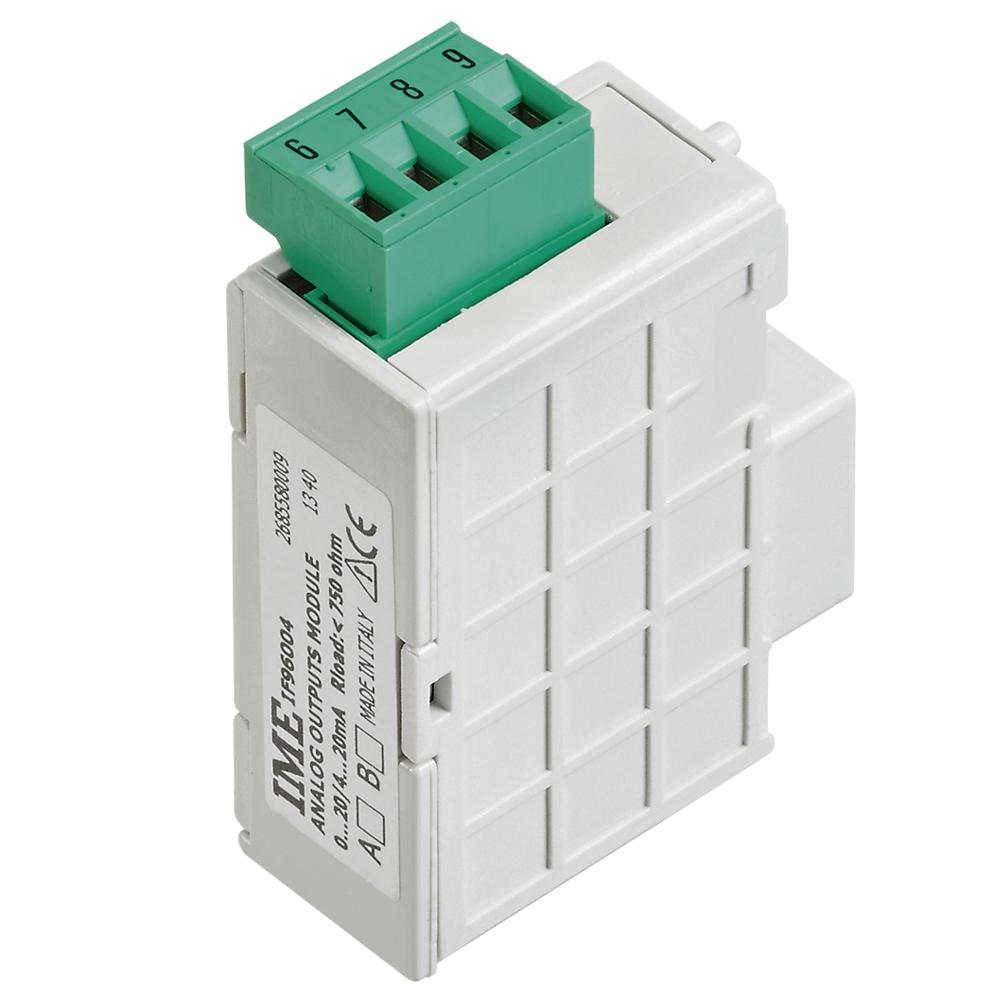

IME IF96004 Dual Analogue Output Module 0…20 and/or 4…20mA for use with Nemo 96HD and Nemo 96HD+


  • Dual analogue output module for use with Nemo 96HD and Nemo 96HD+ multifunction power monitors
  • 2 analogue outputs 0…20mA/4…20mA
  • Accuracy Class 0.5
  • Load =750 ohms


Programming of:
Associated quantity
Beginning of scale
Full scale
Output 0...20 - 4...20mA

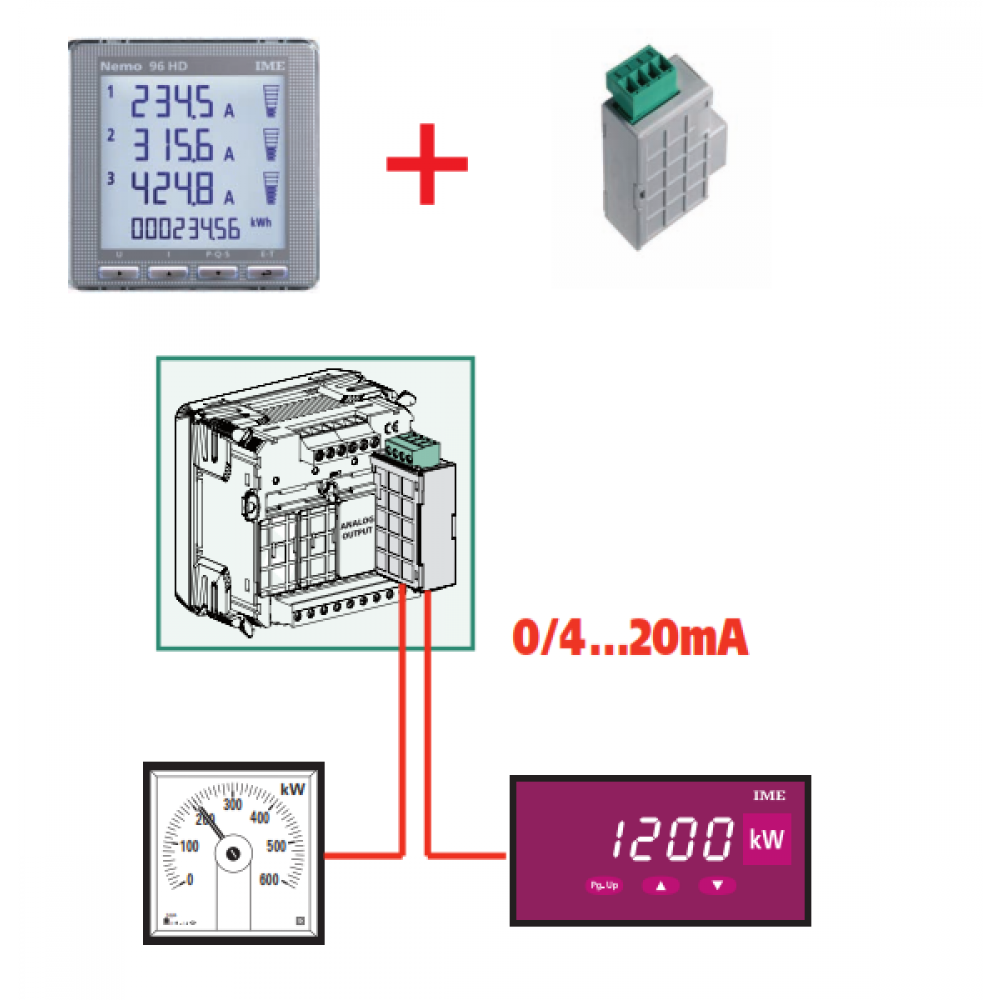

IF96004 module used with meters of Nemo 96HD/HD+ series, it allows the remote repetition of two electrical quantities by a 0…20 and/or 4…20mA analogue signal. For every meter (Nemo 96DH/HD+) it is possible to connect Max. 2 IF96004 modules, obtaining in this way 4 analoge outputs.

Type: unidirectional at real or figurative zero for changing output load
Accuracy: cl.0,5
Response time: ≤ 600ms
Rated values: 0…20 and 4…20mA
Output load: ≤ 750 Ω

Additional Information

Manufacturer IME (BTicino)
Product Name / Options Price (ex VAT)
IF96004 Call for Prices
