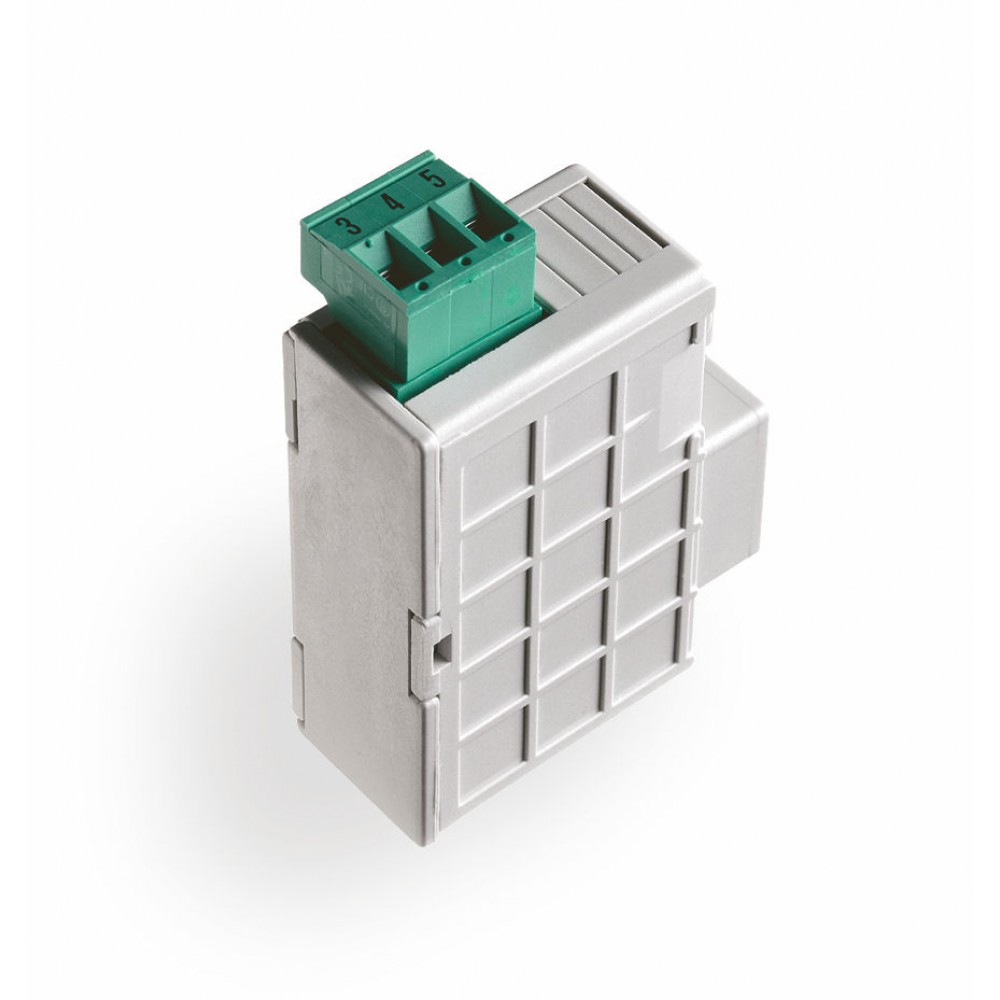

IME IF96001 Nemo 96 HD/HD+ RS485 Modbus Communications Module

Features

  • RS485 communications module for use with Nemo 96HDL, Nemo 96HD and Nemo 96HD+ multifunction power monitors
  • MODBUS/JBUS RTU protocol
  • 38.4kb/s max baud rate
  • Address selection 001 - 255

Details

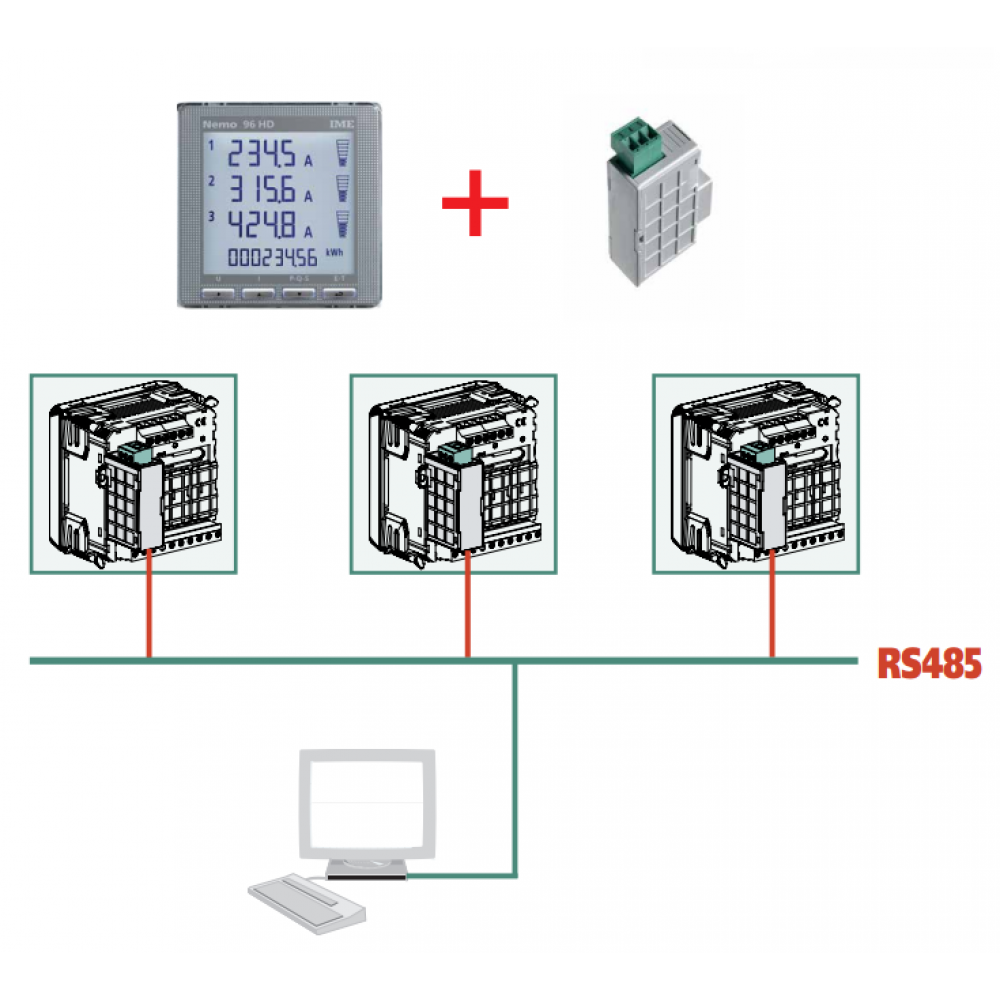

Module IF96001 combined with meters of Nemo 96 HD/HD+ series make available, by RS485 communication, all the data relevant to carried out measurement as well as the configuration parameters.

RS485 COMMUNICATION
Galvanically insulated from input and aux. supply (Nemo 96HD/HD+)
Standard: RS485 - 3-wire
Transmission: serial asynchronous
Protocol: compatible JBUS/MODBUS
Bit number: 8
Stop bit: 1
Required response time to request: ≤ 200ms
Meters that can be connected on the bus: 32 (up to 255 with RS485 repeater)
Highest distance from supervisor: 1200m

Additional Information

Manufacturer IME (BTicino)
Product Name / Options Price (ex VAT)
IF96001 Call for Prices
