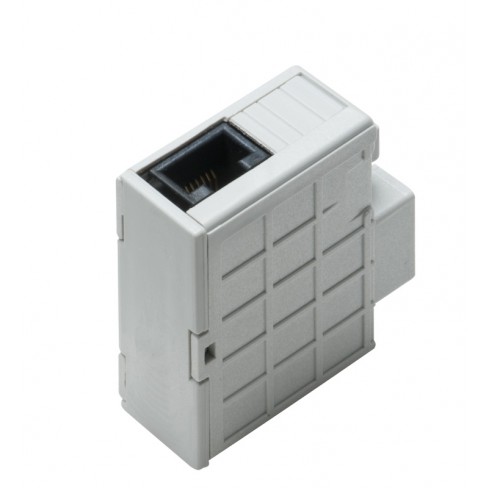

IME IF96015 Nemo 96/96HD+ Ethernet Communication Module

Features

  • Ethernet communication module for use with Nemo 96HD and Nemo 96HD+ multifunction power monitors
  • Ethernet RJ45 bidirectional communication
  • Integrated Web Server

Details

Module IF96015 combined with meters of Nemo 96HD/HD+ series makes available, by Ethernet communication the relevant date measurements. Integrated web server function Direct access through any Internet browser, without dedicated software.



AUXILIARY SUPPLY
Value referred to combination Nemo 96HD/HD+ multifunction meters + IF96015 interface
Rated burden: ≤ 5VA

INSULATION (EN61010)
Value referred to combination Nemo 96HD/HD+ multifunction meters + IF96015 interface
A.C. voltage test 1,5 kV r.m.s. value 50Hz/1min
Considered circuits: measure, aux. supply towards Ethernet communication

HOUSING
Housing: module with connector for connection Nemo 96HD/HD+ meter Max. depth: 81mm (Nemo 96HD/HD+ and module)
Connections: RJ45 connector
Housing material: self-extinguishing polycarbonate
Weight: 30 grams

Additional Information

Manufacturer IME (BTicino)

Downloads

Product Name / Options Price (ex VAT)
IME IF96015 Nemo 96/96HD+ Ethernet Communication Module Call for Prices
