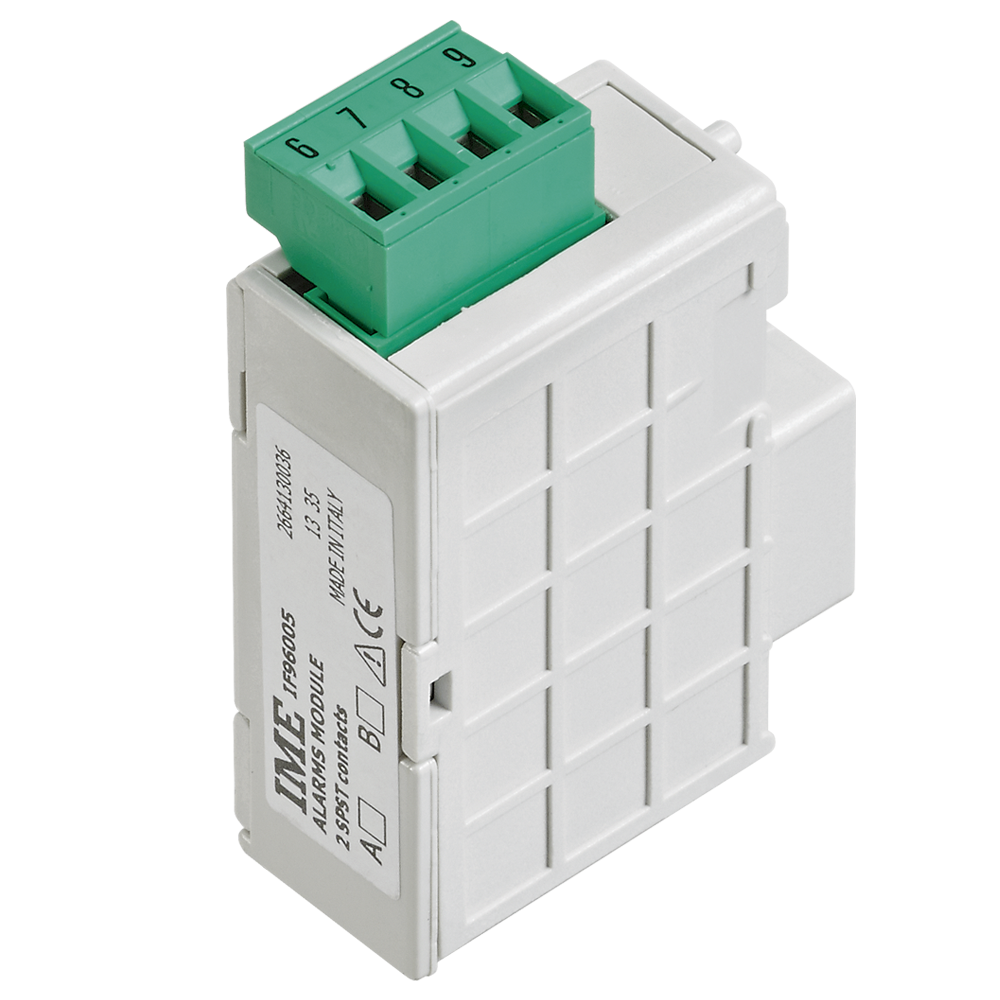

IME IF96005 Interface Alarms - 2 Independent and Insulated Alarms


  • Dual alarm module for use with Nemo 96HD and Nemo 96HD+ multifunction power monitors
  • 2 independently configurable insulated alarms.
  • Min or max, normally energised or de-energised.
  • Hysteresis 0…20%.
  • Operating delay 0…99s.
  • Reset delay 0…99s.
  • 2 potential free SPST contact relays.
  • 5A 250Vac Cosø 1, 3A 250Vac Cosø 0.4, 5A 30Vdc.


Programming of:
Associated quantity
Intervention threshold
Type of alarm
State of relay
Intervention delay
Reset delay

IF96005 module used with meters of Nemo 96HD/HD+ series, allows the monitoring of electrical quantities through 2 alarms.
For every meter (Nemo 96DH/HD+) it is possible to connect max. 2 IF96005 modules, obtaining in this way four alarms.

Additional Information

Manufacturer IME (BTicino)
Product Name / Options Price (ex VAT)
IF96005 Call for Prices
