IME IF96003 Interface Pulse Output for energy count repetition 2 Independent and insulated outputs - NEMO 96 HD/HD+

Features

  • Dual energy pulse output module for use with Nemo 96HD and Nemo 96HD+ multifunction power monitors
  • Configurable - type, weight, duration
  • 2 opto relays with potential free SPST-NO contact
  • 110Vdc/ac 50mA rating

Details

Programming of:
Associated energy (active and/or reactive)
Pulse weight
Pulse duration

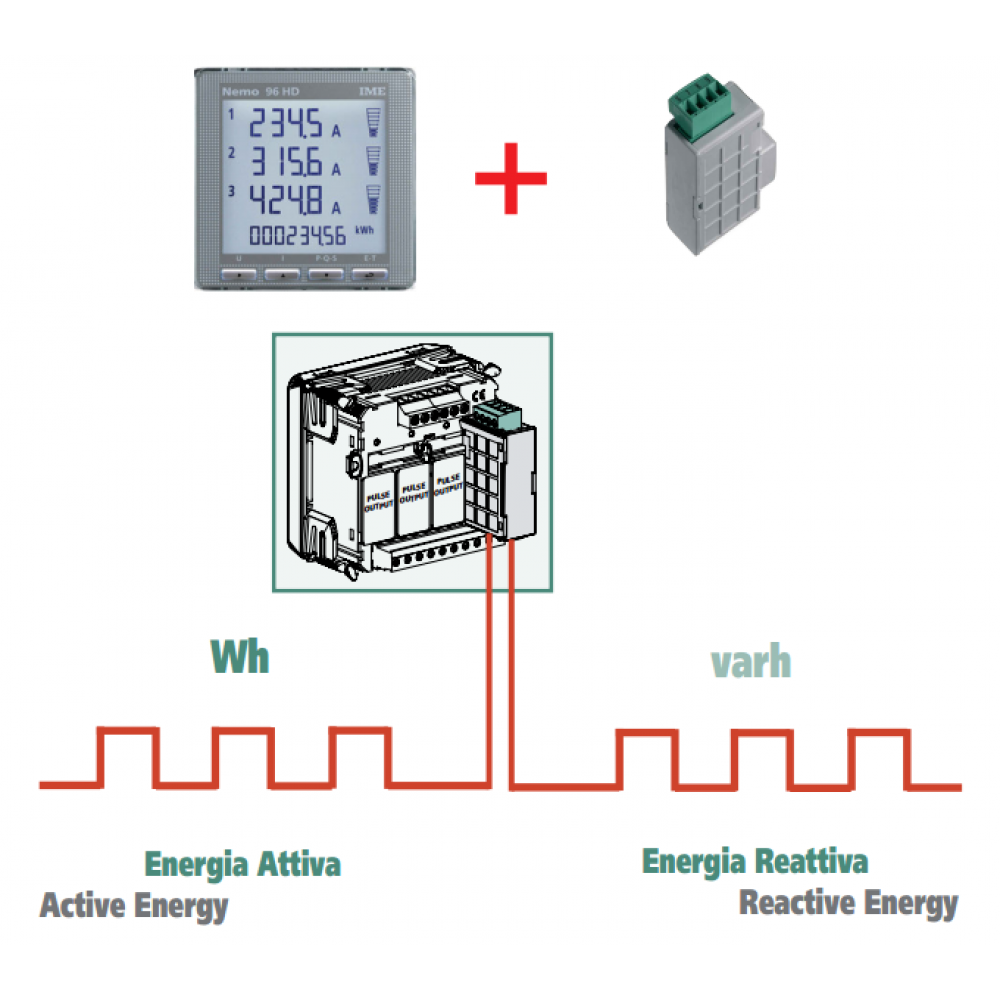

IF96003 module used with meters of Nemo 96HD/HD+ series, it allows the remote repetition of energy count.

Two independent and insulated outputs can be freely associated to active and/or reactive positive and/or negative energy count. For every meter (Nemo 96DH/HD+) it is possible to connect max. 2 IF96003 module, obtaining in this way 4 pulse outputs.

PROGRAMMABLE PARAMETERS for each output
Associated energy:
positive active energy (EWh+)
positive reactive energy (Evarh+)
negative active energy (EWh+)
negative reactive energy (Evarh+)
Pulse weight: 1 pulse/10Wh – 100Wh - 1 kWh – 10 kWh – 100kWh – 1MWh – 10MWh
1 pulse/10varh – 100varh – 1kvarh – 10kvarh – 100kvarh – 1Mvarh – 10Mvarh
Pulse duration: 50 – 100 – 200 - 300ms
Product Name / Options Price (ex VAT)
IF96003 Call for Prices
