This product is no longer available - see bottom of page for alternative
Models Available

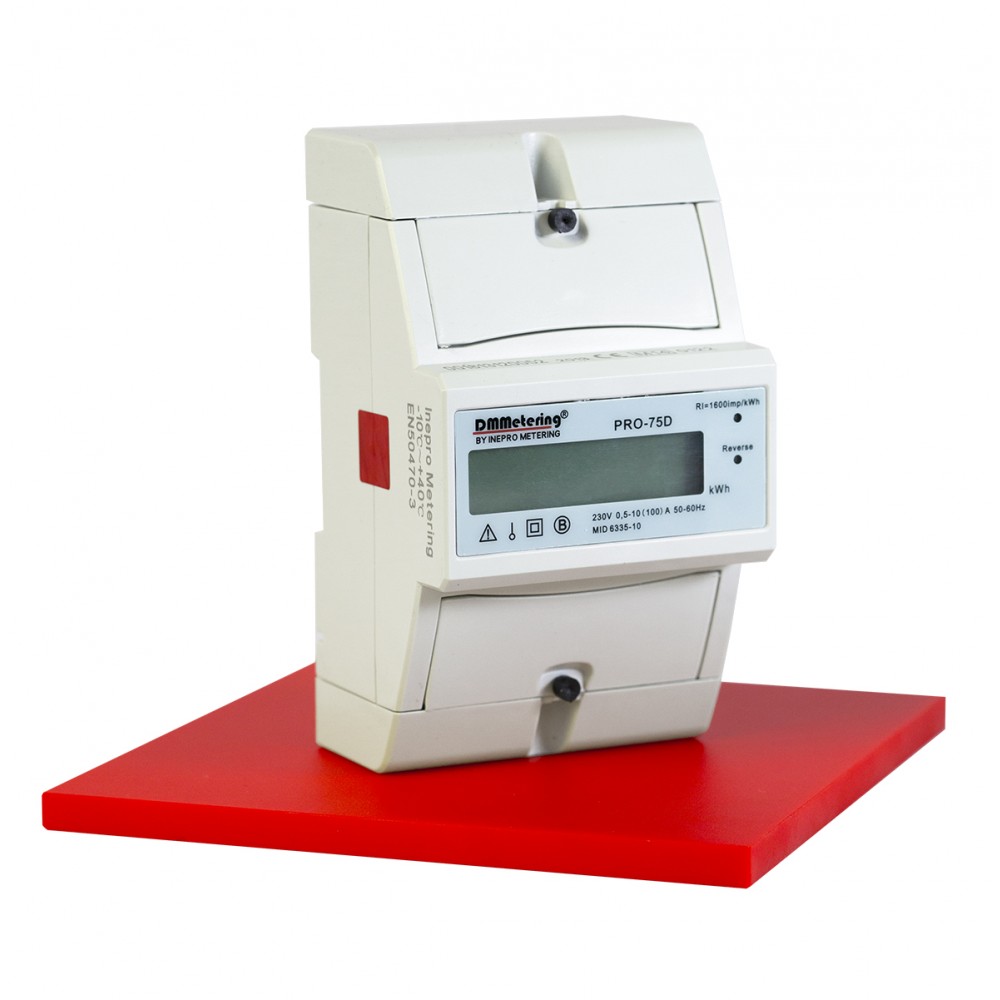

PRO-75D Pulse MID has Integrated Communication Protocol is pulse output only.

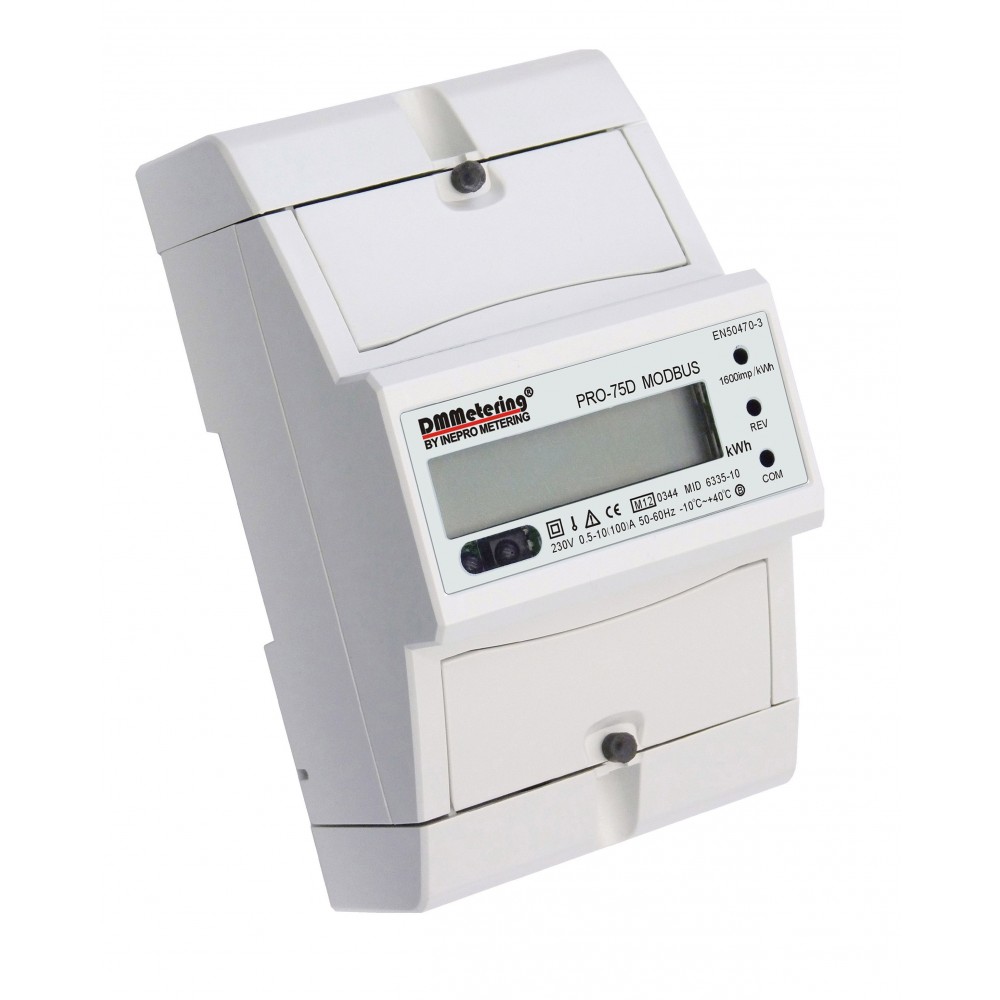

PRO-75D Modbus MID has Integrated Communication Protocols is pulse and RS485/MODBUS RTU / KWh
Specifications
Nominal voltage (Un) : 230/400 AC
Operational voltage : 161…299V AC
Insulation capabilities :
- AC voltage withstand : 4KV for 1 minute
- Impulse voltage withstand : 6KV – 1.2µS waveform
Basic current (Ib) : 10A
Maximum rated current (Imax) : 100A
Operational current range : 0.4% Ib- Imax
Over current withstand : 30Imax for 0.01s
Operational frequency range : 50Hz or 60 Hz ±10%
Internal power consumption : ≤2W /Phase -≤10VA/Phase
Test output flash rate : 1600imp/kWh
Pulse output rate : 1600imp/kWh
Data save : The data can be stored for more than 10 years without power
RS485 Communication
Bus type : RS485
Baud rate : 1200（default), 2400, 4800, 9600
Range : 1000m
Protocol : MODBUS RTU with 16 bit CRC
Address range : 0…255 user settable
Maximum bus load : 64 meters per bus segment
