More Views

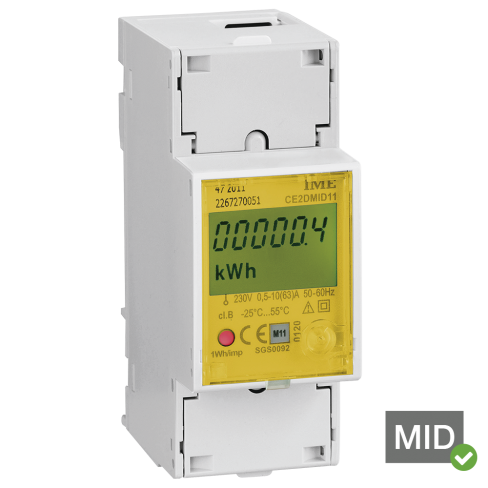

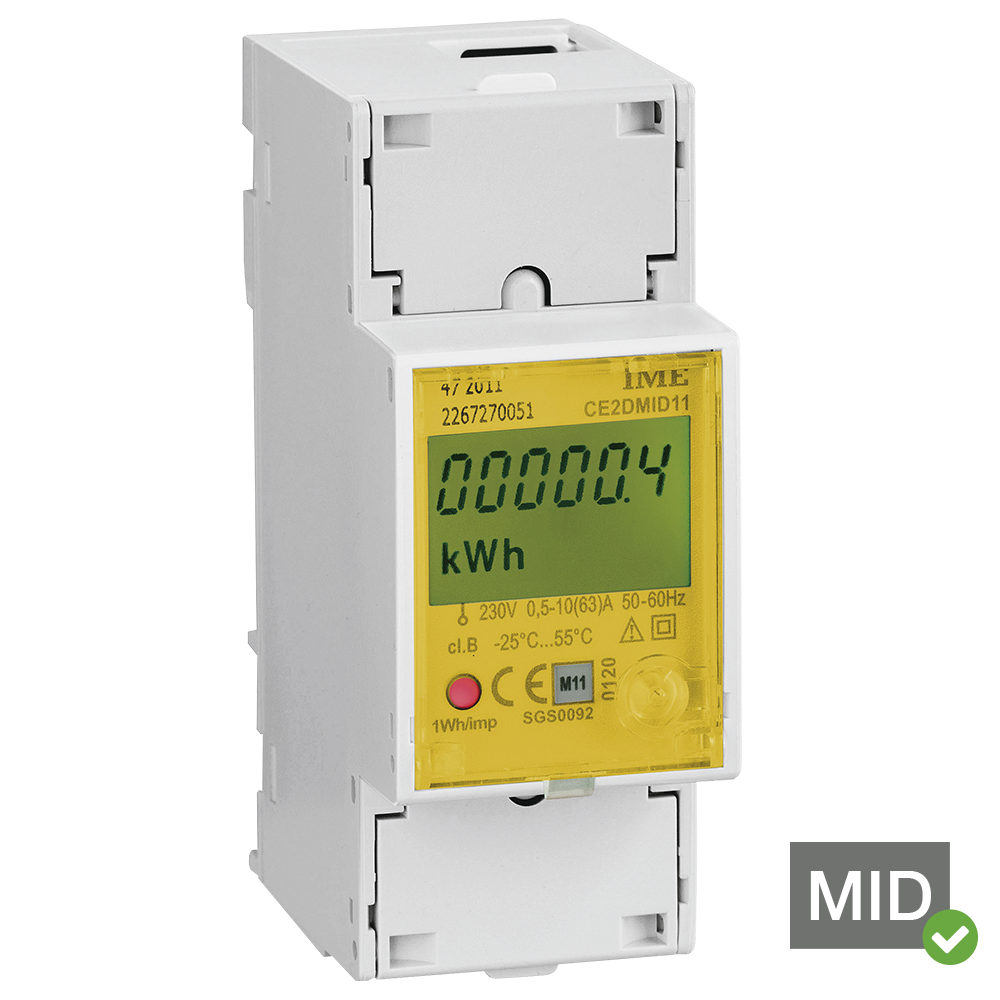

IME Conto D2 MID Certified Single Phase Network Multifunction Active Energy Meter

Features

  • Kilowatt hour meter / active energy meter
  • Conforms & Certified to MID B and D approval
  • 2 module wide
  • DIN rail mounted
  • Single phase network
  • Input current 10(63)A
  • Input voltage 230V
  • Active energy class B (EN50470)
  • Reactive energy class 2 (EN60253-23)
  • Total active energy, Partial active energy (resettable), Current, Voltage, Active power (kW), Frequency, Power factor, Hours run meter (resettable)
  • LCD Display 5+1= 999999.9
  • Self supplied auxiliary
  • Integrated Communication Protocols are *Pulsed output or *RS485 Modbus RTU (*depending on model ordered)

Details

The IME Conto D2 is a single phase network multifunction MID Certified active energy meter. The meter allows direct connection upto Input current 10(63)A.

Applications for use include sub billing application such as :- camping sites, holiday rentals, student accommodation, office buildings, shopping centres, marinas, exhibition halls, recharging systems for electric vehicles etc.

What is the MID?

The MID (Measuring Instruments Directive - 2004/22/CE) is a 2004 European Directive applicable to measuring devices and systems in the context of commercial transactions. The aim of the directive is improve protection of consumers and safeguard their interests. These measuring instruments may be active electrical energy meters (Appendix MI003 of the Directive), water meters, gas meters, thermal energy meters, weighing instruments, etc.

The use of MID-certified electricity meters has been made mandatory on "private"* electrical networks if there is active energy billing based on consumption readings by index differences. Typical examples of use include: camping sites, holiday rentals, student accommodation, office buildings, shopping centres, marinas, exhibition halls, recharging systems for electric vehicles.

This model has been MID certified to the conform to B+D (ie type examination and quality assurance of the production process) of the MID approval process.

Downloads

Files

IME Conto D2 MID Data sheet Conto D2 MID Data sheet NT788-07
IME Conto D2 MID Instruction Manual Conto D2 MID Instruction Manual 10782111W 11-12
IME Conto D2 MID Protocol Handbook Conto D2 MID Protocol Handbook - PR122-00
IME Annex D MID Certificate For CONTO Meters
Product Name / Options Price (ex VAT)
IME Conto D2 CE2DMID12 MID 63A Direct Connect With Pulse Communications Call for Prices

IME Conto D2 CE2DMID11 MID 63A Direct Connect With RS485/Modbus RTU Communications Call for Prices
