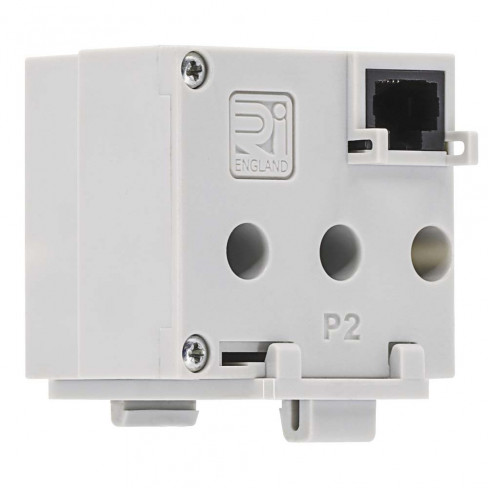

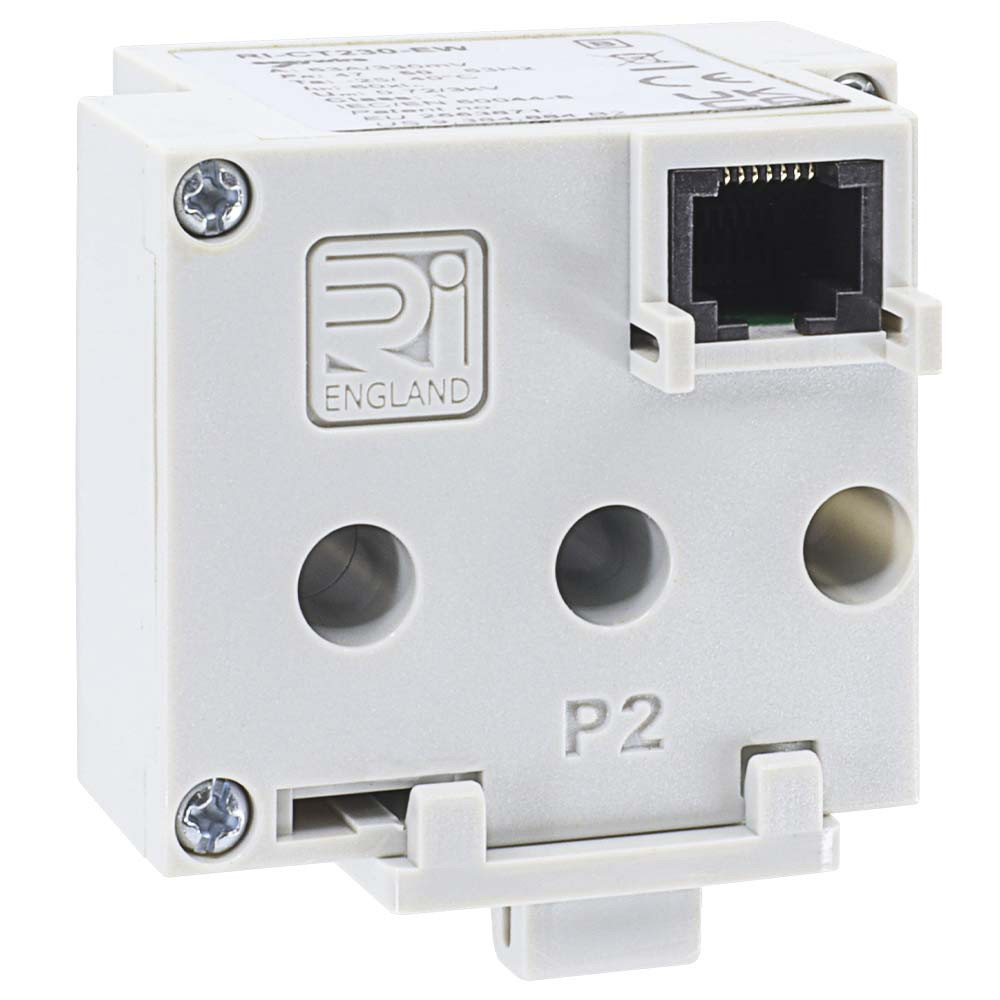

The RI-CT230-EW is part of the easywire® family of current transformers and is one of six frame sizes available.

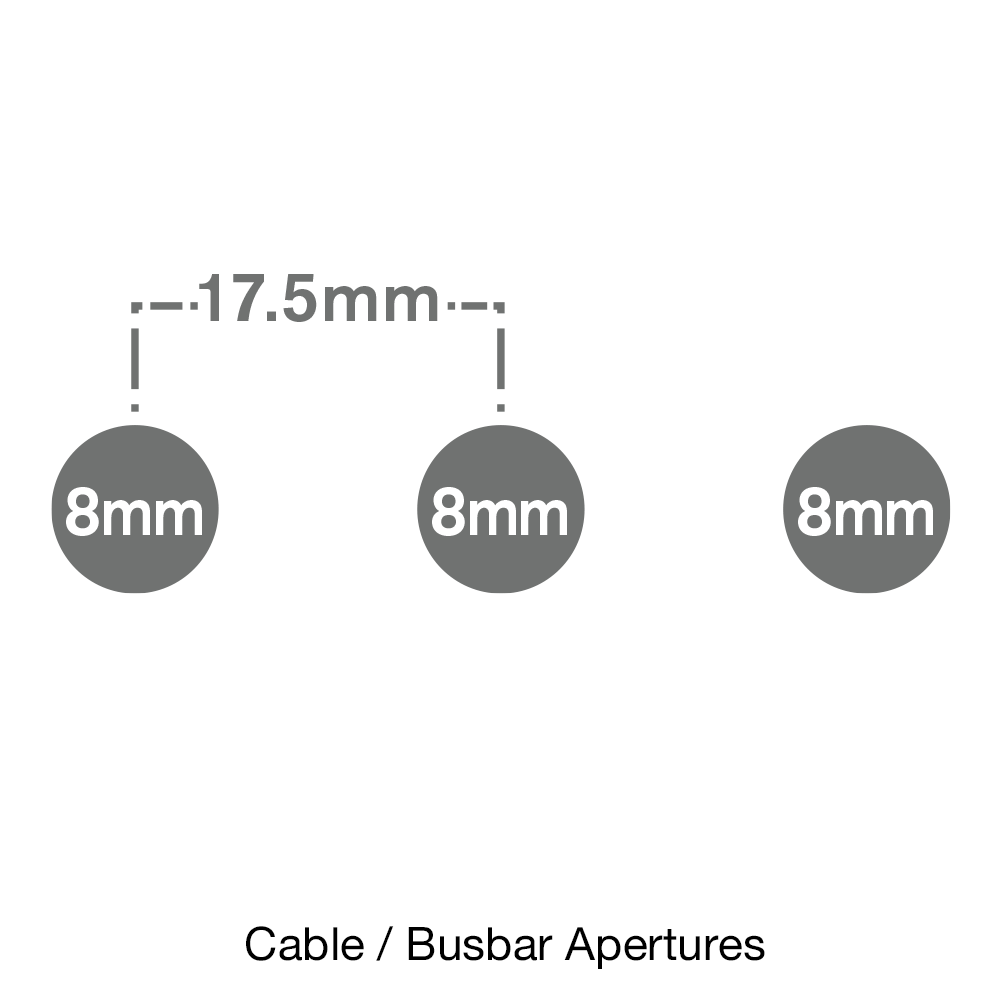

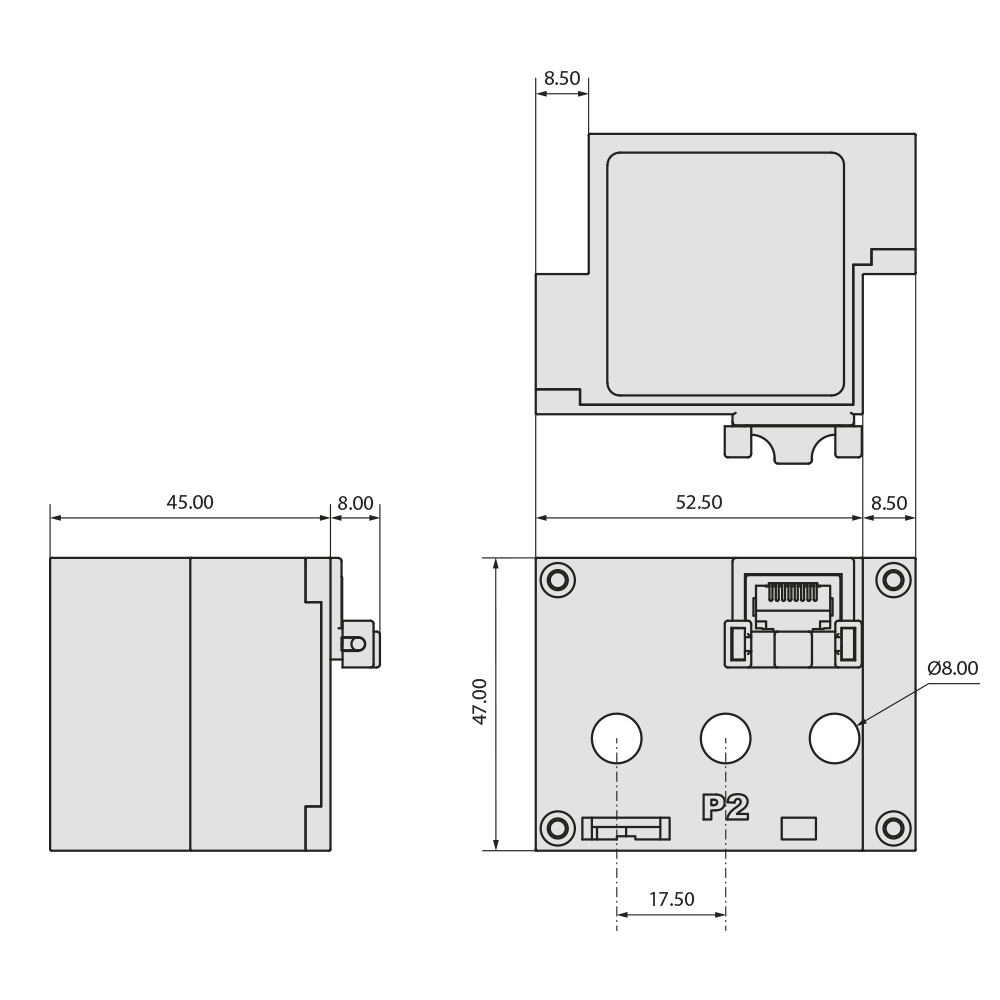

This transformer has been designed to mount directly under MCBs with a spacing of 17.5mm between aperture centres.
The easywire® system has been designed to save up to 90% installation time compared to a standard current transformer to meter installation.
This three-phase current transformer is suitable for monitoring current in industrial and commercial applications and is designed to connect to the easywire® series of metering products.
Built-in limiting circuitry ensures the secondary of the current transformer is always under load and clamped to a safe level. This means that the output connection may be safely disconnected while under load.
Improved design features of these easywire® current transformers include a robust ‘snap-on’ DIN rail fixing, sealable (anti-tamper) RJ45 connection sockets and moulded load direction indication arrows on the CT shoulders.

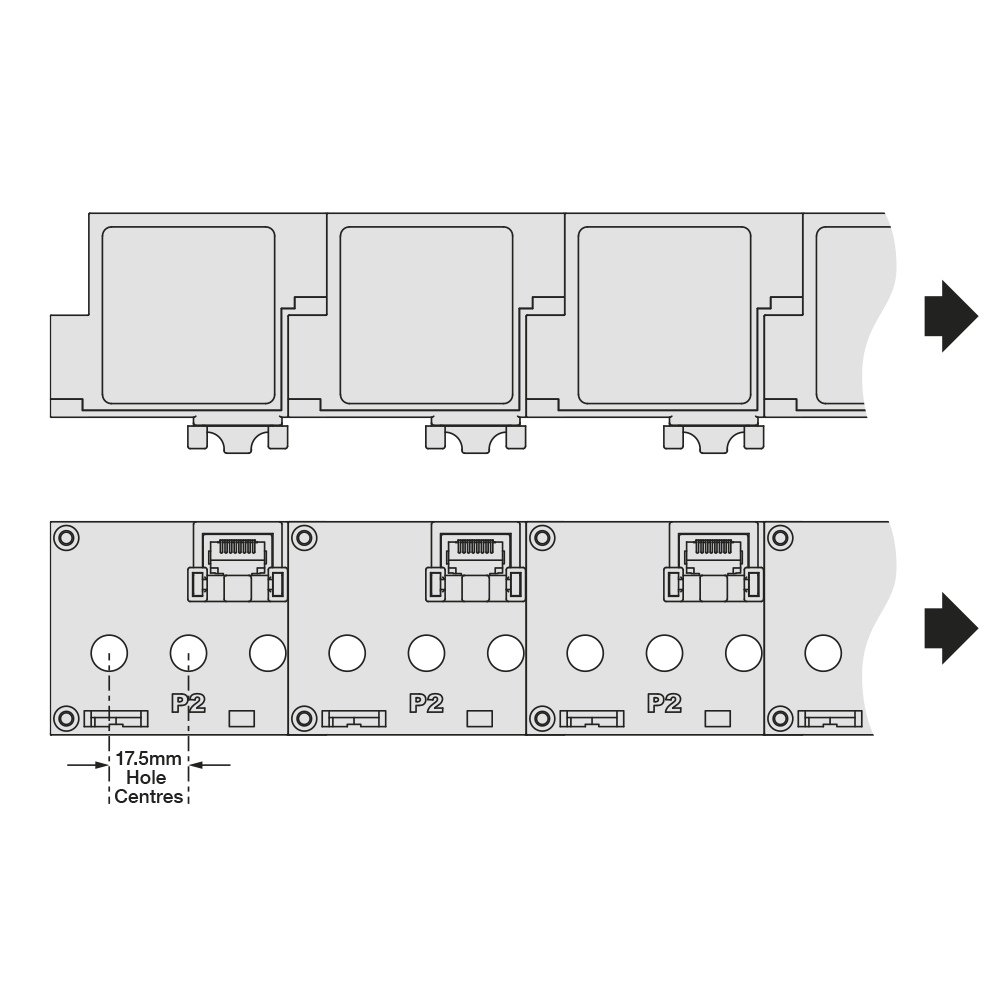

The design of the housing allows for the current transformers to be interlinked allowing for multiples of three-phase circuits to be monitored.
