IME TASR Horizontal Mounting (formerly TAS127H) Single Phase Current Transformer

Features

  • Measuring current transformer (formerly TAS127H)
  • Ranges: 400 to 4000A (1A or 5A Secondary)
  • Busbar window 38 x 127mm
  • Supplied with busbar mounting clamps
  • Secondary pillar screw terminals
  • Optional sealable terminal cover (ATACOP04)
  • Optional spacer for 100mm bar (ATADIS02)
  • Weight 1500g

Details

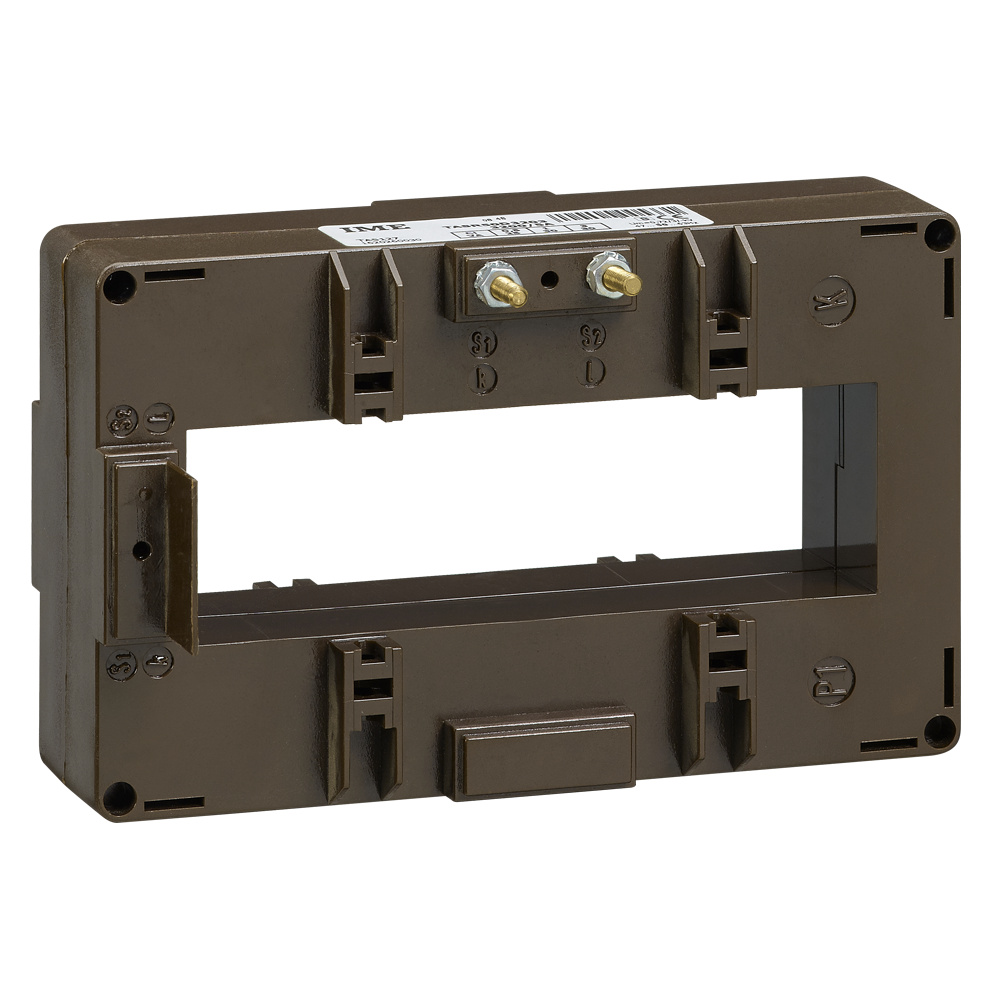

Stadium type measuring current transformer supplied with busbar mounting bracket. The horizontal mounting TASR transformer has a 38 x 127mm aperture and is available with primary currents from 400 to 4000A.

Additional Information

Manufacturer IME (BTicino)

Downloads

Files

TASR Data Sheet TASR Data Sheet NT834-08
Product Name / Options Price (ex VAT)
TASR50D1003 (1000/5A) Call for Prices
TASR50D2503 (2500/5A) Call for Prices
TASR50D3203 (3200/5A) Call for Prices
