IME TASR TAS127 Single Phase Measuring Current Transformer

More Views

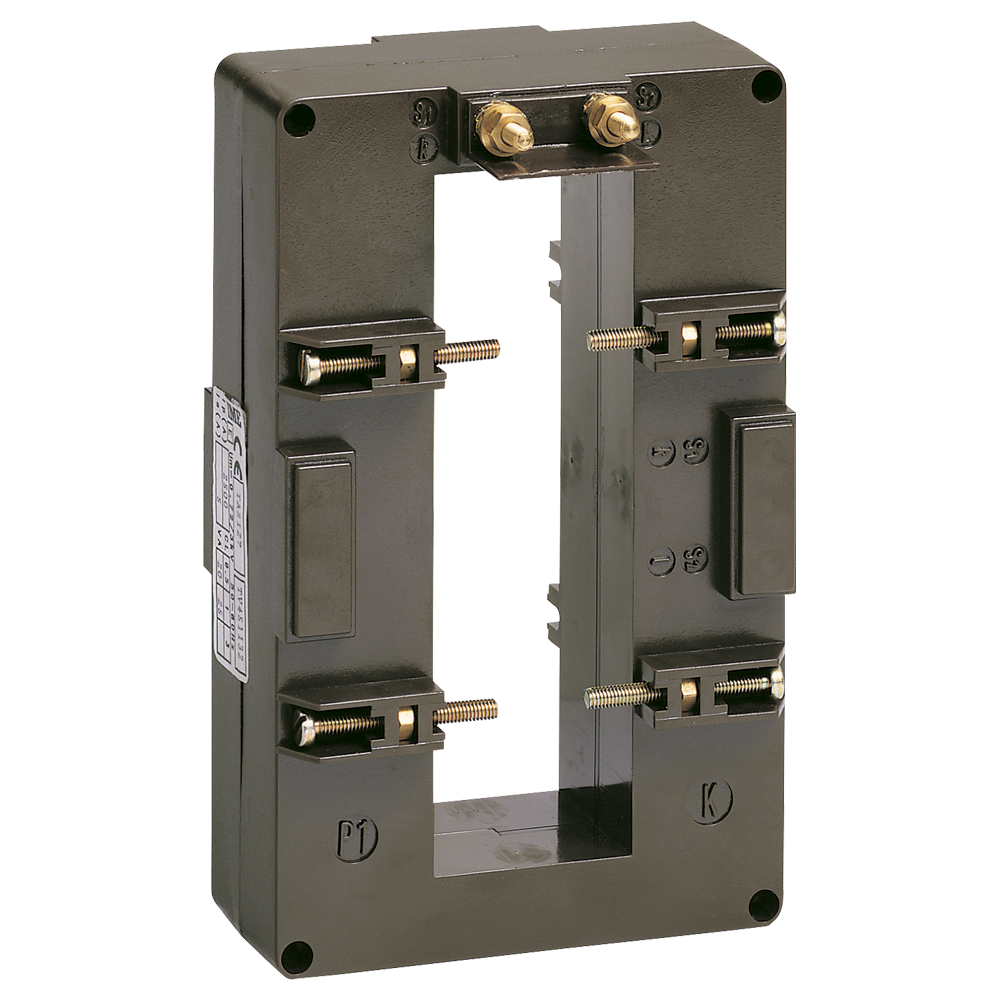

IME TASR TAS127 Single Phase Measuring Current Transformer

Features

Measuring current transformer (formerly TAS127)
Ranges: 400 to 4000A (1A or 5A Secondary)

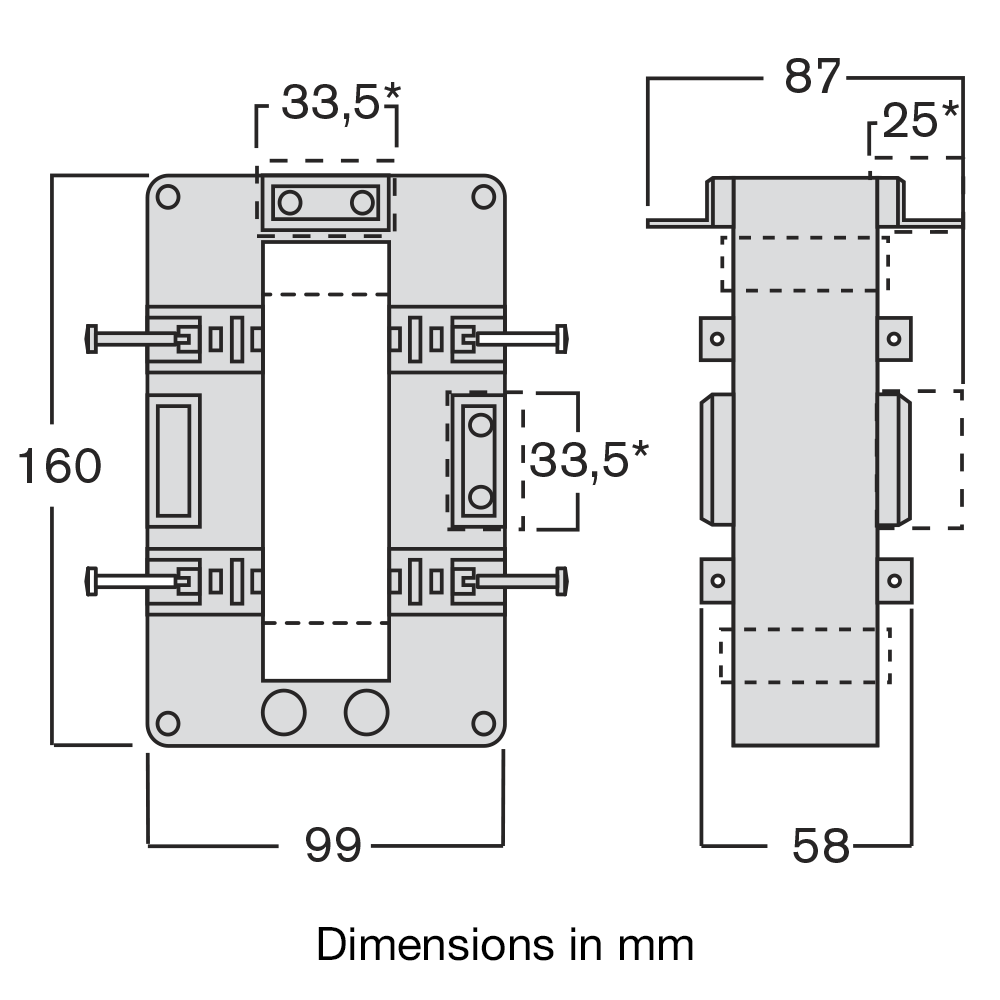

Busbar window 127 x 38mm
Supplied with busbar mounting clamps
Secondary pillar screw terminals
Optional sealable terminal cover (ATACOP04)
Optional spacer for 100mm bar (ATADIS02)
Weight 1500g

- | Add to Compare

Details

Stadium type measuring current transformer supplied with busbar mounting bracket. The TASR. transformer has a 127 x 38mm aperture and is available with primary currents from 400 to 4000A.

Additional Information

Manufacturer	IME (BTicino)

Downloads

Files

TASR Data Sheet

TASR Data Sheet NT834-08

Product Name / Options	Price (ex VAT)
TASR50C400 (400/5A)	Call for Prices
TASR50C600 (600/5A)	Call for Prices
TASR50C800 (800/5A)	Call for Prices
TASR50D100 (1000/5A)	Call for Prices
TASR50D120 (1200/5A)	Call for Prices
TASR50D125 (1250/5A)	Call for Prices
TASR50D150 (1500/5A)	Call for Prices
TASR50D160 (1600/5A)	Call for Prices
TASR50D200 (2000/5A)	Call for Prices
TASR50D250 (2500/5A)	Call for Prices
TASR50D300 (3000/5A)	Call for Prices
TASR50D320 (3200/5A)	Call for Prices
TASR50D400 (4000/5A)	Call for Prices
TASR10D160 (1600/1A)	Call for Prices
TASR10D200 (2000/1A)	Call for Prices
TASR10D250 (2500/1A)	Call for Prices
TASR10D300 (3000/1A)	Call for Prices
