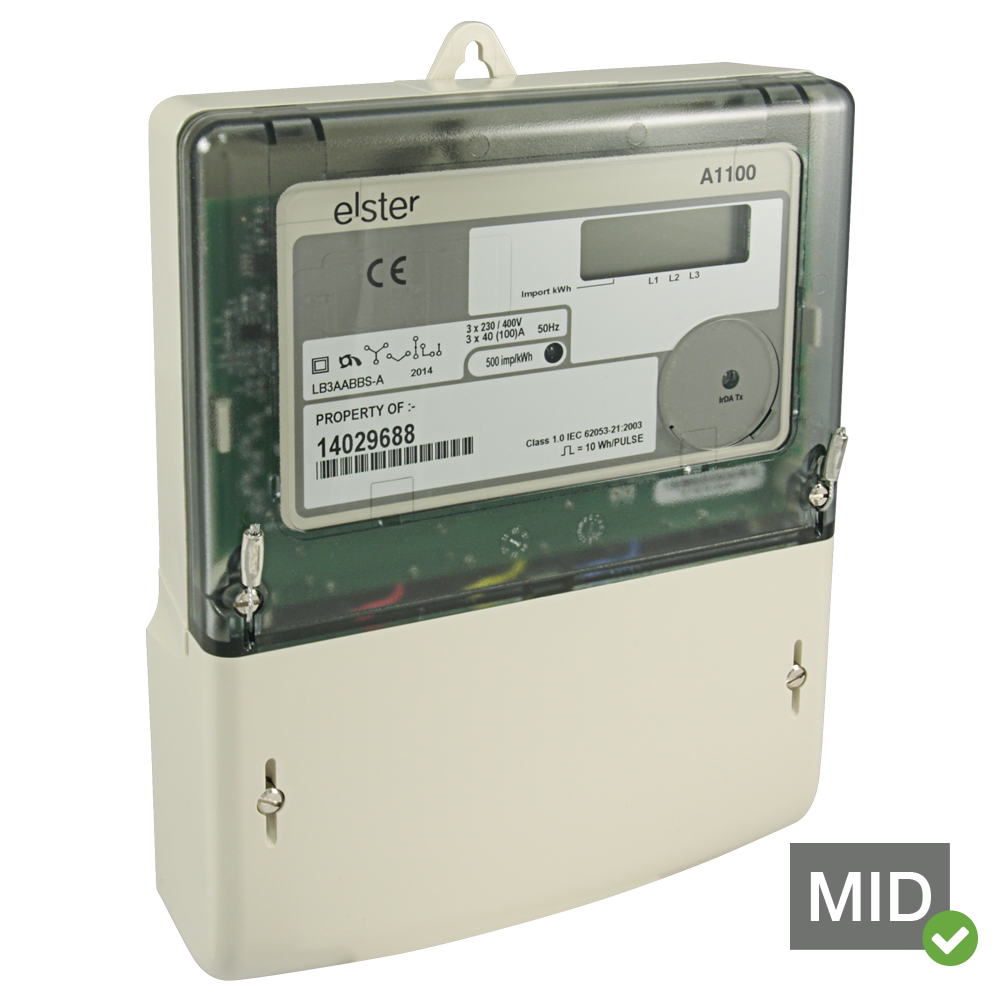

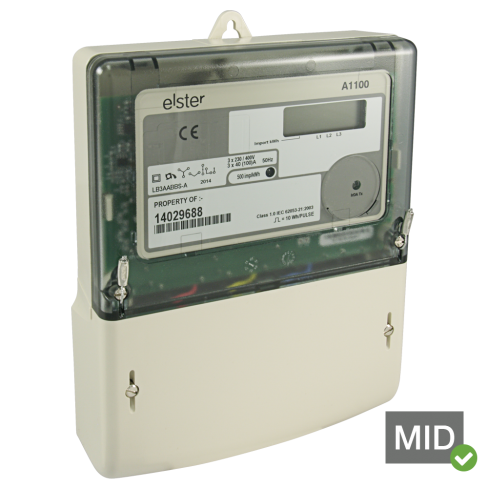

Elster A1100 MID Certified Class 2 Three Phase Electronic Polyphase Meter

Features

  • Accuracy – Class 1 or Class 2, EC Directive 2004/22/EC (MID) - kWh Class A or Class B
  • kWh import or kWh import/export
  • Direct or CT connected
  • 3 phase, 4 wire or 3 phase, 3 wire
  • 6 year product life
  • Pulse Value Of 10P/Wh
  • Large figure display (9.8mm)
  • Extensive security data
  • IrDA (Infrared Data Association) output for transmitting billing, security and status data
  • 12kV impulse withstand
  • Compact design
  • Double insulated, glass filled polycarbonate case
  • DIN 43857 Part 2 and Part 4 (except for top fixing centres)
  • IP53 in accordance with IEC 60529:1989

Details

The Elster A1100 is an electronic polyphase meter for domestic, commercial and light industrial direct connected A1100DC or CT connected applications A1100CT.

Two main versions of the Elster A1100 meter are available. The liquid crystal display version of the meter has a choice of display formats and can be supplied with one or two rates. The meter is available as import only or import and export. The display has a customer defined display sequence that can include security information. Chevrons and legends on the nameplate identify the data being displayed.

The mechanical register version of the Elster A1100 meter is available for kWh import one rate applications only. Five LED's are used to identify the status of the meter/system.

The Elster A1100 offers high security with many useful security features. These include phase failure monitoring (A, B and C), reverse run (count, energy reading and alarm), power fail, phase fail and elapsed hours (rate 1, rate 2 and cumulative). These are stored as security data and can be included as part of the display sequence and read via the IrDA or serial data port.

Communication is provided via the IrDA (Infrared Data Association) port allowing the meter registers and security data to be read electronically using a hand-held device. This greatly reduces the possibility of manual meter reading errors. The meter can be configured at manufacture to provide the same absolute serial data as the IrDA port via the meter auxiliary terminals or RJ11 socket.

As an alternative to the serial data the meter can be provided with a pulse output via the auxiliary terminals. The pulse output is in accordance with SO standard (IEC 62053-31).

Automatic Meter Reading (AMR) is facilitated by either the IrDA port, serial data output or the pulsed output.

Meters can be supplied to meet accuracy EN 61036 Class 1 or Class 2 requirements or EC Directive 2004/22/EC (MID) - kWh Class A or Class B.

Additional Information

Manufacturer Elster
Product Name / Options Price (ex VAT)
Elster A1100CT CT Connected Three Phase Class 2 Meter - UK504-039 Call for Prices

Elster A1100DC (Direct Connected) Electronic Polyphase Meter - UK504-060 Call for Prices

This product is sold exclusively via our distribution network please contact our Sales Department on 01245 428500 on to find out your nearest stockist or if you are interested in becoming a distributor Call for Prices
