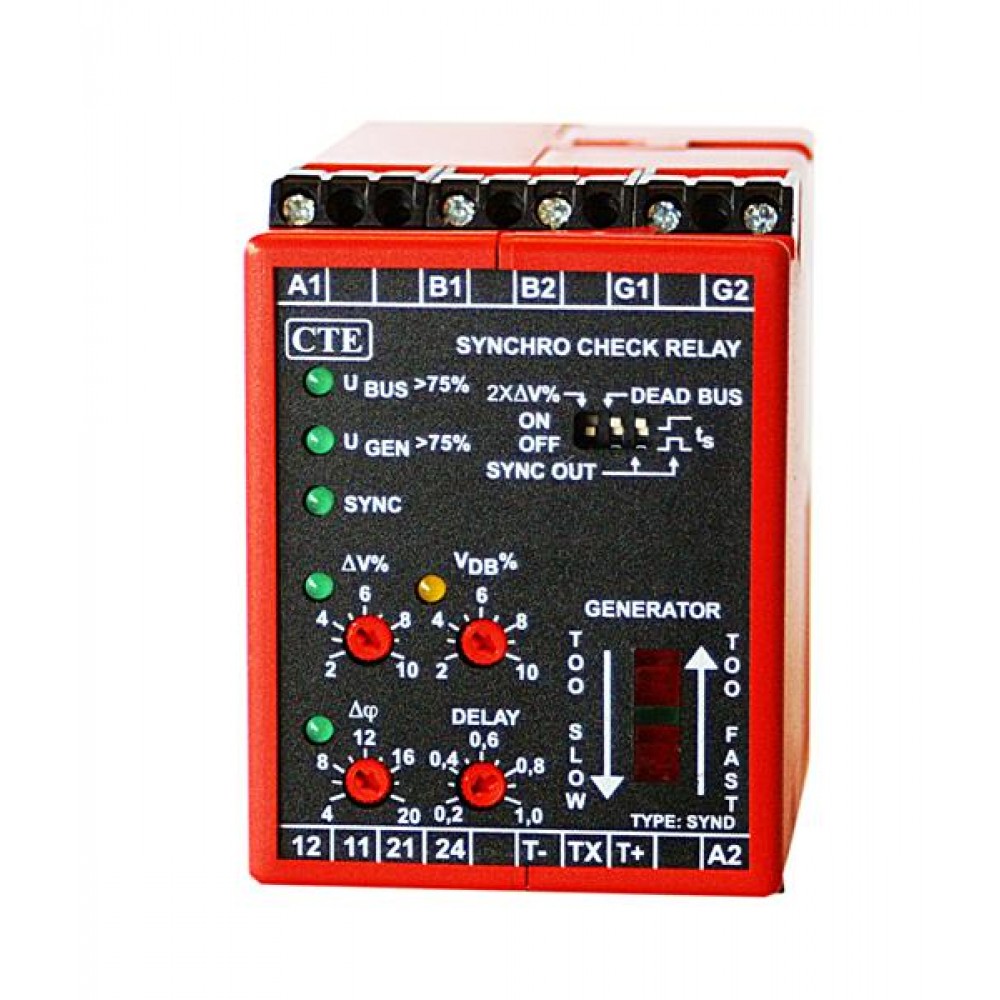

Thiim SYND XXXX B400 AA5C Synchro Multi-Function Check Relay 55mm

Features

  • Multi function check relay
  • Extremely compact
  • Rail mounting for easy cabling on the baseplate
  • Three wire interface to an optional panel indicator
  • Microcontroller and SMD - technic for accurate and reliable function.
  • LED indication of bus and generator status

Details

The synchro check relay type SYND is a multifunction unit that can be set to both constant or pulse output as well as to enable or disable synchronization to a “dead bus”. The unit is designed with a micro controller to monitor the bus and the generator voltage, as well as the phase differential between two grids. The SYND ensure the right conditions before the connection of the generator to the bus, in order to avoid damage to the generator and malfunction or damage to the connected equipment. The unit is specially designed for DIN rail mounting on the base of the control box for an easy connection to the two bus systems.

For a front panel indication of the function, the SYND can be connected through a simple three wire digital interface to the optional panel indicator type SYPD.

See data sheet for information required when ordering.

Additional Information

Manufacturer Thiim
Product Name / Options Price (ex VAT)
Thiim SYND-XXXX-B110-AA5C Check Sync Relay 55mm, Trimpot A Adjustable, Rail mounting - 38654 Call for Prices

Thiim SYND-XXXX-B230-AA5C Check Sync Relay 55mm, Trimpot A Adjustable, Rail mounting - 38427 Call for Prices

Thiim SYND-XXXX-B400-AA5C Check Sync Relay 55mm, Trimpot A Adjustable, Rail mounting - 39648 Call for Prices

Thiim SYND-XXXX-E400-AA5C Check Sync Relay 55mm, Trimpot A Adjustable, Rail mounting - 44359 Call for Prices
