  • IME Conto D4-Pt CE4DMID01 MID Certified Four Module Three Phase Network kWh Energy Meter - CT Operated

More Views

IME Conto D4-Pt CE4DMID01 MID Certified Four Module Three Phase Network kWh Energy Meter - CT Operated

Features

This product is no longer available

  • Input voltage 100 - 400V (phase-phase
  • B and D MID Certified active energy meter
  • 4 module DIN rail mounting
  • 3 phase (3 or 4 wire) network unbalanced load
  • Active energy class B (EN50470)
  • Reactive energy class 2 (EN60253-23)
  • Power demand, Power max demand, Phase and neutral current, Phase to phase and phase to neutral voltage, Frequency, Phase active power, Phase reactive power, 3 phase active/reactive and apparent power, Power factor
  • Hours run
  • -/5A current transformer operated
  • 230V/400V 50Hz measured voltage
  • 8 digit LCD display
  • Integrated Communication Protocols are Programmable pulse output and RS485 Modbus RTU
  • Pulse duration : selectable 50 – 100 – 200 – 300ms
  • Programmable CT ratio (1...9.999)
  • Auxiliary supply 230V 50/60Hz

Details

This product is no longer available

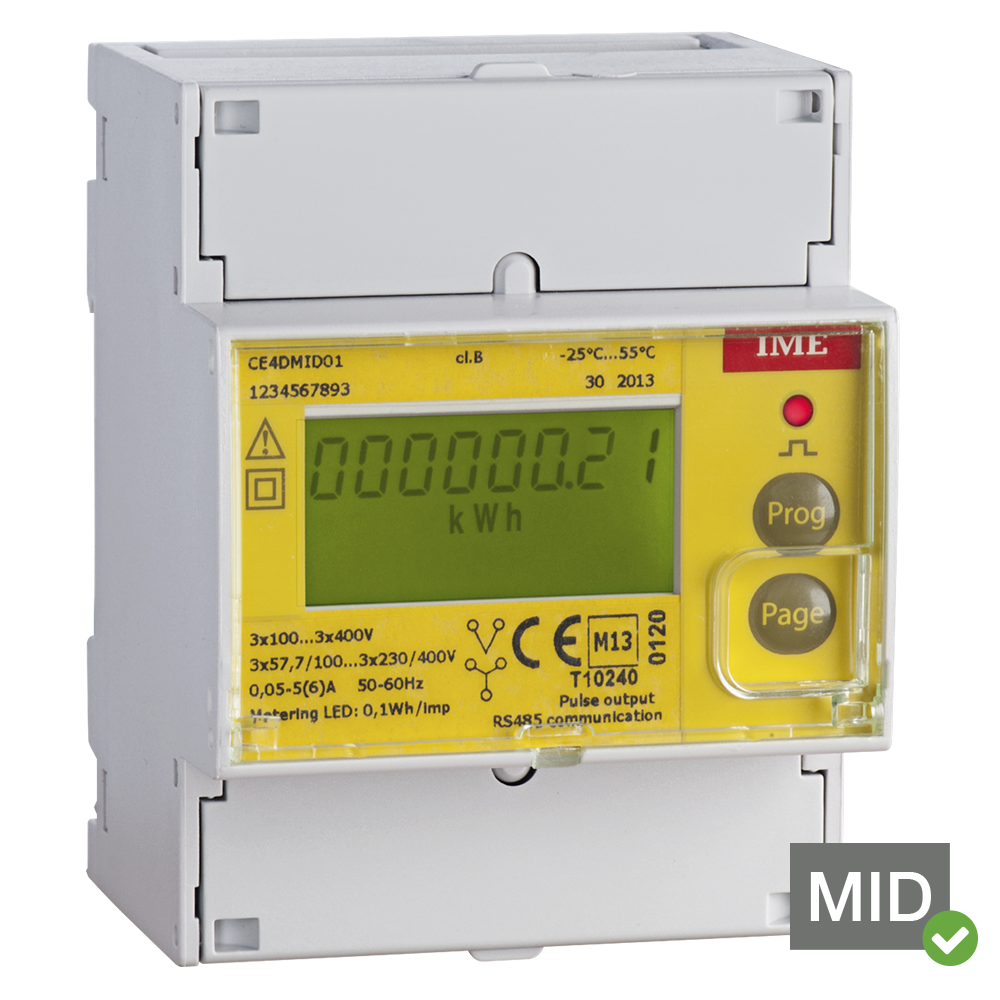

The IME Conto D4-Pt is a 70mm DIN Rail mounted kWh meter with both integrated a pulse output or Modbus RS485 communications as standard -/5A (per phase) current transformer input, on a 230/415V 50/60Hz system.

Three-phase 3 or 4 wire network
Connection by CT/5A
Programmable external
VT and CT ratio

Additional Information

Manufacturer IME (BTicino)

Downloads

Files

IME Conto D4-Pt MID Data sheet Conto D4-Pt MID Data sheet NT742-V12
IME Conto D4-Pt MID Instruction Manual Conto D4-Pt MID Instruction Manual 10781903W 10-11
IME Conto D4-Pt MID Protocol Handbook Conto D4-Pt MID Protocol Handbook
IME Annex D MID Certificate For CONTO Meters
Product Name / Options Price (ex VAT)
CE4DMID01 - Conto D4-Pt MID 5A CT Operated 230Vac - Pulse, RS485/Modbus Call for Prices
