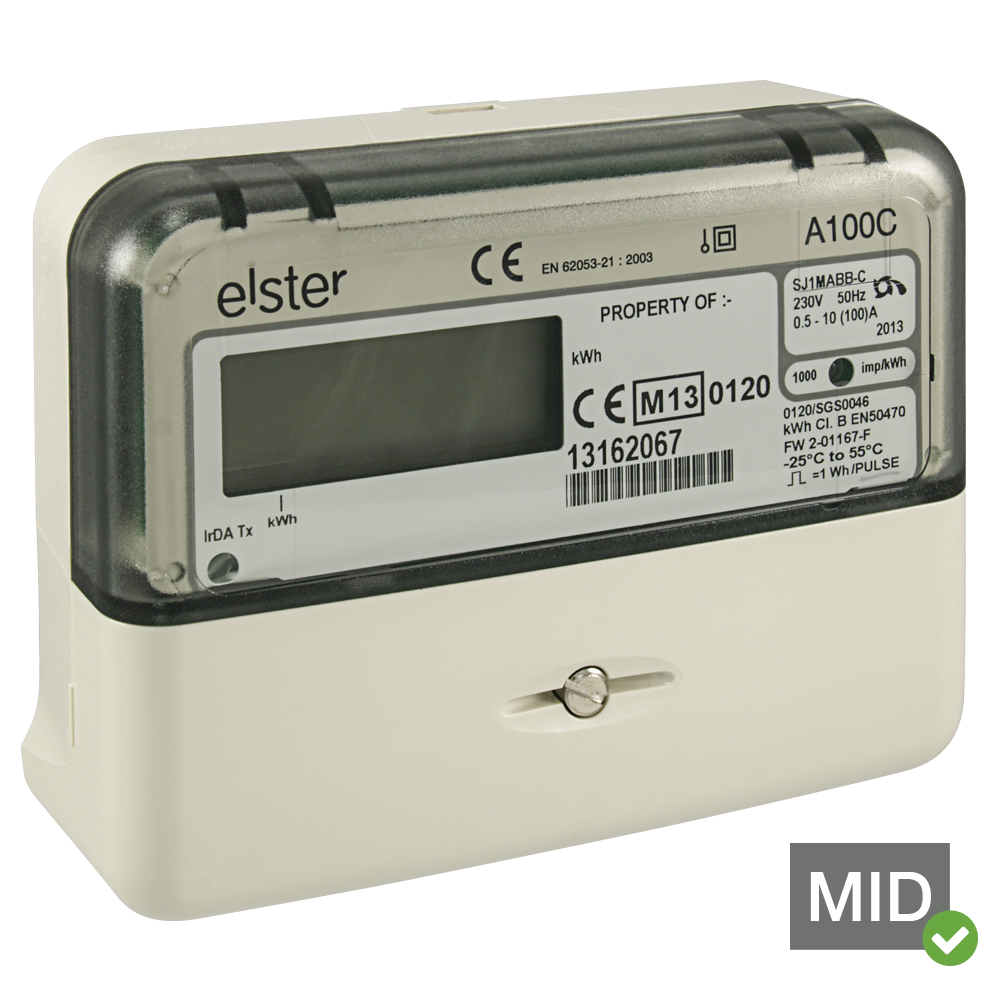

Elster A100C MID Certified Single Phase Class 1 Solar Generation Meter (UK504-035)

Features

This product is no longer available - click the links below to see our range of MID Certified Meters

MID Certified kWh Energy Meters

MID Certified Multifunction Energy Meters


This product is no longer available

  • Accuracy Class 1 or Class 2, EN62053-21
  • Accuracy Class A or Class B, EN 50470-3:2006 (DIN IrDA only)
  • 7 digits. 6 Whole Kwh with 1 decimal point.
  • kWh import
  • Large digit (9.8mm) multilingual display with chevron information indication
  • Extensive security data Communications as standard
  • 12kV impulse withstand
  • High security, compact design
  • Permanently fixed main cover
  • IP53 in accordance with IEC 60529:1989

Details

This product is no longer available - click the links below to see our range of MID Certified Meters

MID Certified kWh Energy Meters

MID Certified Multifunction Energy Meters


This product is no longer available

The Elster A100C is housed in an extremely compact case. The meter offers one or two rates and can be used for import only or import/export for domestic small-scale generation sites. The Elster A100C can be a simple import meter or for import/export, domestic or small-scale generation sites. The meter offers one or two rate operation.

The liquid crystal display has large (9.8mm), high contrast digits that can be viewed from a wide-angle. Chevrons and multilingual legends on the nameplate identify the values being displayed.

To enhance security, the main meter cover is permanently secured to the base during the manufacturing process. Security features include reverse run energy total and count; power fail and elapsed time count; hours in anti-creep, hours in rate 1 and rate 2 and hours since last power uptime. These are stored as security data and can be included as part of the display sequence.

The successful range of A100C meters from Elster Metering Systems provides a cost-effective solution for one or two rate domestic applications. The meter is housed in an extremely compact case. To enhance security, the main meter cover ispermanently secured to the base during the manufacturing process.

The meter offers high security and detects many of the most commonly used tamper techniques. The security data can be included as part of the display sequence and read via the optical communications port. The A100C has the option of IrDA or optical IEC 62056-21 communications. Both methods of communication allow the meter registers and security data to be read electronically from a laptop or hand-held device, greatly reducing the possibility of manual meter reading errors.

The A100C conforms to:
  • The general requirements and particular requirements of EN 50470 Parts 1 & 3, and complies with Class M2 Mechanical environment and Class E2 Electromagnetic Environment.
  • IEC 62053 - 21 kWh, Class 1 or 2 Static
  • BS 7856 Dimensional Requirements (BS meter) DIN 43857
  • Dimensional Requirements (DIN meter)
  • EN 50470 - 3 kWh Class A or B (DIN IrDA meter only)
  • EC Directive 2004/22/EC (MID) Class A or B (DIN IrDA meter only)
The degree of ingress protection is to IP53, IEC 60529:1989 Meters are marked with the European CE Mark, in accordance with the Marking Directive 93/68/EEC to indicate compliance with the requirements of the EMC Directive 89/336/EEC. Variables of the A100C are approved by the Office of Gas and Electricity Markets (OFGEM) in compliance with European and British metering legislation (Approval Number 984).

These are identified in the model code. Other variants will be approved by International Authorities in line with local requirements

Additional Information

Manufacturer Elster
