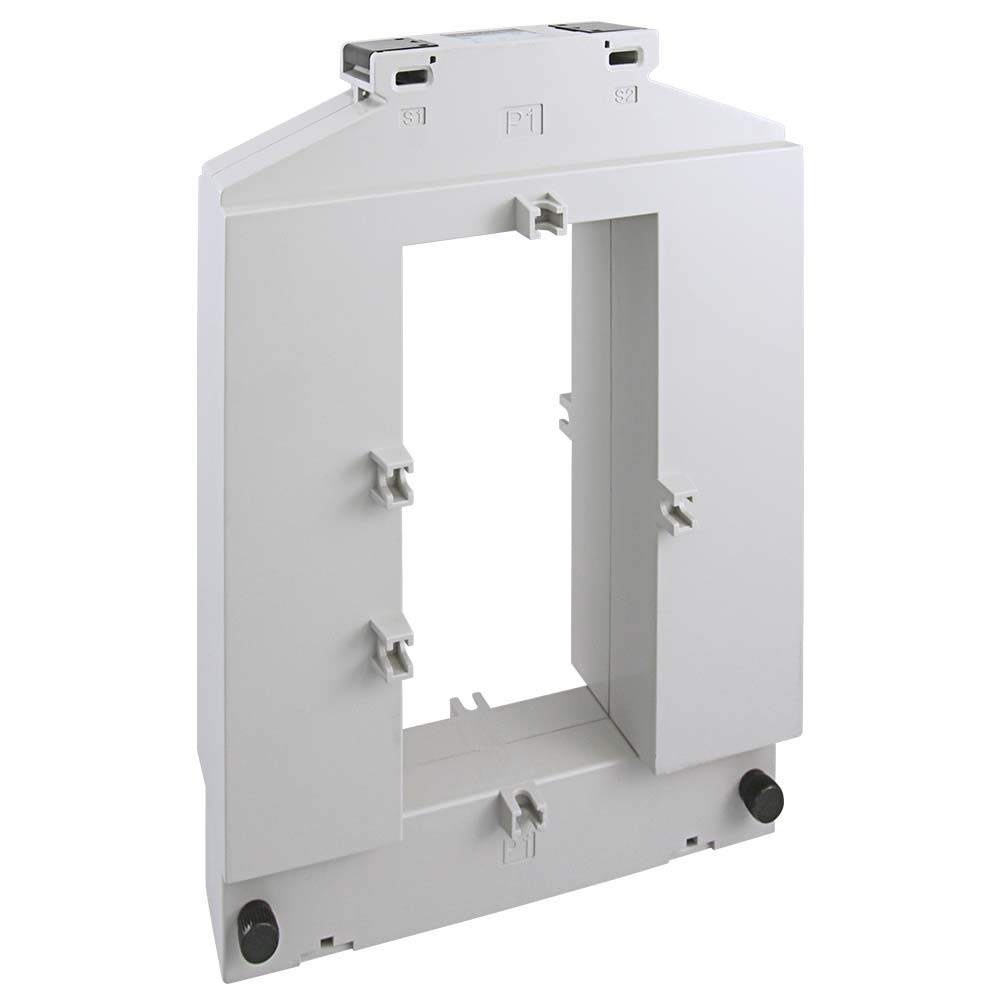

Rayleigh Instruments RI-CTS816 Split Core Measuring CT

Features

  • From 2000A to 5000A Primary currents
  • 5A or 1A Secondary output
  • 186mm width
  • 81 x 160.5mm aperture

Details

The RI-CTS816 Series forms part of a large family of split-core single-phase moulded case current transformers from Rayleigh Instruments.

These transformers are suitable for monitoring current flow in commercial, industrial or utility applications. They are designed to connect any standard metering or relay product requiring a 5A or 1A output and are available with Primary current input ranges from 2000A to 5000A.

The RI-CTS816 Series have been designed for ease of installation into existing plants where removal of busbars or cable lugs is impractical. They also have clear markings moulded into the case to indicate the correct direction of primary current flow to minimise installation errors.

Additional Information

Manufacturer Rayleigh Instruments
Product Name / Options Price (ex VAT)
Call our Sales Team for Model Options and Prices - 01245 428500 Call for Prices
