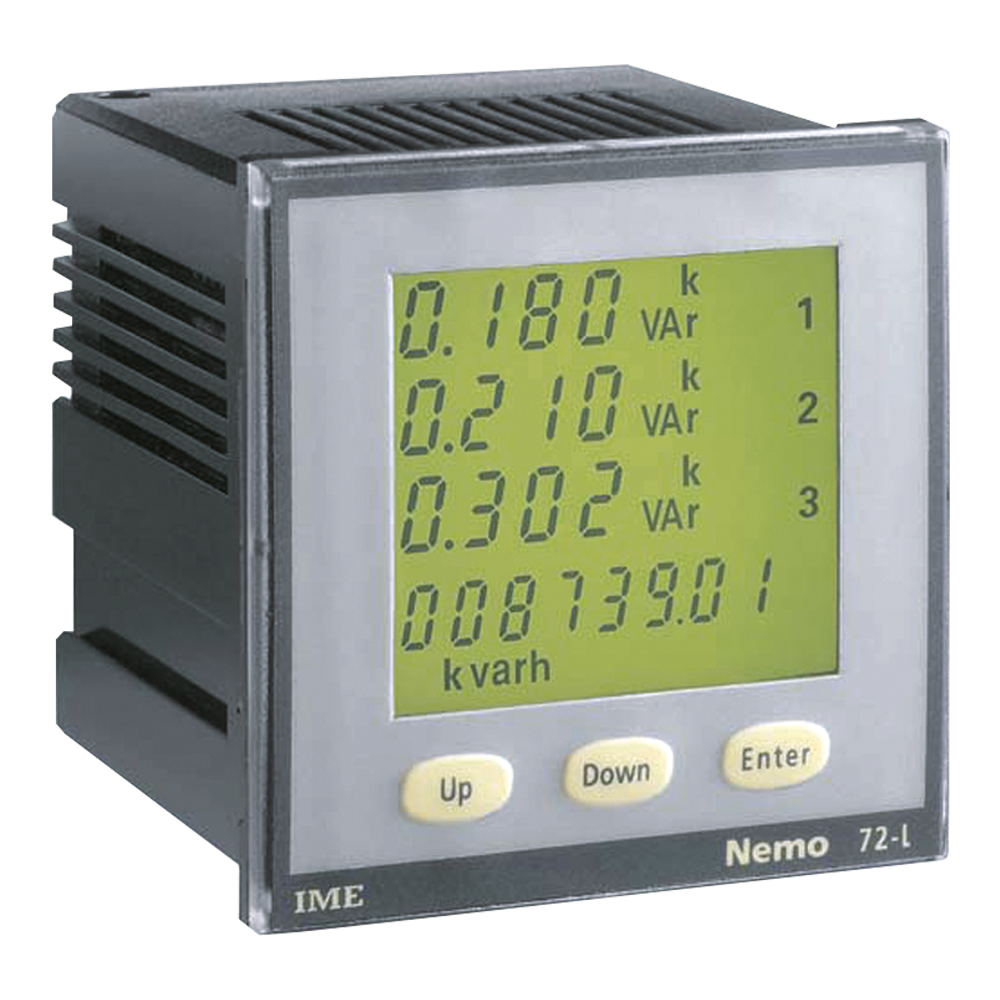

IME Nemo 72-L Panel Mounted Multifunction Meter Single and Three Phase Network with Current Transformer Connection 5A or 1A

Features

This product is no longer available

  • 72 x 72mm panel mounting meter
  • Single-phase network 50...290V
  • Three-phase network 80...500V (phase - phase)
  • Current Transformer Input :- Current rating In: 5a or 1a
  • Active energy class 1 (EN62053-21)
  • Reactive energy class 2 (EN62053-23)
  • Voltage, Current, Neutral current, Average current, Peak current (resettable), Frequency, Active and reactive apparent power, Phase active and reactive apparent power, Average power, Peak power (resettable), Power factor, Partial active energy (resettable), Hours run, Phase sequence diagnostics
  • Integrated Communication Protocols are *Pulsed output or *RS485 Modbus RTU (*depending on model ordered)
  • True RMS value measurement
  • External CT and VT programmable (External CT ratio: 1...9999) - (External VT ratio: 1...10,0)
  • Programmable voltage transformer ratio
  • Auxillary Supply - Rated value Uaux ac: 48 - 115 – 230 e 240v

Details

This product is no longer available

The IME Nemo 72-L has a 72x72mm Panel Mounted Multifunction Meter. which can work across a single and three phase network.

Please specify when ordering the following attributes

Pulsed Output Or RS485/Modbus RTU Communication
1A or 5A CT Input
Auxillary Voltage 230/240V or 115Vac or 20...150Vac


INPUT
  • Single-phase network, three-phase network 3 and 4-wire
  • Three-phase voltage: 80...500v (phase-phase)
  • Single-phase voltage: 50...290v
  • Current rating In: 5a or 1a
  • Continuous overload: 1,2In
  • Instantaneous overload: 20In/0,5 seconds
  • Connection with external dedicated current transformer
  • Inputs have a common point
  • Frequency rating fn: 50Hz
  • Tolerance: 47...63Hz
  • Type of measurement: true RMS
  • Harmonic content: up to the 16 harmonic
  • Voltage rated burden: ≤ 1va (each phase)
  • Current rated burden: ≤ 0,5va (each phase)
AUXILIARY SUPPLY
  • Rated value Uaux ac: 48 - 115 – 230 e 240v
  • Tolerance: 0,85…1,1Uaux - 40...60v (Uaux 48v)
  • Rated frequency: 50Hz
  • Working frequency: 47…63Hz
  • Rated burden: ≤ 5va – 2,5W
  • Rated value Uaux dc: 20...150vdc
  • Rated burden: ≤ 5W
  • Protected against incorrect polarity
OUTPUTS
  • ENERGY PULSES
  • Optorelay with potential-free SPST-NO contact
  • Contact ranges: 110vdc/ac 50ma
  • Weight pulses: selectable 1 imp/10Wh – 100Wh – 1kWh – 10kWh – 100kWh
  • Duration pulse: selectable 50 – 100 – 200 – 300ms
  • RS485 COMMUNICATION
  • Galvanically insulated from input and aux. supply
  • Standard: RS485 – 3-wire
  • Transmission: serial asynchronous
  • Protocol: compatible JBUS/MODBUS
  • Address: 1...255
  • Bit number: 8
  • Stop bit: 1
  • Parity bit: none
  • Baud rate: 4800 - 9600 – 19200 bit/seconds
  • Required response time to request: ≤ 200ms
  • Meters that can be connected on the bus: 32 (up to 255 with RS485 repeater)
  • Highest distance from supervisor: 1200m

Additional Information

Manufacturer IME (BTicino)
Product Name / Options Price (ex VAT)
MF7FTU0036 (1A 230Vac Pulse) Call for Prices

MF7FTU0046 (5A 230vac Pulse) Call for Prices

MF7FTU004H (5A 20-150Vdc Pulsed) Call for Prices

MF7FT40036 (1A 230Vac Modbus) Call for Prices

MF7FT40043 (5A 115Vac Modbus) Call for Prices

MF7FT40046 (5A 230Vac Modbus) Call for Prices
