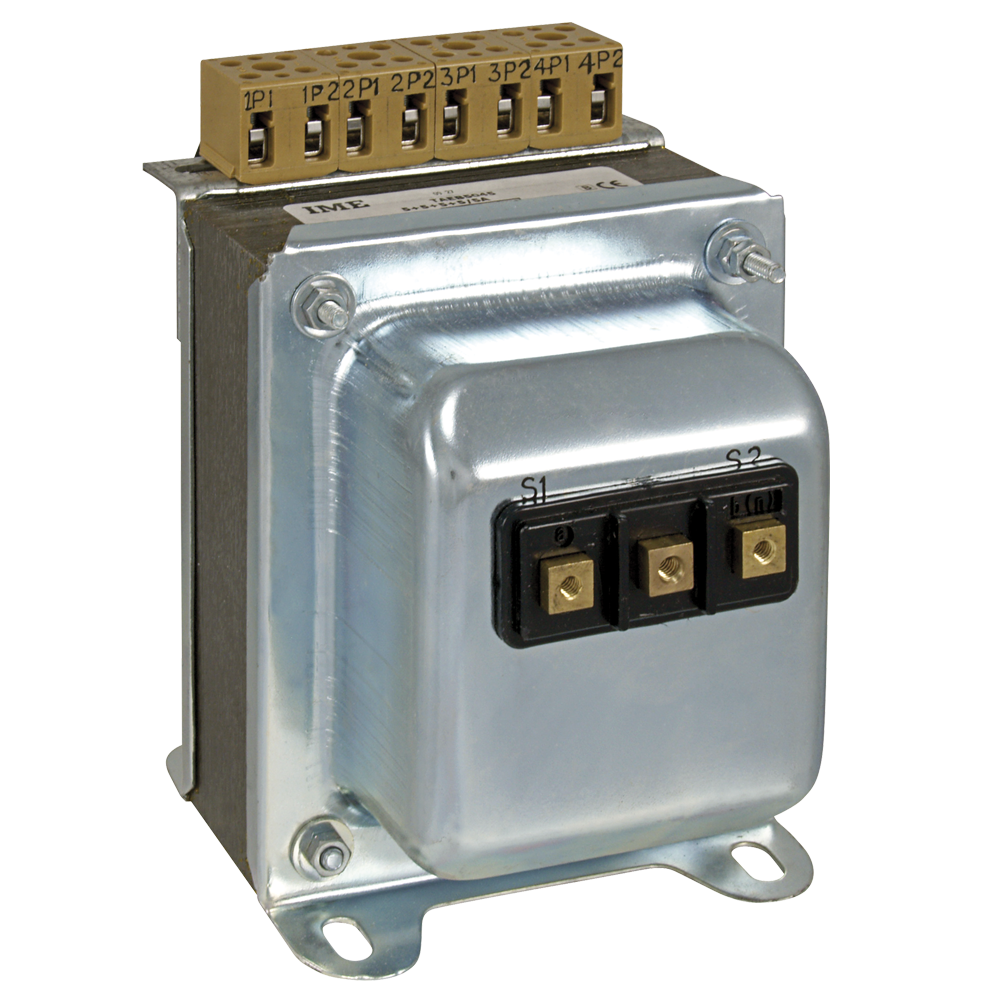

IME BTA2 TAEB Primary Winding Summation Current Transformer (From 2 to 6 Equal Primary Inputs)

Features

  • Summation current transformer (formerly BTA2)
  • Summates from 2 to 6 equal inputs (1A or 5A Secondary)
  • Accuracy : class 0.5
  • Unequal inputs on request

Details

A range of current transformers to summate currents from various current transformer secondary sources and provide a proportional current output. The TAEB may be used to summate CT inputs of the same, or different, ratios. When summating three phase circuits, it is necessary to summate like phases ie L1-L1, L2-L2, L3-L3.

From 2 to 6 single-phase input current summation transformer. It effects the vectorial sum of the currents of many lines in just one voltage system. It is essential when the main C.T. ratios are not the same.

Primary winding
Primary currents 1 - 5A
Secondary currents 1 - 5A
Accuracy : class 0.5
Rated burden : 40VA (2…4 input), 15VA (5…6 input)



HOUSING
Housing material : metal
Protection degree (EN/IEC 60529): IP00 terminals
Mounting : screw type for wall mounting
Weight : ≤ 320g

CONNECTIONS
Primary winding : tightening by nut M4
Secondary winding : tightening by nut M4
Connections label : primary winding P1(K) – P2(L)
secondary winding s1(k) – s2(l)

DIMENSIONS

Additional Information

Manufacturer IME (BTicino)

Downloads

Product Name / Options Price (ex VAT)
IME BTA2 TAEB5025 Summation Current Transformer With 2 Inputs 5+5A Input With Secondary 5A Call for Prices

IME BTA2 TAEB5035 Summation Current Transformer With 3 Inputs 5+5+5A Input With Secondary 5A Call for Prices

IME BTA2 TAEB5045 Summation Current Transformer With 4 Inputs 5+5+5+5A Input With Secondary 5A Call for Prices

IME BTA2 TAEB5055 Summation Current Transformer With 5 Inputs 5+5+5+5+5A Input With Secondary 5A Call for Prices
