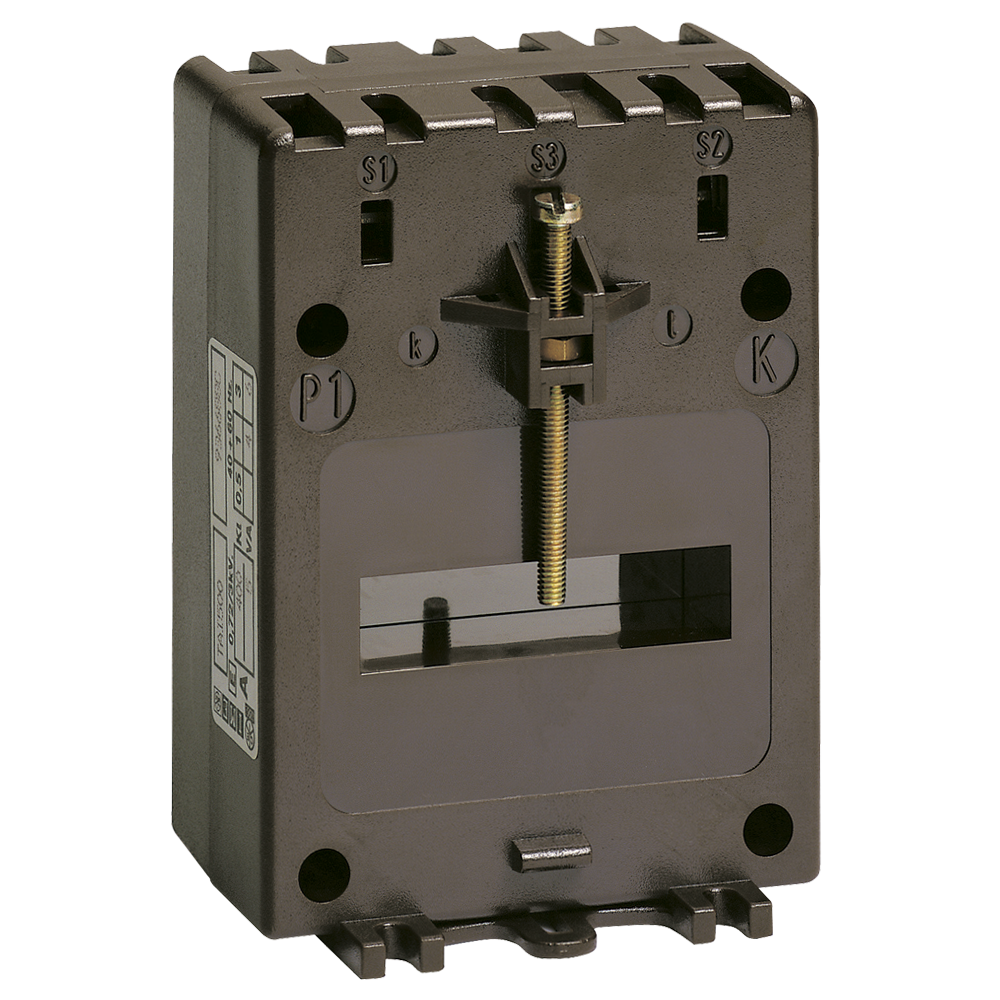

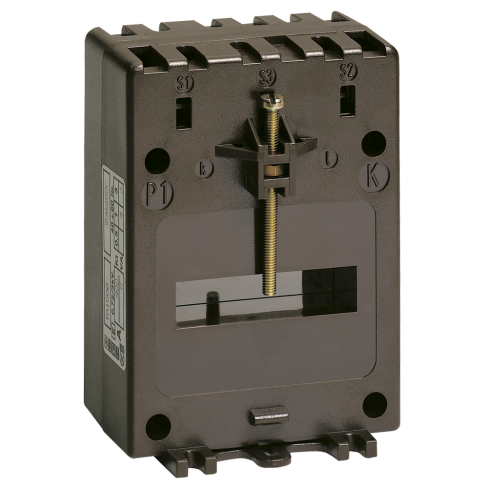

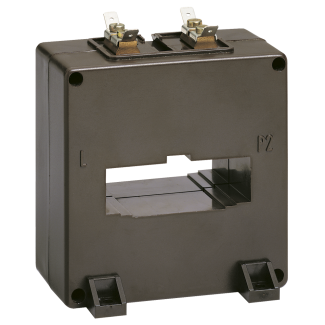

IME TAIH TAI500 Solid Core Single Phase Measuring Current Transformer

Features

This product is no longer available - see bottom of page for alternative

  • Measuring current transformer (formerly TAI500)
  • Ranges: 250 to 1200A (1A or 5A Secondary)
  • Busbar window 51 x 12.5mm
  • Moulded terminal cover
  • Moulded DIN rail clip/mounting feet
  • Secondary terminals M4 screws and 6.3 x 0.8mm fast-on
  • Weight 450g

Details

{{widget type="cms/widget_block" template="cms/widget/static_block/default.phtml" block_id="54"}} Measuring current transformer with moulded fixing feet/DIN rail clip and integral terminal cover. The TAIH current transformer is supplied with busbar mounting bracket, has a 51x12.5mm aperture, and is available with primary currents from 250 to 1200A.

Please note :- the replacement model would be the TA540 which had allowed the same busbar dimensions
  • Single-phase current transformer
  • Passing bus bar primary
  • Primary current 250...1200A
  • Secondary current 1 - 5A
  • Accuracy class: cl.0,5 - 1 -3
  • Rated burden 2...20VA


HOUSING
  • Housing material: self extinguishing polycarbonate
  • Protection degree (EN60529): IP20
  • Option: sealable terminal cover
  • Mounting: snap-on 35mm rail, screw type for wall mounting
  • Rail type: top hat TH35-15 (EN60715)
  • Weight: 450 grams
CONNECTIONS
  • Primary winding: passing cable
  • Max. tightening torque for passing primary bar fixing screws: 0,2Nm
  • Secondary winding: 2 screw terminals + 4 fast-ons
  • Screw terminals: max 2 separated wires 2,5mm
  • Fast-ons: 6,3x0,8mm
  • Connections label: primary winding P1(K) – P2(L), secondary winding s1(k) – s2(l)2

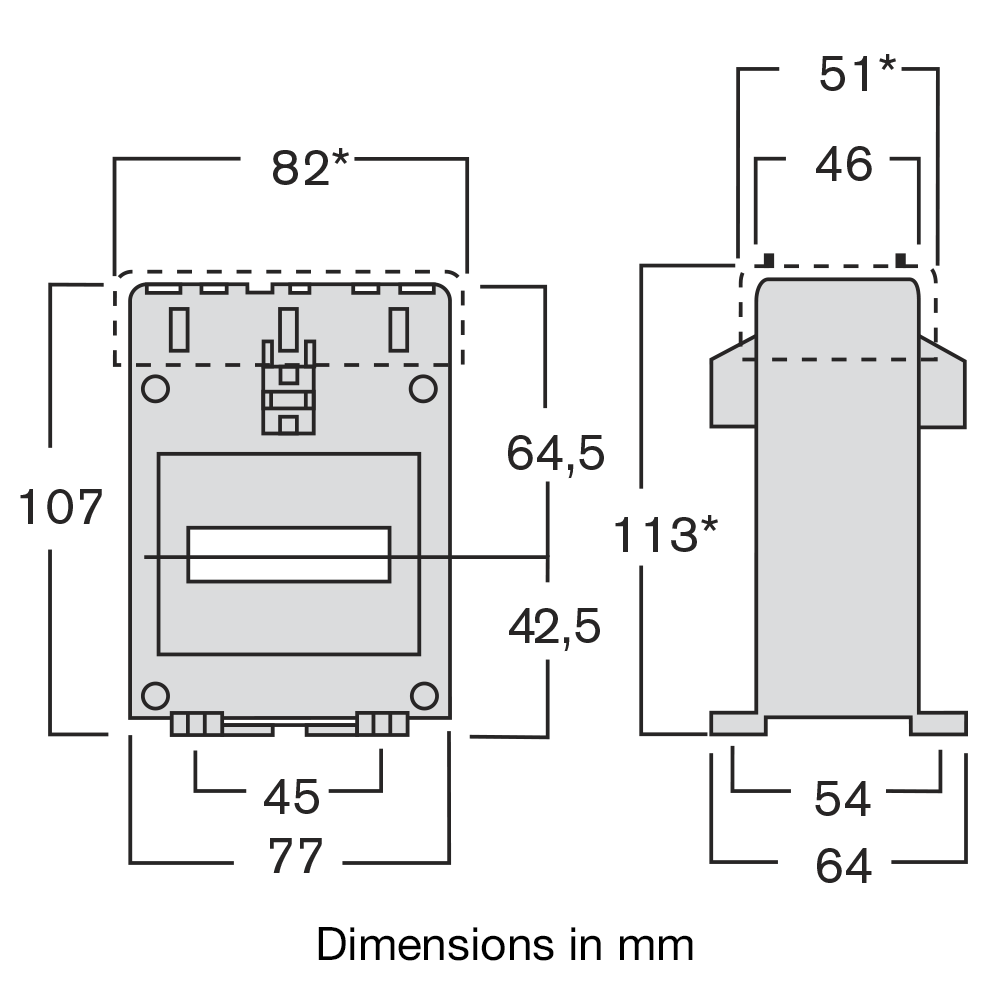

DIMENSIONS

Downloads

Files

TAIH Data Sheet TAIH Data Sheet NT566-04
Product Name / Options Price (ex VAT)
IME TAI500 TAIH50C400 Current Transformer 400/5A Call for Prices

IME TAI500 TAIH50C500 Current Transformer 500/5A Call for Prices

IME TAI500 TAIH50C800 Current Transformer 800/5A Call for Prices

IME TAI500 TAIH50D100 Current Transformer 1000/5A Call for Prices

This particular product is being discontinued by the manufacturer - please contact the sales office on 01245 428500 or email sales@rayleigh.com for a new alternative. The models shown are what is left in stock. Call for Prices
