IME TASN (formerly TAS81) Single Phase Current Transformer

More Views

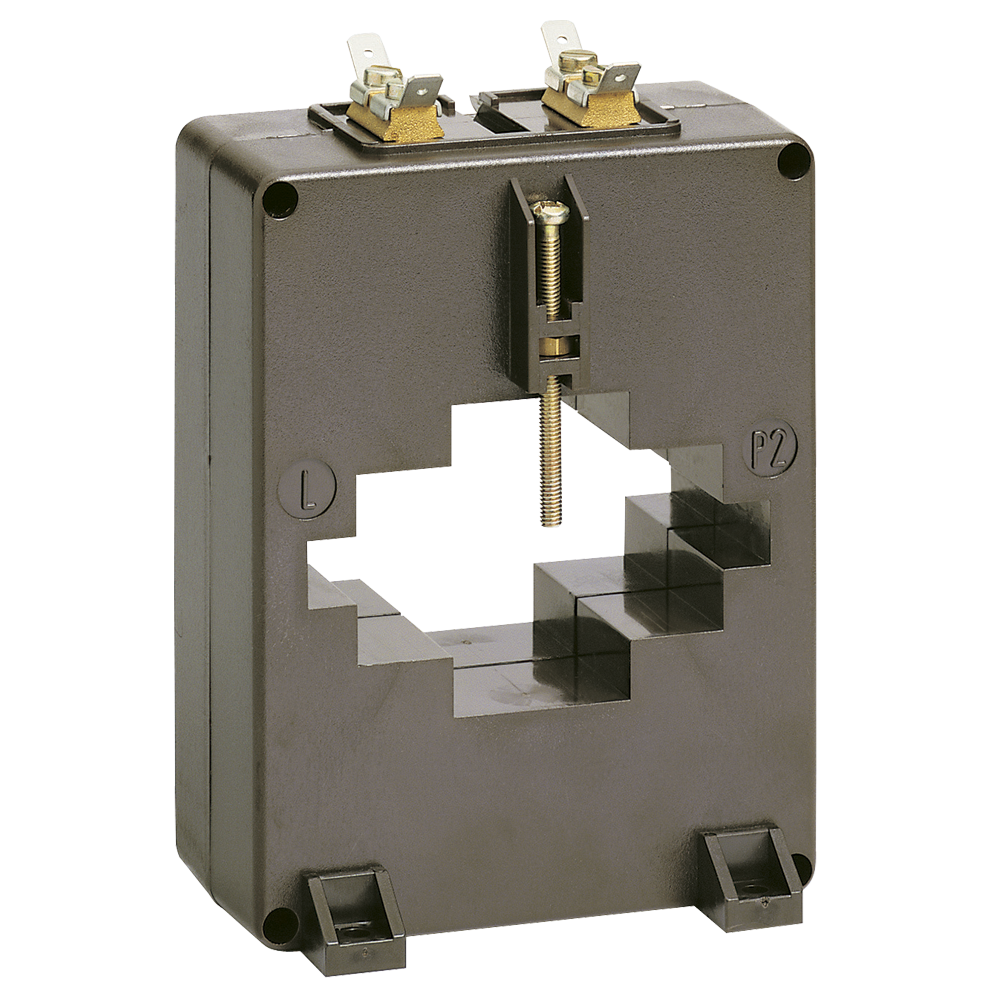

IME TASN (formerly TAS81) Single Phase Current Transformer

Features

Measuring current transformer (formerly TAS81)
Ranges: 400 to 2500A (1A or 5A Secondary)
Busbar window 81 x 11mm, 64 x 31mm, 31 x 51mm
Supplied with busbar mounting bracket
Secondary terminals M4 screws and 6.3 x 0.8mm fast-on
Optional sealable terminal cover (ATACOP03)
Weight 470g

- | Add to Compare

Details

Measuring current transformer supplied with busbar mounting bracket. The TASN current transformer has an 81 x 11, 64 x 31 and 31 x 51mm aperture and is available with primary currents from 400 to 2500A.

OPTIONS

Terminal cover
Fixing feet
Double CT ratio (selectable) - Available for certain ratios only

Additional Information

Manufacturer	IME (BTicino)

Downloads

Files

TASN Data Sheet

TASN Data Sheet NT573-05

Product Name / Options	Price (ex VAT)
TASN50C400 (400/5A)	Call for Prices
TASN50C600 (600/5A)	Call for Prices
TASN50C800 (800/5A)	Call for Prices
TASN50D100 (1000/5A)	Call for Prices
TASN50D120 (1200/5A)	Call for Prices
TASN50D125 (1250/5A)	Call for Prices
TASN50D150 (1500/5A)	Call for Prices
TASN50D160 (1600/5A)	Call for Prices
TASN50D200 (2000/5A)	Call for Prices
TASN50D250 (2500/5A)	Call for Prices
TASN10C600 (600/1A)	Call for Prices
TASN10C800 (800/1A)	Call for Prices
TASN10D100 (1000/1A)	Call for Prices
TASN10D120 (1200/1A)	Call for Prices
TASN10D150 (1500/1A)	Call for Prices
TASN10D160 (1600/1A)	Call for Prices
TASN10D200 (2000/1A)	Call for Prices
