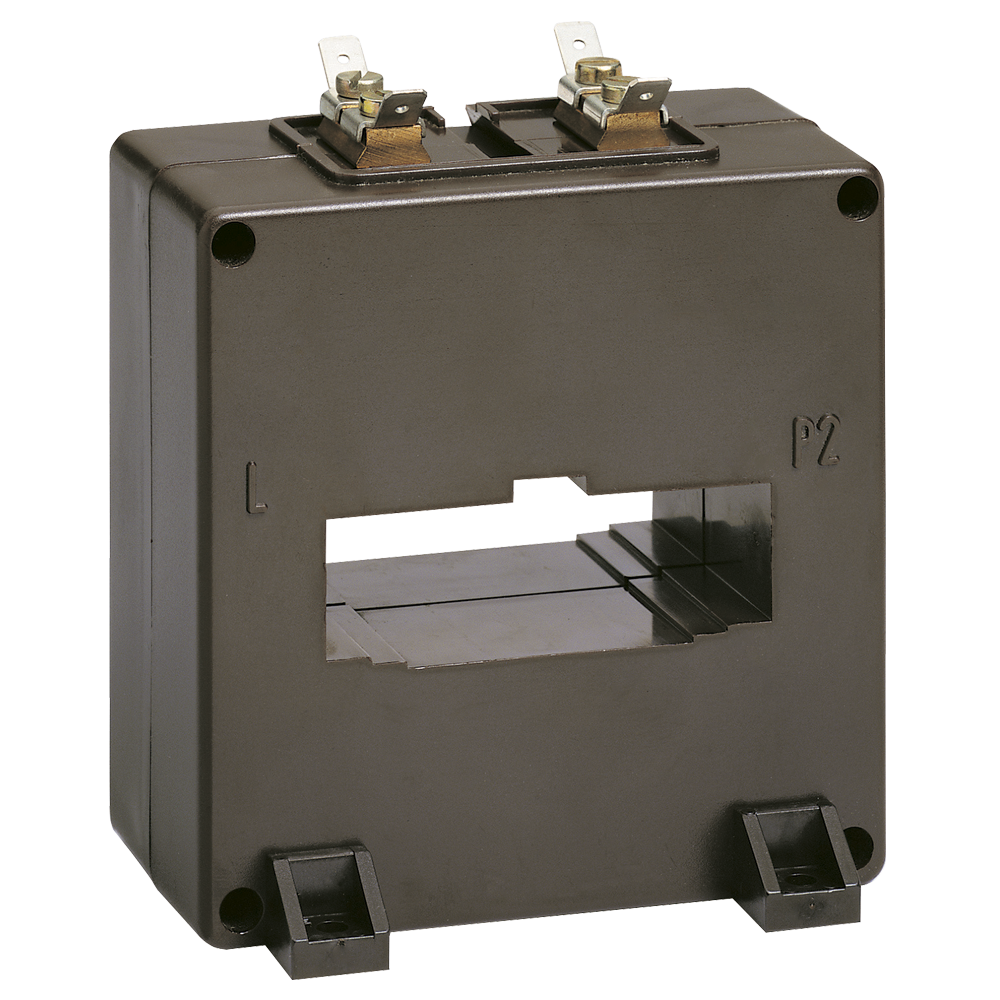

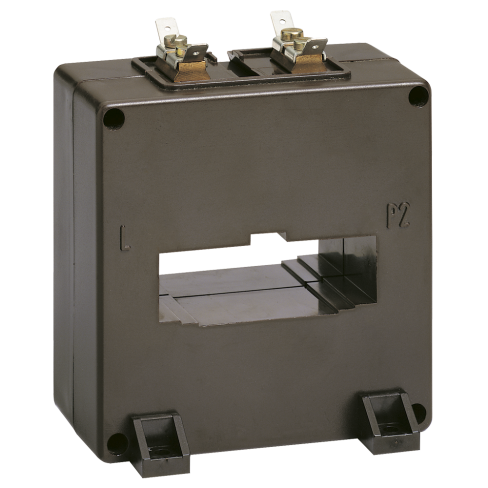

IME TASH TAS63 Single Phase Solid Core Measuring Current Transformer

Features

  • Measuring and protection current transformer (formerly TAS63)
  • Ranges: 150 to 1600A (1A or 5A Secondary)
  • Busbar window 64 x 19mm, 51 x 20mm, 41 x 21mm or 10 x 24mm
  • Secondary terminals M4 screws and 6.3 x 0.8mm fast-on
  • Supplied with busbar mounting bracket
  • Optional sealable terminal cover (ATACOP03)
  • Weight 720g

Details

A measuring current transformer supplied with busbar mounting bracket. The TASH transformer has a 64 x 19mm, 51 x 20mm, 41 x 21mm or 10 x 24mm aperture and is available with primary currents from 150 to 1600A.



HOUSING
  • Housing material: self extinguishing polycarbonate
  • Protection degree (EN60529): IP00 terminals (IP20 with sealable terminal cover),
  • IP20 housing
  • Option: sealable terminal cover
  • Weight: 720 grams

CONNECTIONS
  • Primary winding: passing bus bar
  • Max. tightening torque for passing primary bar fixing screws: 0,2Nm
  • Secondary winding: tightening by nut M4
  • Connections label: primary winding P1(K) – P2(L), secondary winding s1(k) – s2(l)

Additional Information

Manufacturer IME (BTicino)

Downloads

Files

TASH Data Sheet TASH Data Sheet NT567-06
Product Name / Options Price (ex VAT)
TASH50C400 (400/5A) Call for Prices

TASH50C500 (500/5A) Call for Prices

TASH50C600 (600/5A) Call for Prices

TASH50C800 (800/5A) Call for Prices

TASH50D100 (1000/5A) Call for Prices

TASH50D120 (1200/5A) Call for Prices

TASH50D150 (1500/5A) Call for Prices
