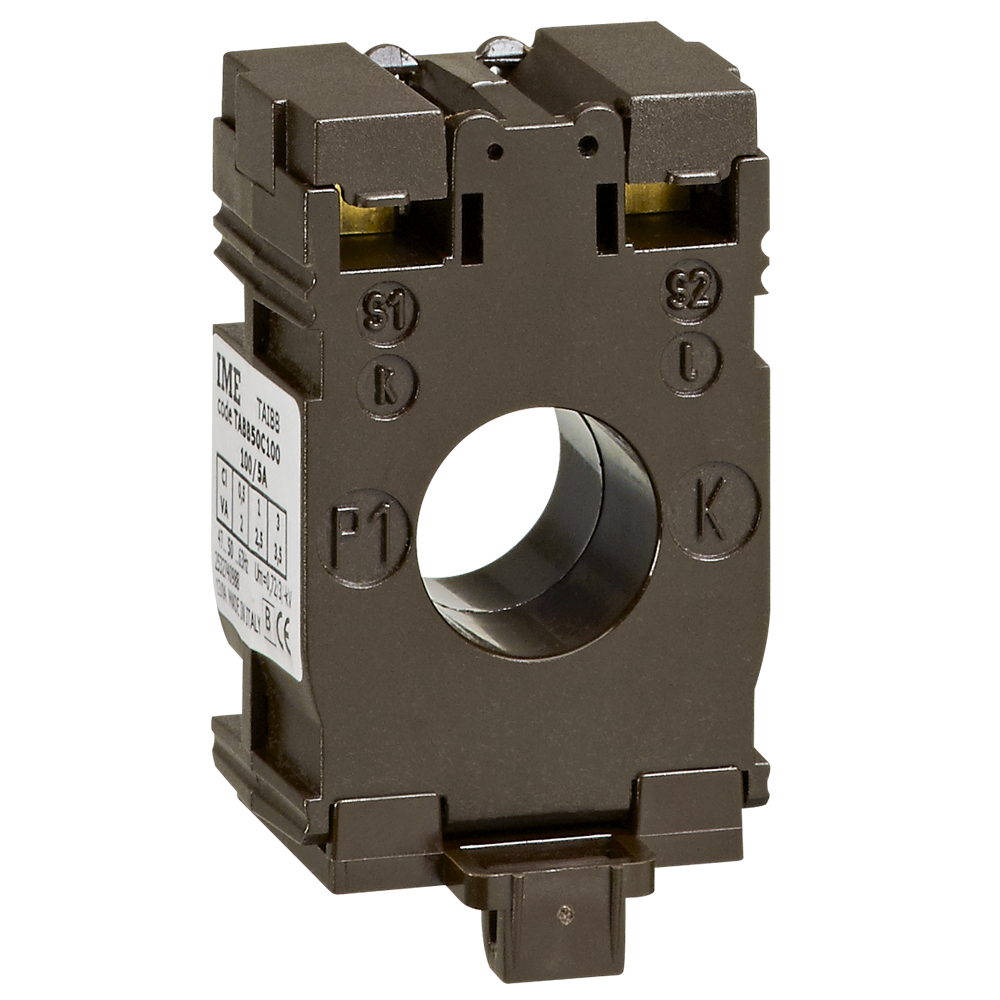

A primary winding solid core measuring current transformer, supplied with fixing feet/DIN rail clip and integral hinged terminal cover. This TAIBB current transformer has a 21mm diameter aperture and is available with primary currents from 40 to 300A.
HOUSING
- Housing material: self extinguishing polycarbonate
- Protection degree (EN60529): IP40 housing - IP20 terminals
- Option: sealable terminal cover
- Mounting: snap-on 35mm rail, screw type for wall mounting
- Rail type: top hat TH35-15 (EN60715)
- Weight: 180 grams (Max.)
CONNECTIONS
- Primary winding: passing cable
- Max. tightening torque for passing primary bar fixing screws: 0,2Nm
- Secondary winding: screw terminals, max 2 separated wires 2,5mm
- Connections label: primary winding P1(K) – P2(L), secondary winding s1(k) – s2(l)
DIMENSIONS
