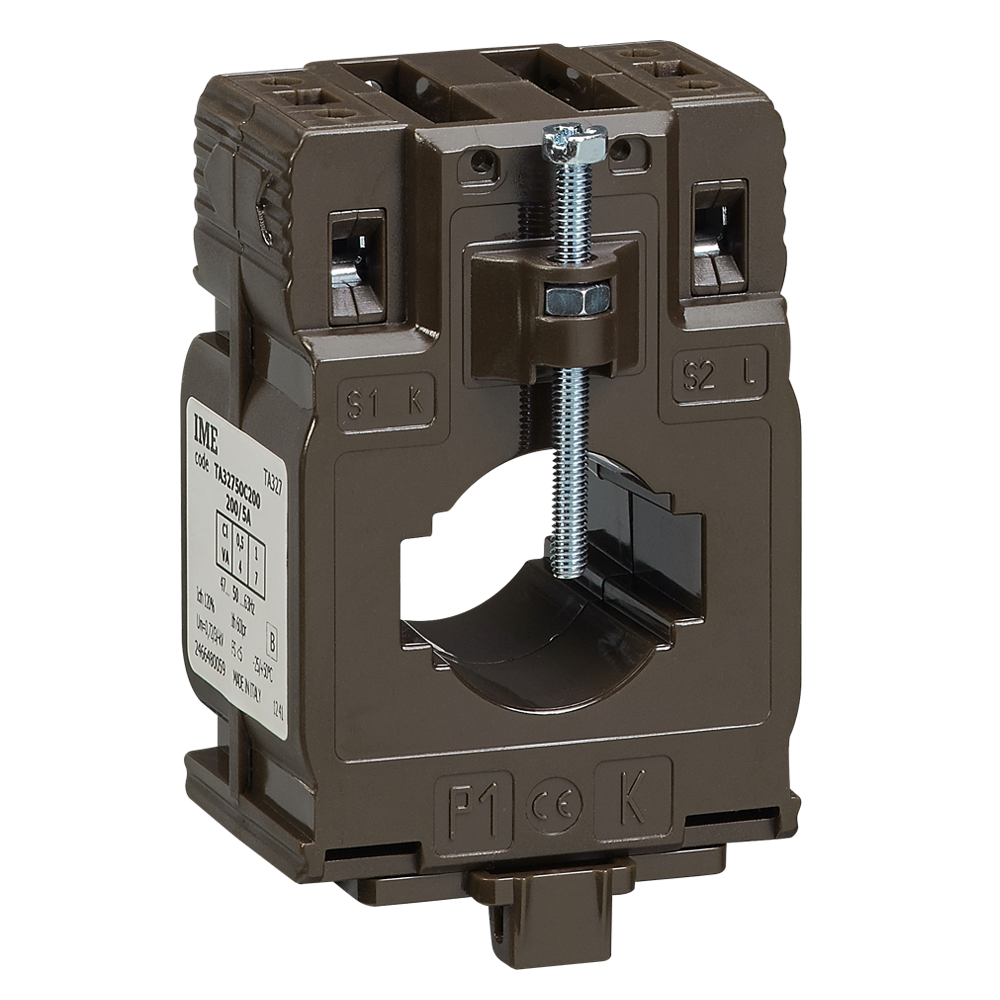

IME TA327 Solid Core Single Phase Measuring Current Transformer

Features

  • Passing cable/ bus bar primary
  • Ranges: 50 to 600A (5A Secondary), 50 to 600A (1A Secondary)
  • Busbar window 32.5x10.5mm, 25.5x15.5mm & ø 27mm Diameter able aperture
  • Accuracy class: cl. 0,5 - 1 - 3
  • Rated burden 1,5...20VA
  • Moulded terminal cover
  • Din rail mounting clip supplied

Technical Specifications
  • Secondary terminals M4 screws and 6.3 x 0.8mm fast-on
  • Weight 260g
  • Conforms to EN/IEC 61869-1, 61869-2

Optional
  • Optional sealable terminal cover (ATACOP13)

Details

A primary winding solid core measuring current transformer, supplied with fixing feet/DIN rail clip and integral hinged terminal cover. The TA327 current transformer is supplied with busbar mounting bracket, has a 27mm diameter (32.5x10.5mm & 25.5x15.5mm) aperture, and is available with primary currents from 50 to 600A.

Please note the TA327 Series replaced the old TAIC (TAI230) Series



HOUSING
  • Housing material: self extinguishing polycarbonate
  • Protection degree (EN60529): IP40 custodia - IP20 morsetti
  • Option: sealable terminal cover
  • Mounting: snap-on 35mm rail, screw type for wall mounting
  • Rail type: top hat TH35-15 (EN60715)
  • Weight: 260 grams (Max.)
CONNECTIONS
PRIMARY
  • Passing cable/bus bar primary
  • Fixing on bar: screws, with insulated caps
  • Suggested tightening torque: 0,2Nm
SECONDARY
  • 4 screw terminals (max. cable section 6mm)+ 2 fast-ons (4,8x0,8)mm
  • Suggested tightening torque: 0,5Nm
  • Suggested tightening max.: 0,8Nm
  • Connections label: primary winding P1(K) – P2(L), secondary winding s1(k) – s2(l)
DIMENSIONS

<

Downloads

Files

TA327 Data Sheet TA327 Data Sheet NT812-02
Product Name / Options Price (ex VAT)
TA32750B500 (50/5A) Call for Prices

TA32750B600 (60/5A) Call for Prices

TA32750B700 (70/5A) Call for Prices

TA32750B750 (75/5A) Call for Prices

TA32750B800 (80/5A) Call for Prices

TA32750C100 (100/5A) Call for Prices

TA32750C120 (120/5A) Call for Prices

TA32750C125 (125/5A) Call for Prices

TA32750C150 (150/5A) Call for Prices

TA32750C160 (160/5A) Call for Prices

TA32750C200 (200/5A) Call for Prices

TA32750C250 (250/5A) Call for Prices

TA32750C300 (300/5A) Call for Prices

TA32750C400 (400/5A) Call for Prices

TA32750C500 (500/5A) Call for Prices

TA32750C600 (600/5A) Call for Prices

TA32710B500 (50/1A) Call for Prices

TA32710B600 (60/1A) Call for Prices

TA32710B700 (70/1A) Call for Prices

TA32710B750 (75/1A) Call for Prices

TA32710B800 (80/1A) Call for Prices

TA32710C100 (100/1A) Call for Prices

TA32710C120 (120/1A) Call for Prices

TA32710C125 (125/1A) Call for Prices

TA32710C150 (150/1A) Call for Prices

TA32710C160 (160/1A) Call for Prices

TA32710C200 (200/1A) Call for Prices

TA32710C250 (250/1A) Call for Prices

TA32710C300 (300/1A) Call for Prices

TA32710C400 (400/1A) Call for Prices

TA32710C500 (500/1A) Call for Prices

TA32710C600 (600/1A) Call for Prices
