  • IME Nemo 96 EC [Basic] Three Phase EASYCONNECT Multifunction Measuring Unit

More Views

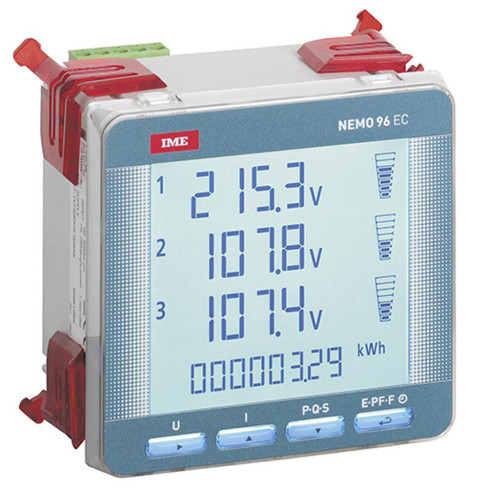

IME Nemo 96 EC [Basic] Three Phase EASYCONNECT Multifunction Measuring Unit

Features

  • DIN 96 panel mounted
  • High-definition backlit LCD display
  • 3-phase, 3-wire unbalanced load operation
  • 1 EASYCONNECT 'quick connector' to Rogowski Coils
  • Modbus or Mbus communication versions
  • Programmable Primary Current
  • Current capacity 630A, 1600A, 3200A, 6300A
  • 2 Tariffs
  • Voltage Range: 3x230/3x400 ±15%
  • Imax =6300A , Vn= 230Vac, auxiliary feeding 196…295V

Details

The Nemo 96 EC Basic models are multifunction instruments for measuring active and reactive energies, positive and negative.

The meters have the IME EASYCONNECT sockets for quick connection of the Rogowski type current transformers (630A/ 1600A/ 3200A/ 6300A versions sold separately).

These instruments are suitable 3N3E networks and have a diagnostic and phase sequence correction function.

Two versions are available:-

  • MF96ORFCDT1 - with Modbus output
  • MF96ORFCMT1 - with MBusus output

Additional Information

Manufacturer IME (BTicino)

Downloads

Product Name / Options Price (ex VAT)
MF96ORFCDT1 - Nemo 96 EC [Basic] (1 x EASYCONNECT Input, Modbus Output) Call for Prices
MF96ORFCMT1 - Nemo 96 EC [Basic] (1 x EASYCONNECT Input, MBus Output) Call for Prices
