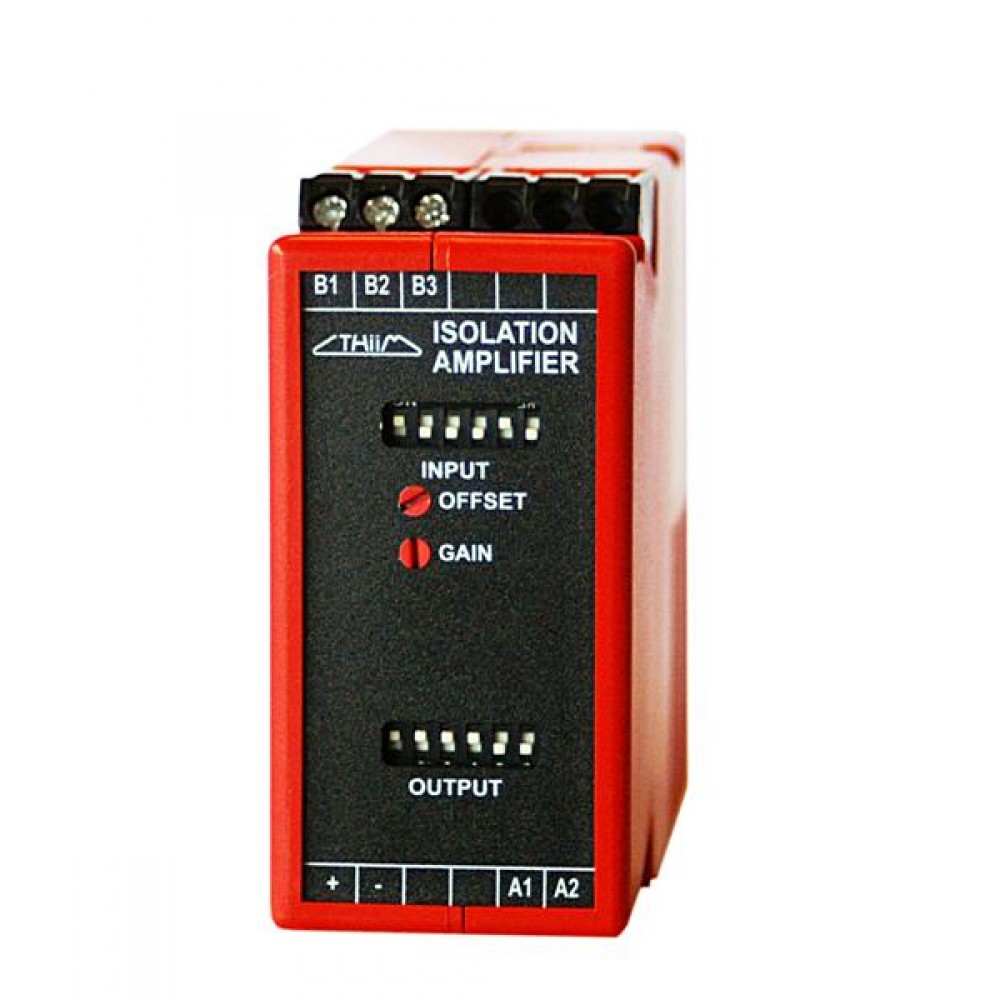

Thiim AISA Isolation Amplifier

Features

  • Galvanic separation > 4kV
  • 8 programmable input ranges
  • 8 programmable output ranges
  • Excellent linearity
  • Small outlines

Details

The isolation amplifier is built with a linear optocoupler. It is designed for galvanic separation and conversion between different standards of analog input and output signals. Linearized optic transmission is used to achieve high accuracy.

Application
To interface between different kinds of analog sensors and receiving instruments, such as indicators, recorders, alarm units and PLCs.

Supply
  • AC and DC 18-360 VDC and 20-264 VAC with isolated switchmode supply
  • AC supply range 24 V (From 20 to 28 V) with transformer 110 V (From 99 to 140 V)
  • 230 V (From 198 to 264 V)
  • 400 V (From 342 to 484 V)
  • Frequency range 45 to 440 Hz (transformer)
  • Power consumption 2.5 VA, 1.1 W

Additional Information

Manufacturer Thiim
Product Name / Options Price (ex VAT)
Thiim AISA-B024-AA3C Analog Isolation Amplifier, 20-28 VAC , Input offset & gain adjustable - 26367 Call for Prices

Thiim AISA-B110-AA3C Analog Isolation Amplifier, 99-140 VAC, Input offset & gain adjustable - 26366 Call for Prices

Thiim AISA-B230-AA3C Analog Isolation Amplifier, 198-264 VAC , Input offset & gain adjustable - 26213 Call for Prices

Thiim AISA-B400-AA3C Analog Isolation Amplifier, 362-484 VAC , Input offset & gain adjustable - 27070 Call for Prices

Thiim AISA-E400-AA3C Analog Isolation Amplifier, 18-360 VDC and 20-264VAC , Input offset & gain adjustable - 43617 Call for Prices

Thiim AISA-B024-DA3C Analog Isolation Amplifier, 20-28 VAC, Input offset & gain fixed - 26181 Call for Prices

Thiim AISA-B110-DA3C Analog Isolation Amplifier, 99-140 VAC, Input offset & gain fixed - 26218 Call for Prices

Thiim AISA-B230-DA3C Analog Isolation Amplifier, 198-264 VAC, Input offset & gain fixed - 25346 Call for Prices

Thiim AISA-E400-DA3C Analog Isolation Amplifier, 18-360 VDC and 20-264VAC , Input offset & gain fixed - 43621 Call for Prices
