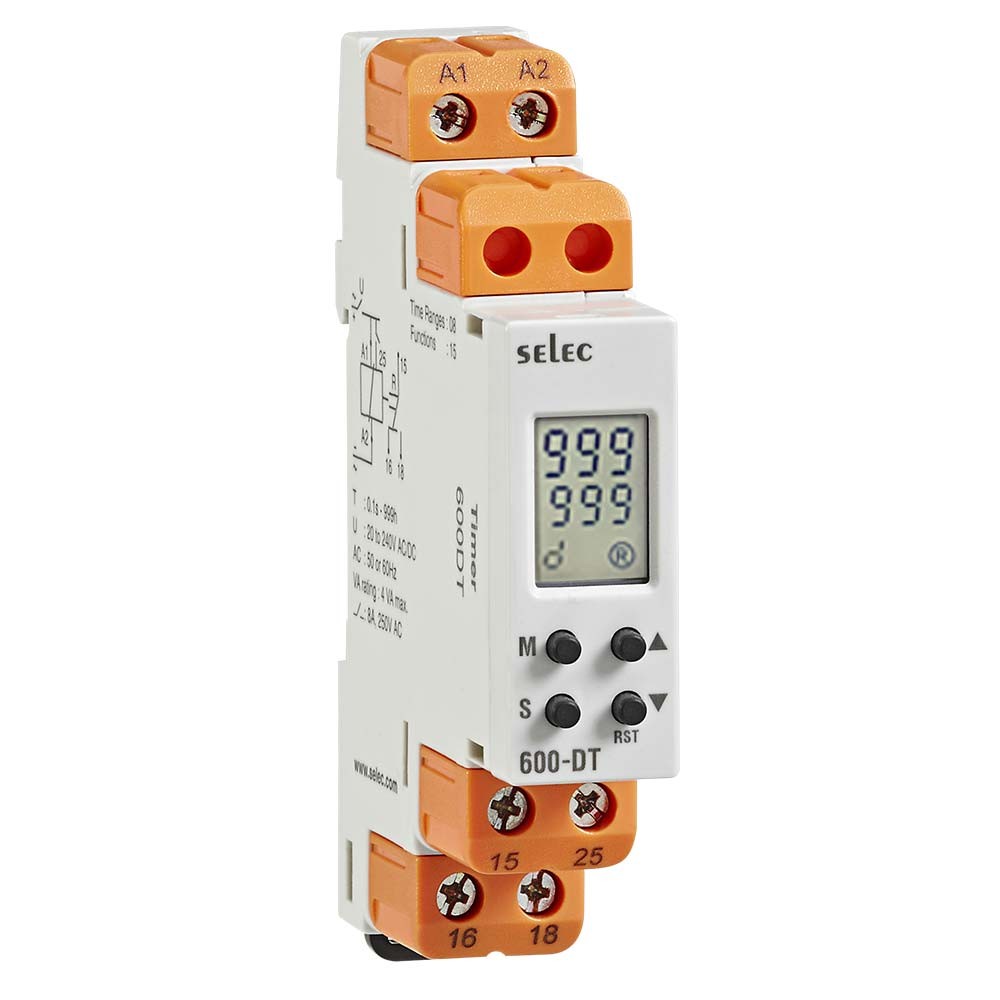

Selec 600DT - Digital Electronic Multifunction Timer

Features

  • 17.5mm DIN rail mounting enclosure
  • LCD Display
  • 15 Function
  • 8 Time ranges
  • Supply voltage 20-240Vac/dc
  • 1 changeover contact

Details

Selec 600DT Multifunction Timers can be used for electrical appliances, control of lights, heating, motors, pumps and fans and have up to 15 Functions and 8 Time Ranges to meet your customer demands.

Relay Contact 1 C/O SPDT
Range 9.99/99.9/999 Sec, 9.59 minsec, 99.9/999 min, 9.59 hr : min, 99.9/999 hr
Operating Modes On Delay, Interval, Asymmetrical cyclic OFF first, Asymmetrical cyclic ON first, Cyclic equal OFF first, Cyclic equal ON first, Pulse output, Delay on break, Delay on make / break, Interval after break, Single shot, Retriggerable single shot, Latching relay, Delay on break with totalise, Interval with totalise
Counting Direction Down
Accuracy Setting : ± 0.1 Of Set Time or ± 50m sec (Whichever Is Greater). For Y contact operation : + 100 m sec, Repeat: ± 0.1%
Supply Voltage 20 to 240V AC / DC
Size 17.5mm
Mounting Type DIN Rail Mount
Certification CE, UL
Product Name / Options Price (ex VAT)
Call our Sales Team for Model Options and Prices - 01245 428500 Call for Prices
