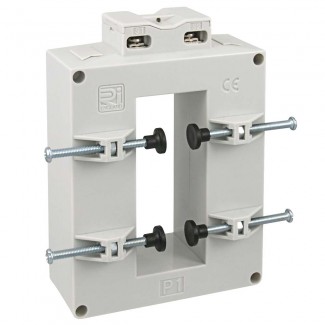

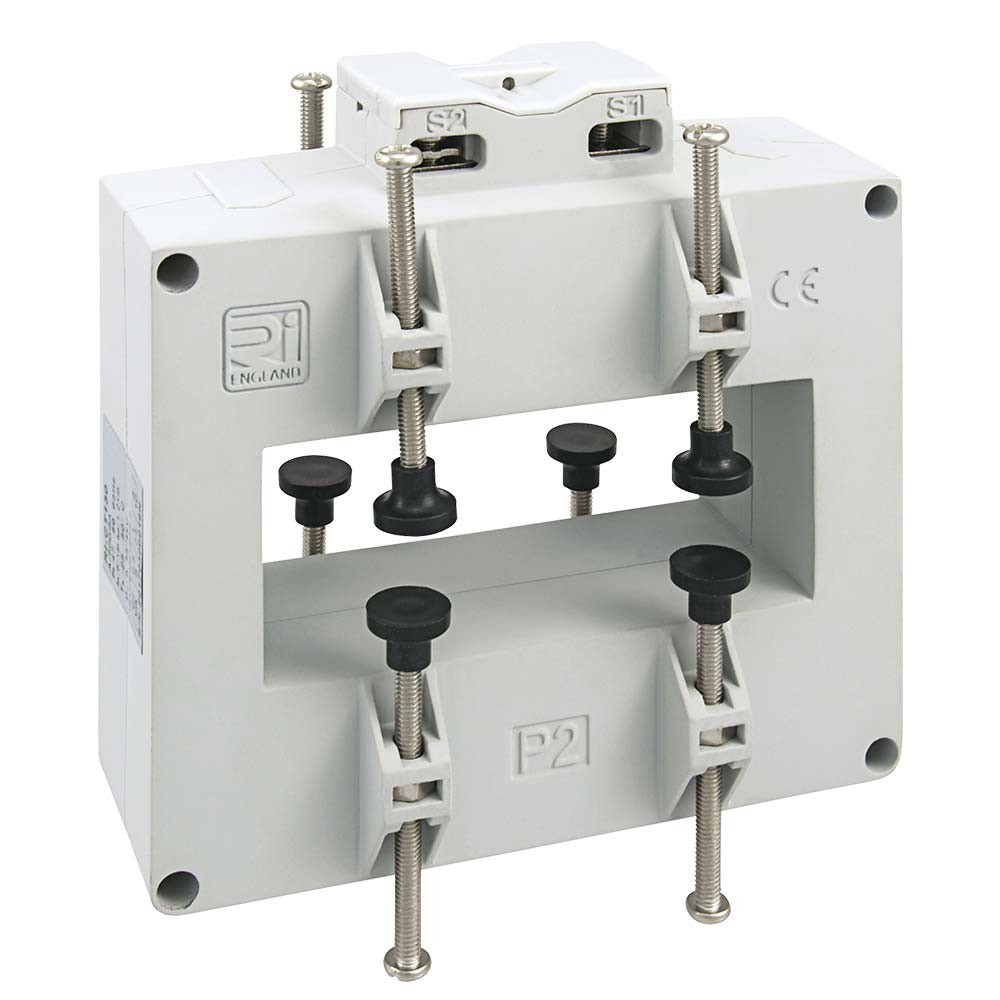

RI-CT130H Single Phase Current Transformer - Horizontal Mounting

Features

  • From 150A to 2500A Primary currents
  • 5A or 1A Secondary output
  • 96mm width
  • 34 x 84mm aperture
  • Sealable terminal cover

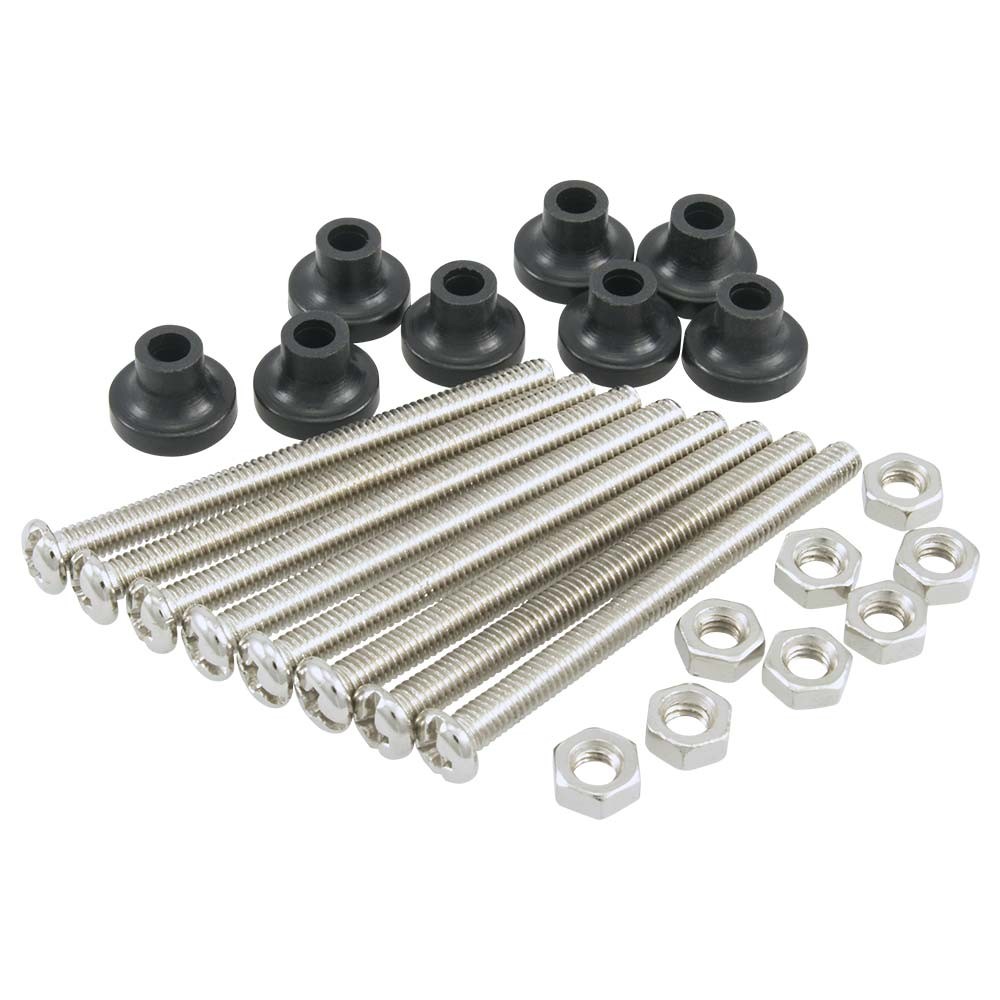

  • Supplied with Busbar fixings
  • Compact design
  • Indication of primary current flow (arrows on case body)

Details

The RI-CT130H Series forms part of a large family of solid core single phase moulded case current transformers from Rayleigh Instruments.

These transformers are suitable for monitoring current flow in commercial, industrial or utility applications. They are designed to connect any standard metering or relay product requiring a 5A or 1A output and are available with Primary current input ranges from 150A to 2500A.

The RI-CT130H Series have been designed for ease of installation and are supplied with Busbar fixings. They also have clear markings moulded into the case to indicate the correct direction of primary current flow to minimise installation errors.

Options: A vertical mounting version of this current transformer is also available.

Additional Information

Manufacturer Rayleigh Instruments
