  • Rayleigh Instruments DBP58/3 5A Class 1 Multi-Tap Split Core Measuring Current Transformer

More Views

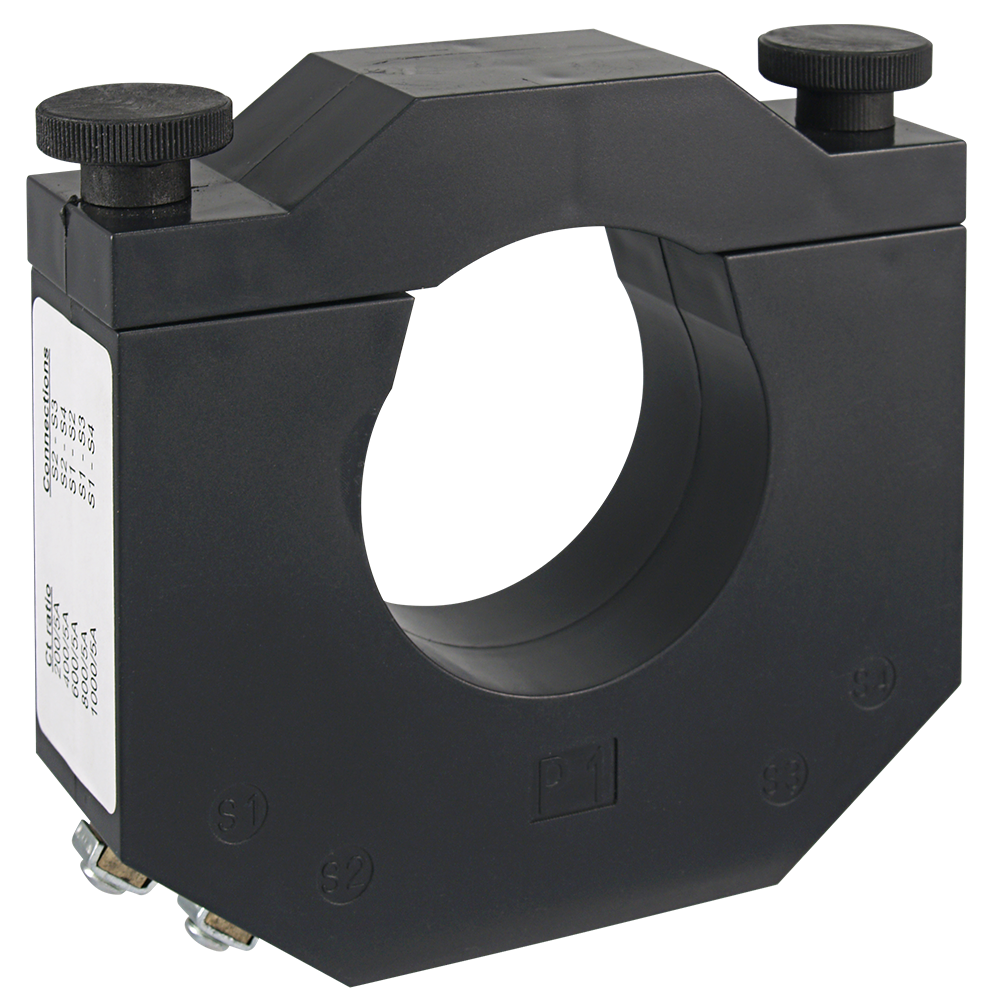

Rayleigh Instruments DBP58/3 5A Class 1 Multi-Tap Split Core Measuring Current Transformer

Features

  • 63mm Dia Cable Aperture
  • Housing Material Self extinguishing Nylon IEC185 classification VO according to UL-94
  • Weight 0.95Kg

Details

CT Ratios vs Connections

Amperage - Terminals

200/5A - S2+S3
400/5A - S2+S4
600/5A - S1+S2
800/5A - S1+S3
1000/5A - S1+S4

Additional Information

Manufacturer Rayleigh Instruments

Downloads

Product Name / Options Price (ex VAT)
DBP58/3 - Multi-tap Split Core CT - 200, 400, 600, 800, 1000 / 5A Call for Prices
