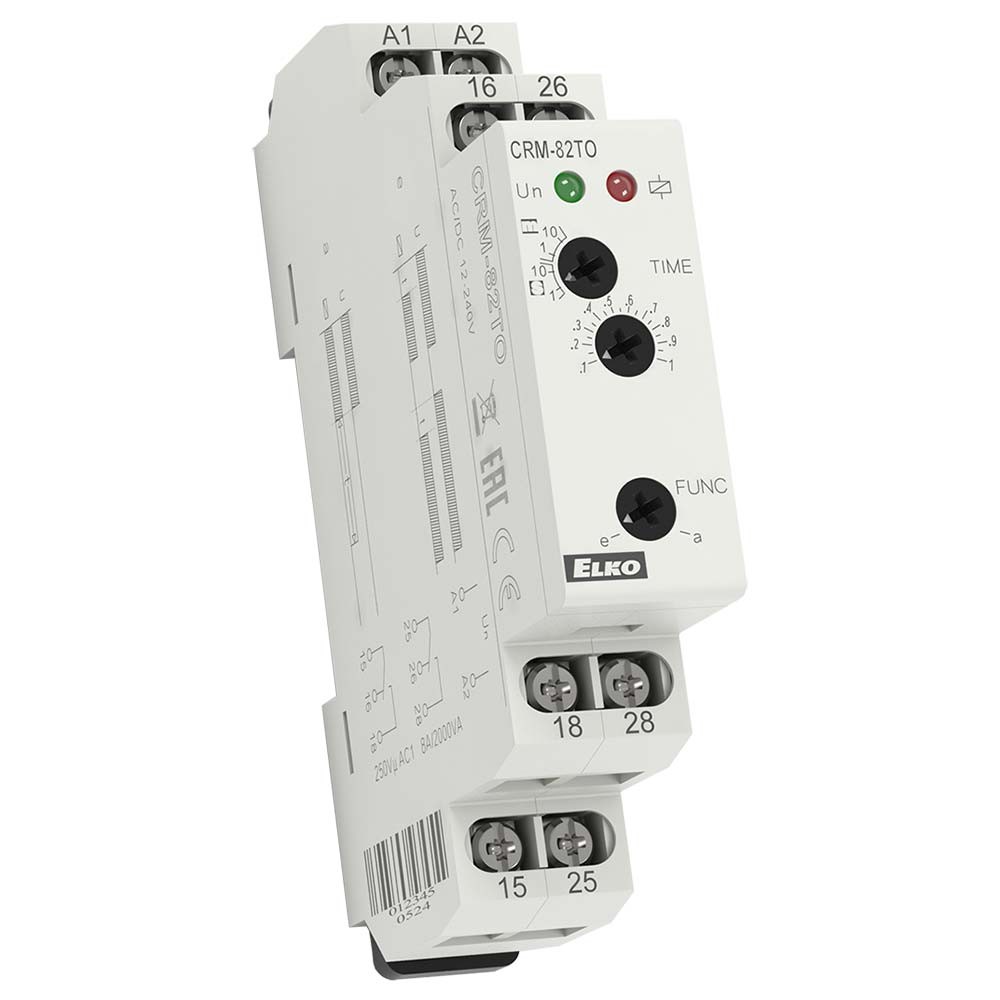

Elko CRM-82TO Single Function Time Relay - 2x changeover/SPDT (AgNi/ Silver Alloy) - a - On Delay (Power On)/ e - Off Delay (S Break)


  • Number of functions: a - On Delay (Power On)/ e - Off Delay (S Break)
  • Voltage range: AC/DC 12…240V (AC 50 - 60Hz)
  • Number of contacts: 2x changeover/SPDT (AgNi/ Silver Alloy)
  • Burden: AC 0.7…3VA / DC 0.5…1.7W


"True OFF“ relay - relay timing without supply voltage.

Sample of use: back-up source for Delay OFF in case of voltage failure (emergency lighting, emergency respirator, or protection of el. controlled doors - in case of fire).

2 time functions adjustable by rotary switch:
a - Delayed return after disconnecting of supply
e - Delayed start

Time range (adjustable by rotary switch and fine setting by potentiometer): 0.1s…10min

Universal supply voltage AC/DC 12…240V

Output contact: 2 x changeover/DPDT 8A

Output status indicated by LED (only in case of supply voltage connection).

Clamp terminals

1-MODULE, DIN rail mounting

Additional Information

Manufacturer Elko
Product Name / Options Price (ex VAT)
Elko CRM-82TO Delay OFF without Supply Voltage AC/DC 12 - 240 V (AC 50 - 60 Hz) Call for Prices
