  • Comitronic-BTI OPTOPUS DEC Polyamide Safety Switch used with safety relay - Position control for doors

More Views

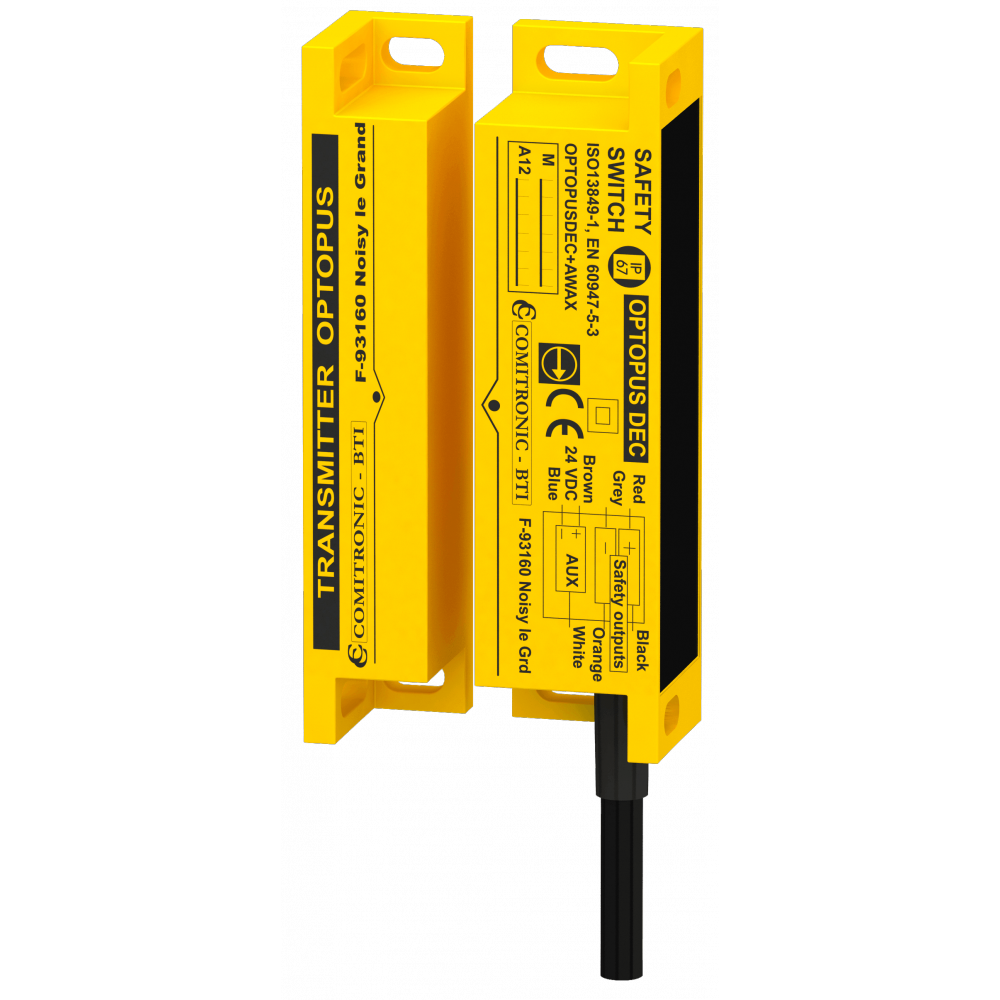

Comitronic-BTI OPTOPUS DEC Polyamide Safety Switch used with safety relay - Position control for doors

Features

  • Time before dangerous failure : MTTFd = 420 years
  • Max. activation distance : 9mm, 1mm hysteresis
  • Safety contacts/diagnostics : 2 x NO 0.4A max / 24V redundant and
  • 1 x 250mA PNP contact
  • Detection encoding : mono-code inviolable
  • Indicator : LED indicates code recognition
  • Reset : automatic
  • Attachment : 4 tamper-proof M3 screws (optional ref: BH3)
  • Mounting position : 2 (double wall brackets)
  • Material : PA6 or INOX 316L mirror polished (ref. + OX)
  • Electrical Connection : 3, 6, 12m cable (UL2464 PVC) or 50cm cord with M12 connector (UL20549 PUR) (ref. + MKT)
  • Water resistance : IP 67/68 or IP 69K stainless steel version (requires cable input protection)
  • Temperature : -20°C…+60°C
  • Marking : pad printing + serial no. for traceability

Details

The OPTOPUS DEC safety switch is designed to protect mobile doors using the ACOTOM2  electronic process. Housed in a polycarbonate housing (also available in stainless steel 316L), it is well adapted for the tiny accesses of machines. Its two opposite NO static channels outputs inform a safety module (AWAX, which manages the safety function) about the switch and door status. The ‘OPTOPUS DEC’ has a PNP NC auxiliary line and ‘OPTOPUS DEC NA’ has NPN NC auxiliary line compatible with PLC. (ABS Housing for NA type).

Contactless coded electronic sensor
Total safety management with an AWAX controller
Low cost solution for multi-access applications
Level of performance with AWAX controller: up to PL = e
Safety category: up to 4 with an AWAX controller

Additional Information

Manufacturer Comitronic - BTI

Downloads

Product Name / Options Price (ex VAT)
Comitronic-BTI OPTOPUS DEC CAT3 in serial. Cat 4 alone on AWAX, 2NO+1NF, 3M Cable Call for Prices
Comitronic-BTI OPTOPUS DEC CAT3 in serial. Cat 4 alone on AWAX, 2NO+1NF, 6M Cable Call for Prices
Comitronic-BTI OPTOPUS DEC CAT3 in serial. Cat 4 alone on AWAX, 2NO+1NF, 12M Cable Call for Prices
Comitronic-BTI OPTOPUS DEC MKT ,CAT3 in serial. Cat 4 alone on AWAX, 2NO+1NF, Reduced Size, 50cm cable + M12 connector Call for Prices
