  • Comitronic-BTI RDX8 ATEX Gamme Position control on ATEX doors / casings

More Views

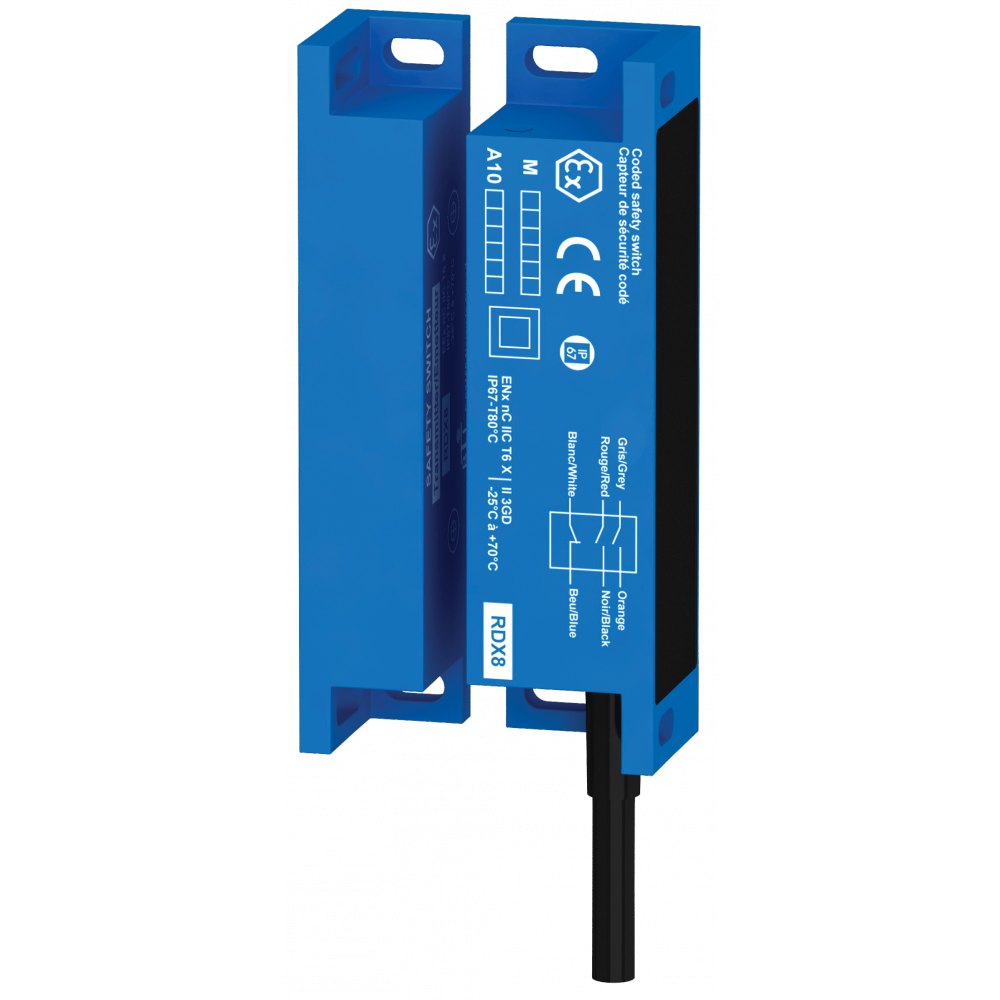

Comitronic-BTI RDX8 ATEX Gamme Position control on ATEX doors / casings

Features

  • Machine Safety
  • Level of performance with AWAX26XXL-EEX3 controller : up to PL = e in accordance with EN ISO 13849-1
  • Cycle before dangerous failure : B10d = 62,500
  • Max. activation distance : 17mm, 5mm hysteresis
  • Safety contacts/diagnostics : NO 2 x 50mA/24V redundant 1xNF/50mA/24V redundant parallel
  • Overcurrent : 500mA for 2s
  • Shock resistance : 50G
  • Vibrations : 30G
  • Detection encoding : mono-code
  • Indicators : no
  • Reset : automatic
  • Total number of connectable sensors in series : 30
  • Attachment : 4 tamper-proof M4 screws (optional ref: BH4)
  • Mounting position : 2 (double wall brackets)
  • Material : PA6
  • Marking : pad printing + serial no. for traceability
  • Electrical connection : 3, 6, 12m cable
  • Water resistance : IP 67
  • Temperature : -5°C…+80°C.

Details

RDX8 switch detects the opening of a safe access. It comprises a transmitter and a receiver and is contactless. This device is the anti-fraud type and does not work if a magnet is applied to try to inhibit it. The product meets the essential requirements for the safety of Directive 94/9/EC and for which a declaration of Conformity is available. Due to their low self-heating, magnetic switches RDX8 well suited for high ambient temperatures (70 °) C with a temperature class T6), they never reach the ignition temperature of the gas or dust. The RDX8 be used in Area 2/22 within the parameters indicated in the table of electrical features. It provides 2 lines NO and NC line redundant and synchronized.

ATEX Zone 2 and 22 category 3GD
No power

Atex safety
EN 60079-15
EN 61241-1

Additional Information

Manufacturer Comitronic - BTI

Downloads

Product Name / Options Price (ex VAT)
Comitronic-BTI RDX8/12M 2NO+1NF Zone 2&22 ATEX with 12m Cable Call for Prices
