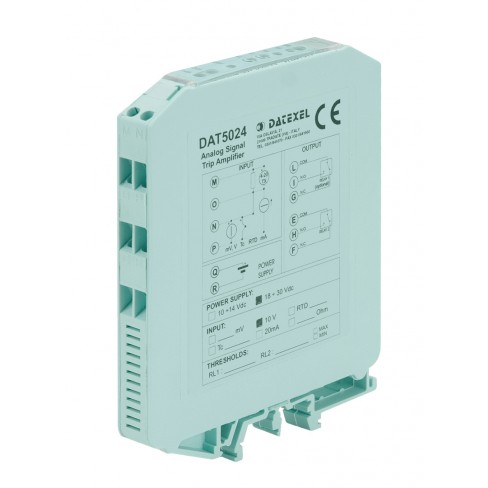

Datexel DAT 5024E/2 Economic, isolated Trip Amplifier configurable by Dip-switches

Features

  • Input for Voltage and Current
  • Two independent thresholds
  • Type of alarm programmable by dip-switch as high or low
  • Galvanic isolated among the ways
  • Trip level and hysteresis adjustable by potentiometers
  • Delay time adjustable by potentiometer from 1 up to 6 sec.
  • Two relays SPDT (Form C)
  • Good accuracy and linearity
  • EMC compliant – CE mark
  • Suitable for DIN rail mounting in compliance with EN-50022 and EN-50035

Details

The DAT 5024E is an economic trip amplifier able to accept on its input normalised voltage and current signals coming from both active and passive current loops. Both the trips can be configured as high or low alarm, the adjustment of the trip values is performed by the potentiometers THR1 and THR2 located on the front side of the device. The adjustment of the hysteresis and delay value can be performed by the potentiometers accessible opening the suitable door located on the side of the device. On the devices are foreseen the following isolation power supply/input: 1500 Vac; contact of relays/output-input: 1000 Vac.

  • Din rail trip amplifier 2 relays SPDT 250Vac 1A output.
  • Input : mV, mA.
  • Power supply 18...30Vdc.
  • Reverse polarity protection 60Vdc max.
  • Trip Amplifier value : Switable from 2 to 96 % f.s.
  • Delay : Switable from 1 to 6 sec.
  • Galvanic insulation : Power supply// input : 1500Vac, 50Hz., 1 min. Input // Relays contacts : 1000Vac, 50Hz., 1 min. Power supply // Relays contacts : 1000Vac, 50Hz., 1 min.

Additional Information

Manufacturer Datexel

Downloads

Product Name / Options Price (ex VAT)
Datexel DAT 5024E/2 Din rail trip amplifier 2 relays SPDT 250Vac 1A output Call for Prices
