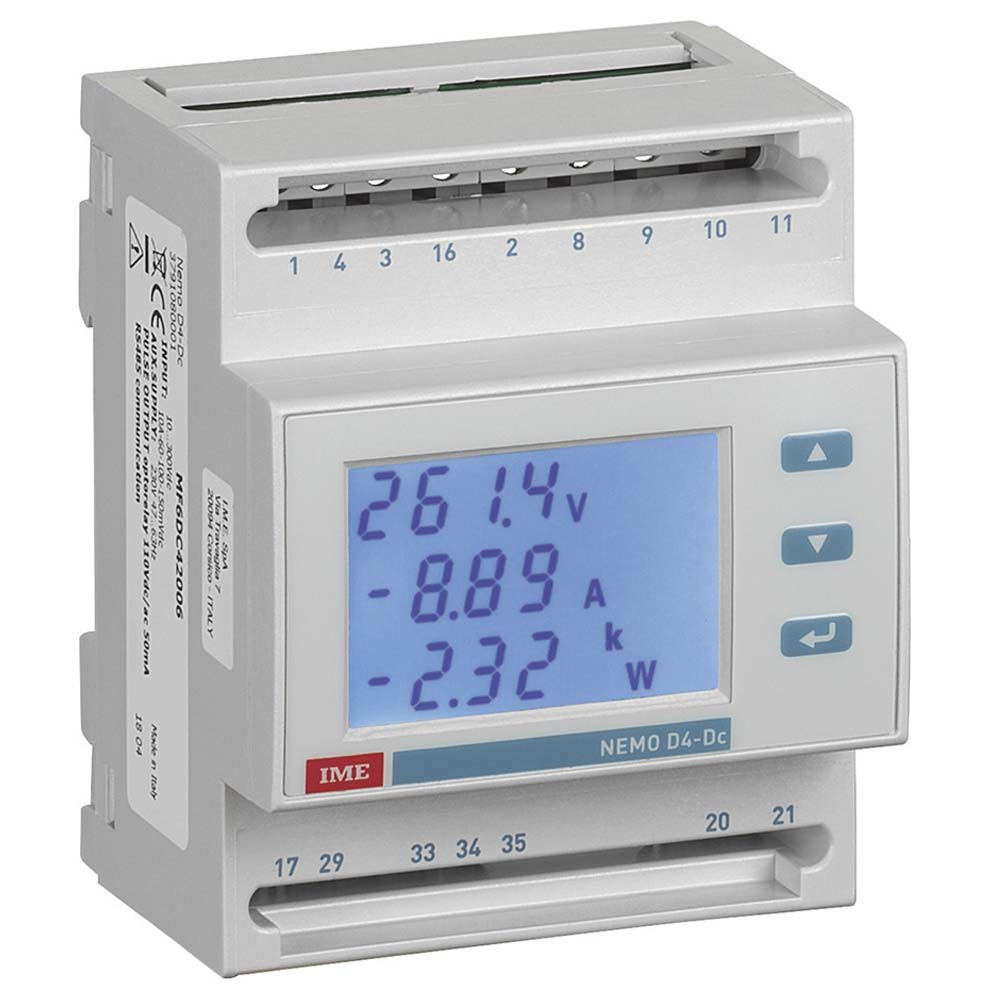

IME Nemo D4-DC Multifunction Network Monitor for Direct Current (DC)

Features

  • Voltage input 10...300Vdc
  • Direct voltage input by external adapter up to 1500V
  • Direct current input or from shunt (selectable)
  • Direct input up to 10A direct current
  • Input from shunt 60 – 100 – 150mV
  • 2 programmable alarms
  • 2 relay outputs
  • Integrated Communication Protocols are Pulsed output and RS485 Modbus RTU

Details

The Nemo D4-DC is a multi-function power meter designed for monitoring DC power supplies. Higher ranges available using external adapters and DC current Shunts. Output has two alarm relay outputs, the communications protocols are pulse output and RS485 Communications.

PULSE OUTPUT (only MF6DC4200H - MF6DC42006)
Pulse weight: 0,1 – 1 – 10 – 100kWh
Pulse duration: 50 – 100 – 200 – 300ms

VOLTAGE
Direct input: 10…300V
Via external adapter: Up to 1500V**

CURRENT
Input: direct or from external shunt
Direct: 0…10A
Instantaneous overload: 10In/0,5 s
With shunt: 60 – 100 – 150mV
Shunt primary: 1…9999 (programmable)
Current direct input voltage drop: ≤ 100mV (In10A)

Displayed Parameters

  • Voltage
  • Current
  • Power
  • Average power
  • Peak maximum demand
  • Working hours and minutes
  • Positive energy
  • Negative energy
  • Positive and negative ampere-hour

Additional Information

Manufacturer IME (BTicino)

Downloads

Product Name / Options Price (ex VAT)
MF6DC42006 - Nemo D4-DC (230Vac Aux. Supply, 300V Voltage Input, Pulse and RS485 Output) Call for Prices
MF6DC4200H - Nemo D4-DC (20...150Vdc 48Vac Aux. Supply, 300V Voltage Input, Pulse and RS485 Output) Call for Prices
MF6DC42066 - Nemo D4-DC (230Vac Aux. Supply, 1500V Voltage Input**, RS485 Output) Call for Prices
MF6DC4206H - Nemo D4-DC (20...150Vdc 48Vac Aux. Supply, 1500V Voltage Input**, RS485 Output) Call for Prices
