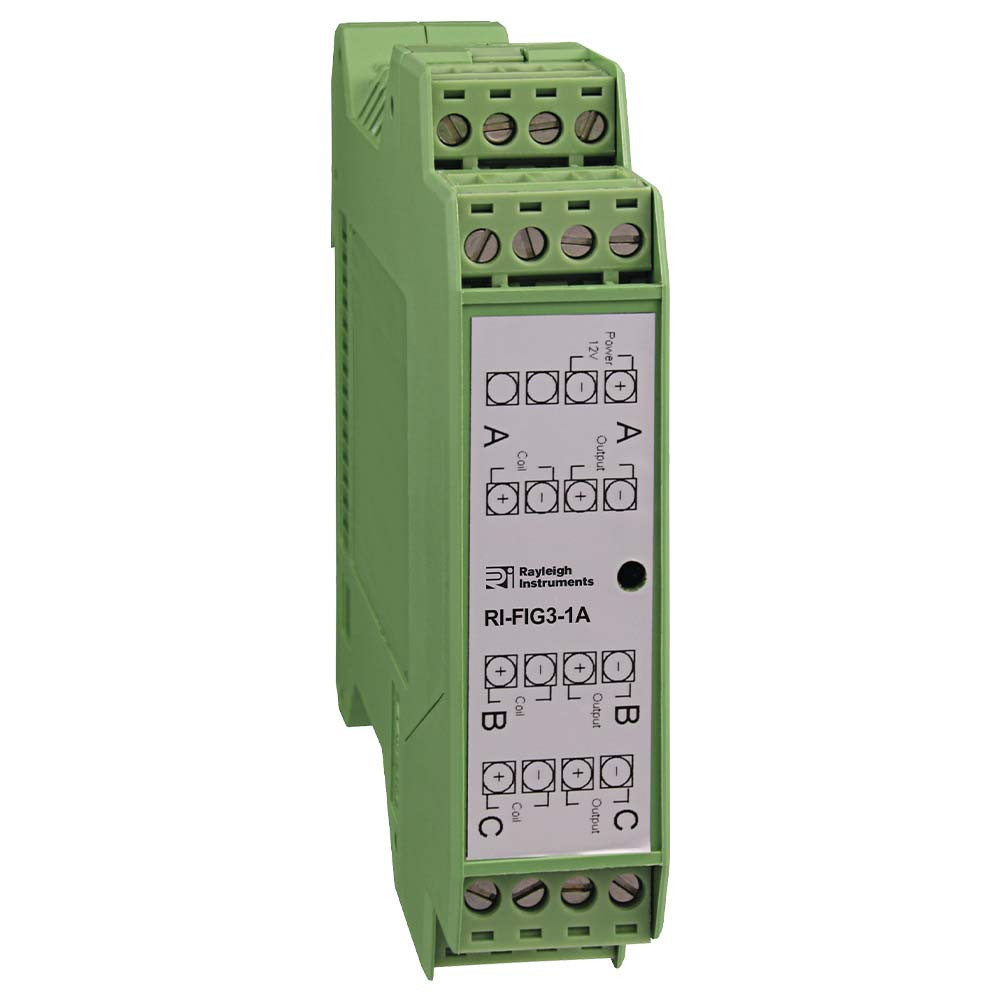

RI-FIG-1A is a Rogowski to 1A converter, designed to use with existing monitoring equipment with a 0-1A CT input. Coils are produced in many sizes from 16mm to 600mm diameters as standard. Unlike traditional CT these coils do not suffer from magnetic saturation.
Rogowski coils benefits from a thin, light-weight, flexible, clip-around Rogowski type CT and are particularly useful in tight restrictive spaces where a traditional CT would not work. These coils are Safe for installation and operation with no dangerous
open circuit voltages.
Parameters
- 100A : 1A - Pre-calibrated
- 150A : 1A - Pre-calibrated
- 200A : 1A - Pre-calibrated
- 300A : 1A - Pre-calibrated
- 600A : 1A - Pre-calibrated
- 630A : 1A - Pre-calibrated
- 800A : 1A - Pre-calibrated
- 1000A : 1A - Pre-calibrated
- 1500A : 1A - Pre-calibrated
- 2000A : 1A - Pre-calibrated
- 2500A : 1A - Pre-calibrated
- 3000A : 1A - Pre-calibrated
- 4000A : 1A - Pre-calibrated
- 5000A : 1A - Pre-calibrated
- 6000A : 1A - Pre-calibrated
- 8000A : 1A - Pre-calibrated
- 9000A : 1A - Pre-calibrated
