Rayleigh Instruments RI-D240 Multifunction Energy Meters

Features

  • Four module DIN rail mounted
  • Energy pulse LED
  • -/1A or -/5A current transformer input

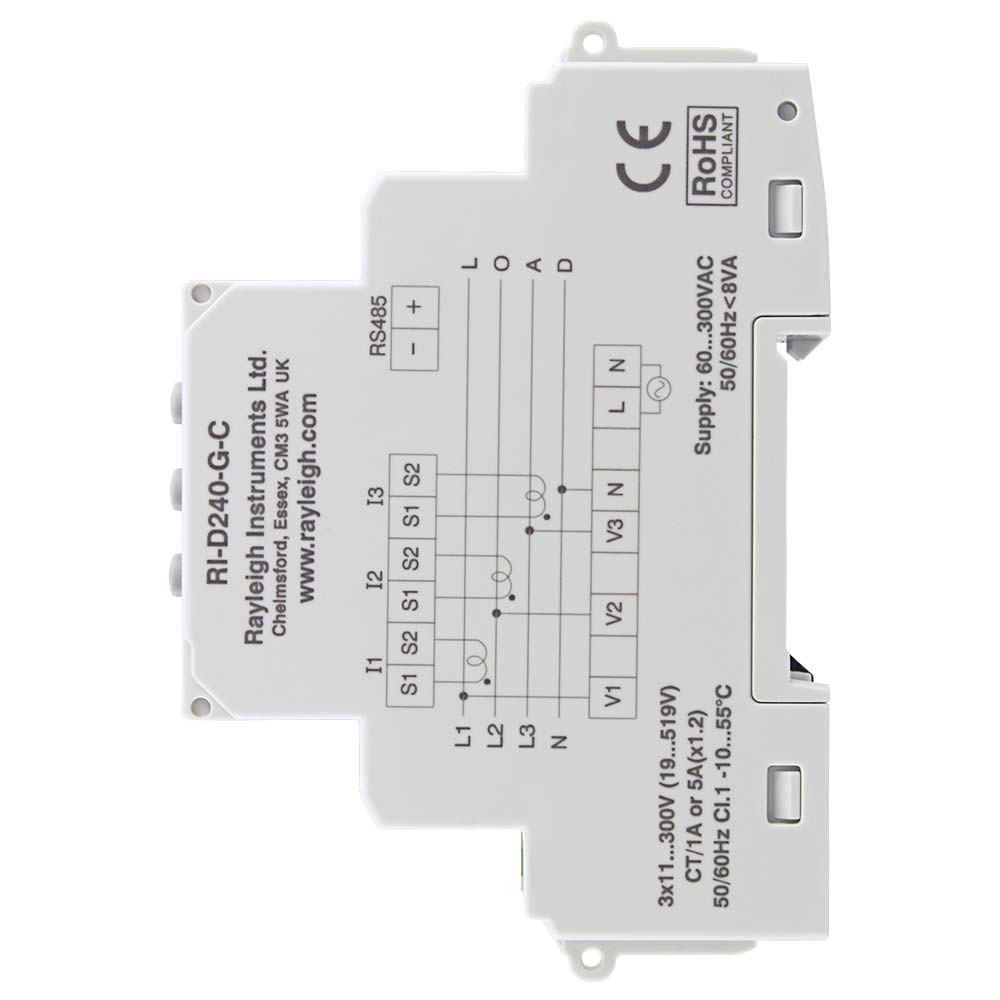

  • Single phase or three phase network compatible
  • Programmable voltage and current transformer ratio
  • True RMS measurement
  • High definition white backlit LCD display
  • Cost effective and accurate
  • Simple programming and operation
  • Modbus or Mbus communication
  • Auto and manual page scrolling

Details

The RI-D240 is a DIN rail mounted multifunction energy meter. Suitable for monitoring energy consumption and many other electrical parameters in industrial and commercial applications. These meters may be used in single or three phase balanced or unbalanced load systems.

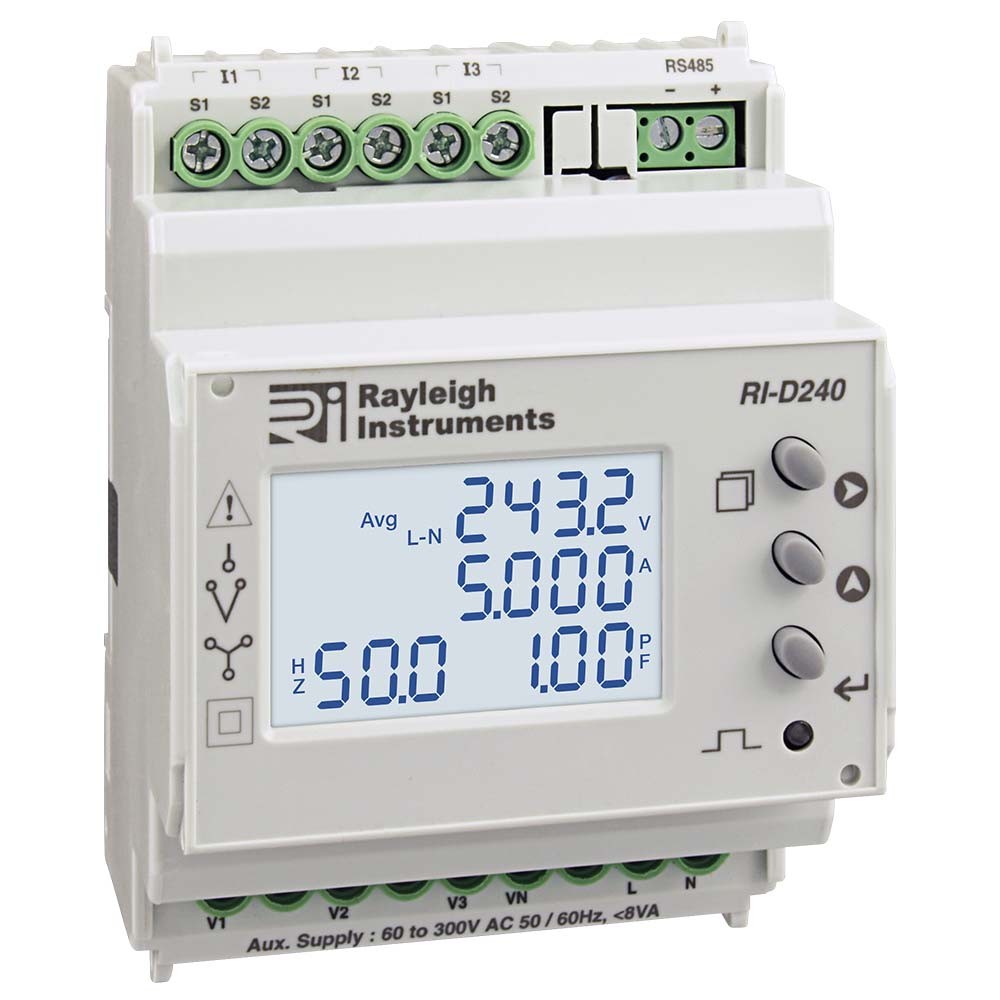

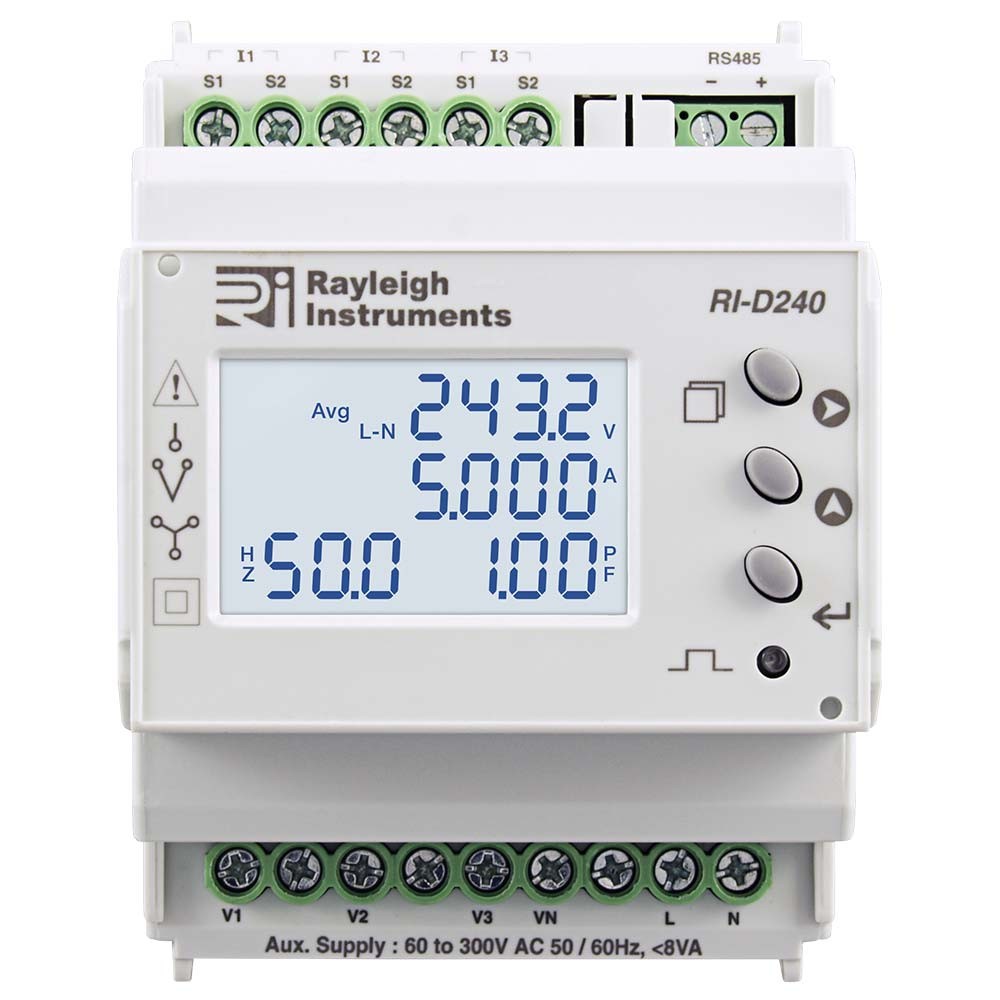

A high efficiency white backlit LCD display provides a clear indication of the measured value in all light conditions. Push-buttons on the front of the meter allow the user access to the display page required.

The meter is available in two versions:
  • With RS485 Modbus communication
  • With Mbus communication

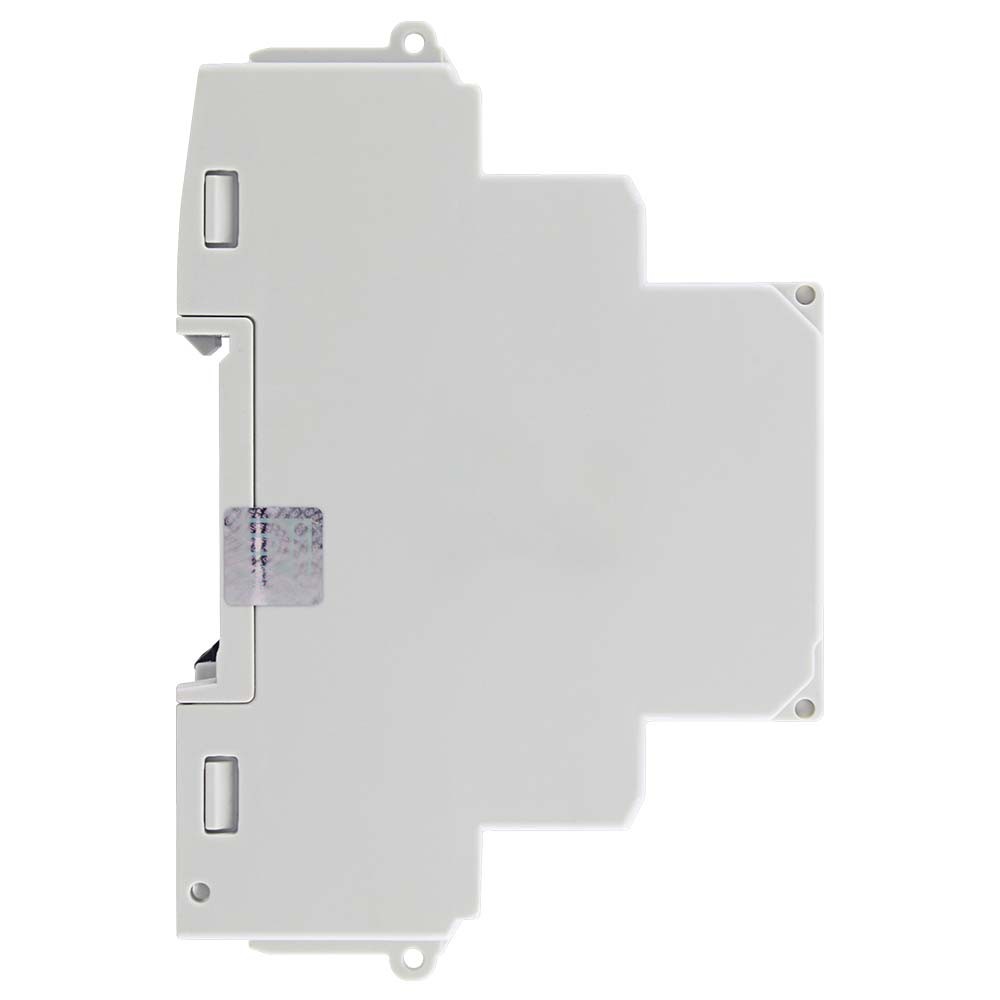

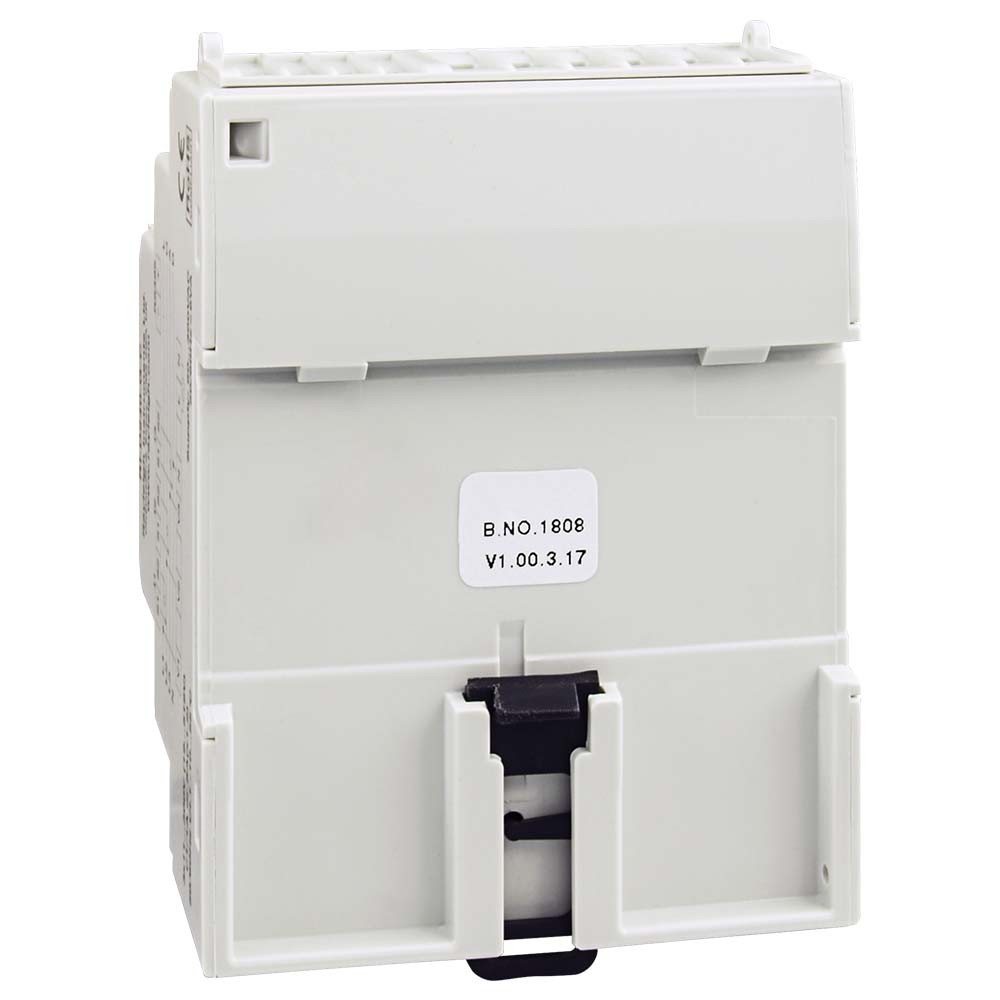

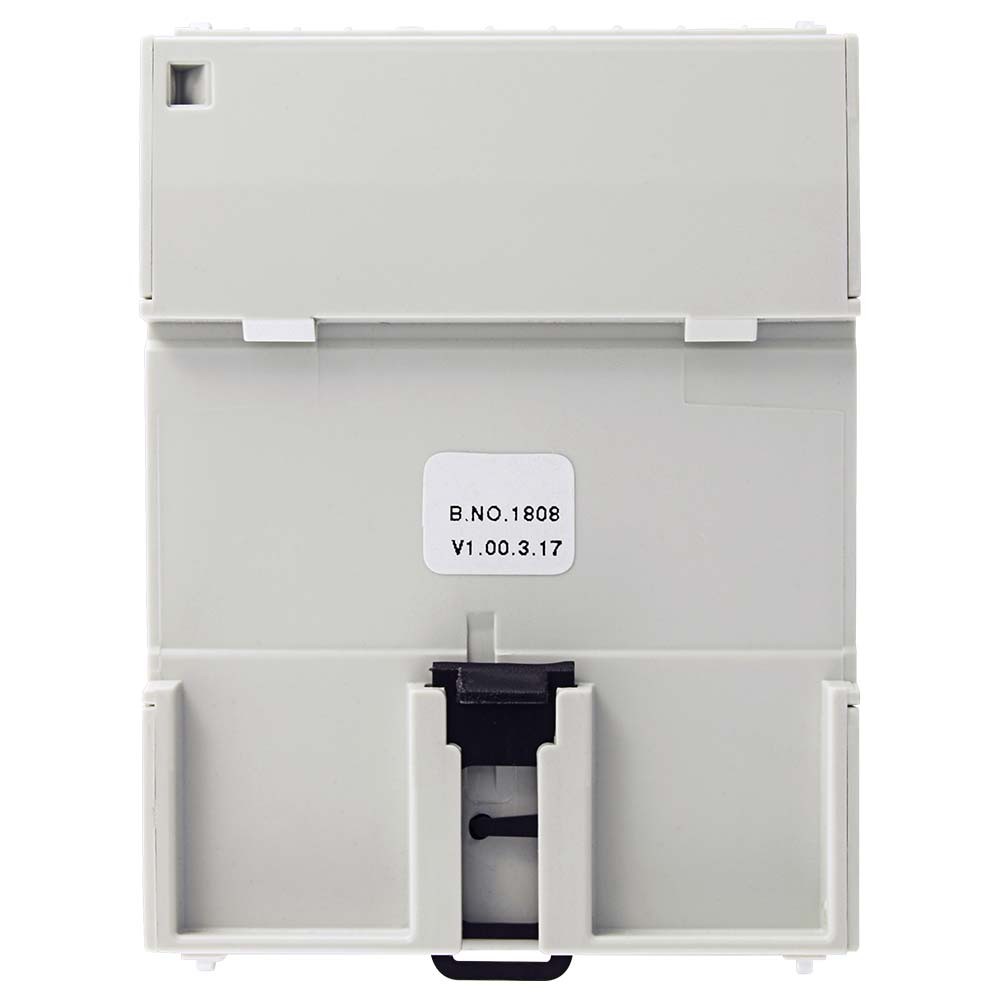

The unit is housed in a compact four module width housing suitable for 35mm DIN rail mounting.

Displayed Parameters
  • Voltage – L-L, L-N and average
  • Current – Per phase and average
  • Power Factor – per phase and average
  • Frequency
  • Power – Active, Reactive and Apparent (per phase and total)
  • Power Min./Max. demand – Active and apparent power
  • Energy – Active, reactive and apparent (per phase and total)
  • Import and export energy – Active, Reactive and Apparent (per phase and total)
