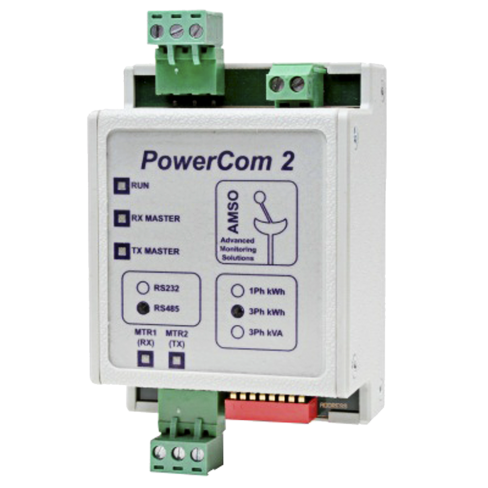

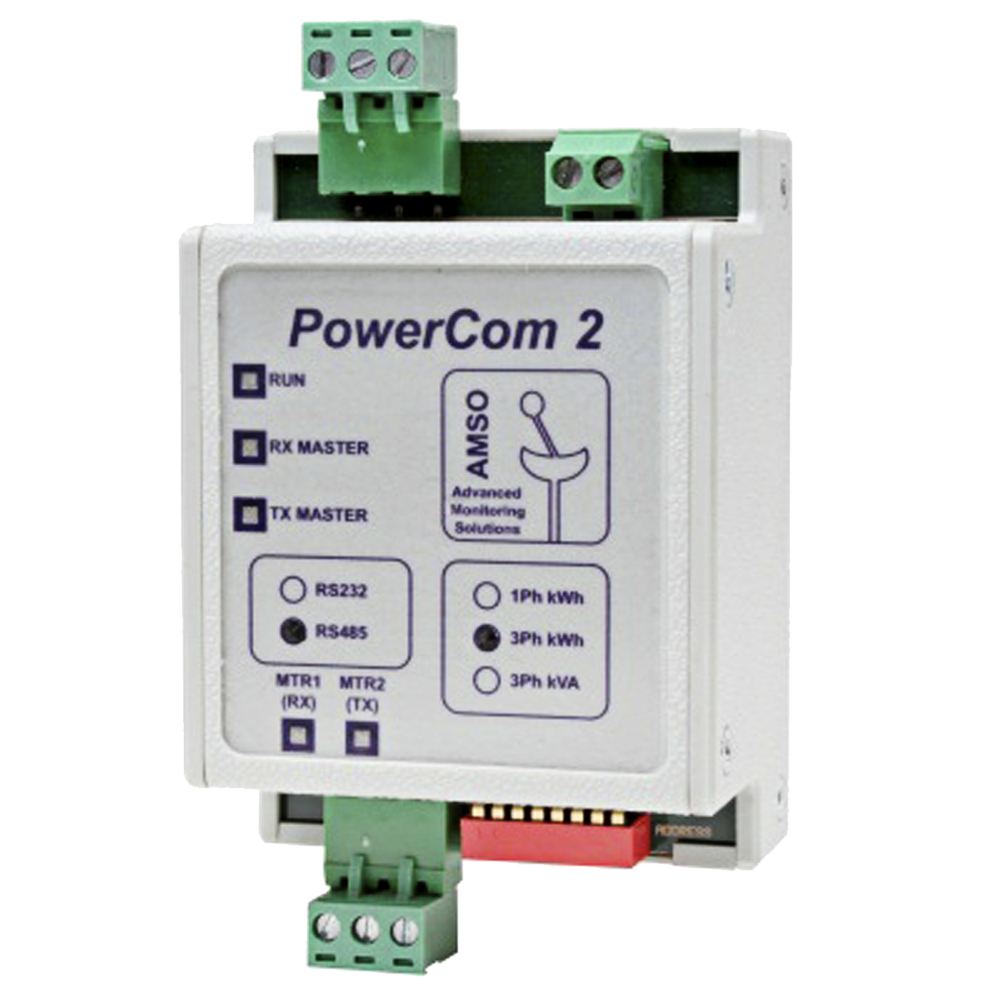

Elster PowerCom 2 A1140 and A1700 RS485 to Modbus Converter

Features

This product is no longer available - click the links below to see our range of MID Certified Meters

MID Certified kWh Energy Meters

MID Certified Multifunction Energy Meters


  • Network: Up to 32 meters
  • Power Supply: 90VAC to 230VAC (Available in both 115V to 230V environments)
  • Accommodates: The A1700
  • Connections: 3 Core Wire

Details

This product is no longer available - click the links below to see our range of MID Certified Meters

MID Certified kWh Energy Meters

MID Certified Multifunction Energy Meters


Elster PowerCom2 RS485 to Modbus Converter allows A1700s and A1140s Modbus output via the RS232 port.The modem is powered by a 10V 80mA supply cable connected to the RS232 D-type connector allows RS485 communication.

For RS485 connection, external equipment is connected directly via the RJ45 sockets.

Meter connected must be equipped with RS485 communications card for usage.

Please note to allow communications between A1140/A1700 & PowerCom 2 the setting must be as follows:

Outstation No.: 001
Baud Rate: 9600
L3 Password: **********

Additional Information

Manufacturer Elster
Product Name / Options Price (ex VAT)
This product is sold exclusively via our distribution network please contact our Sales Department on 01245 428500 on to find out your nearest stockist or if you are interested in becoming a distributor Call for Prices
