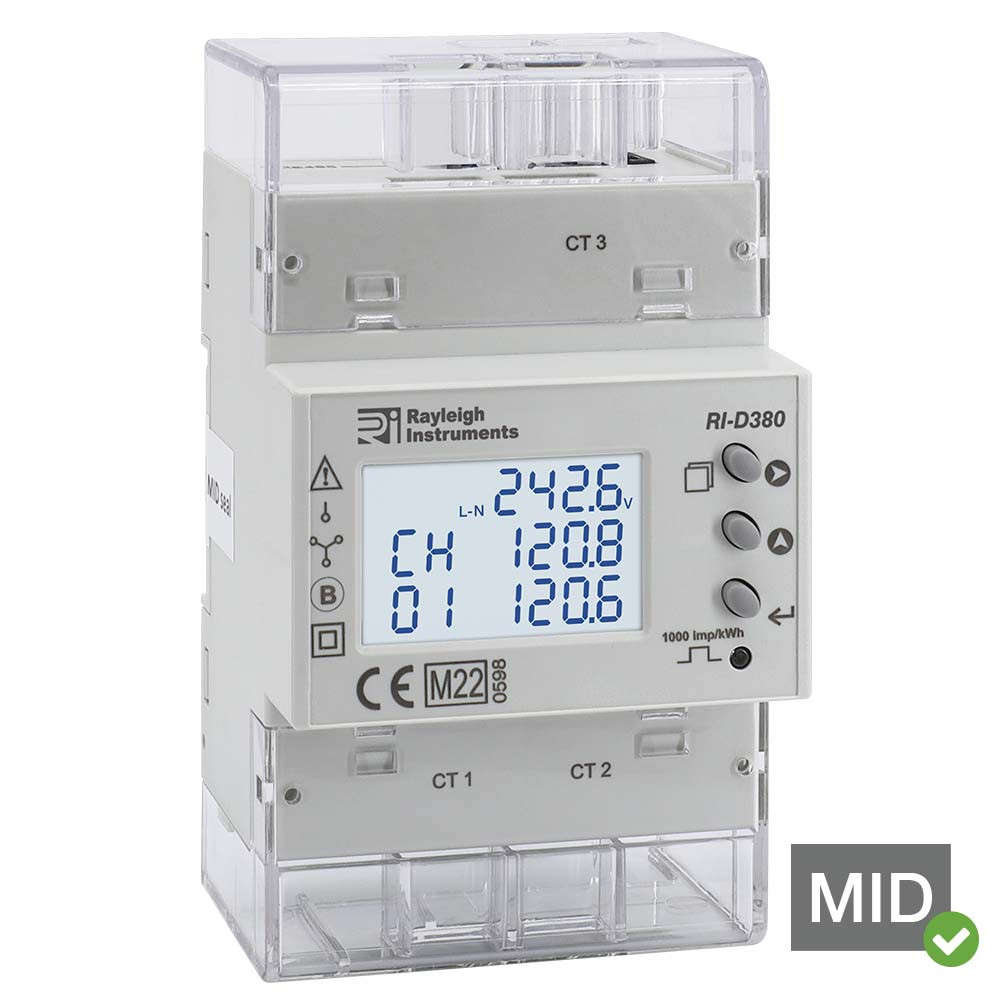

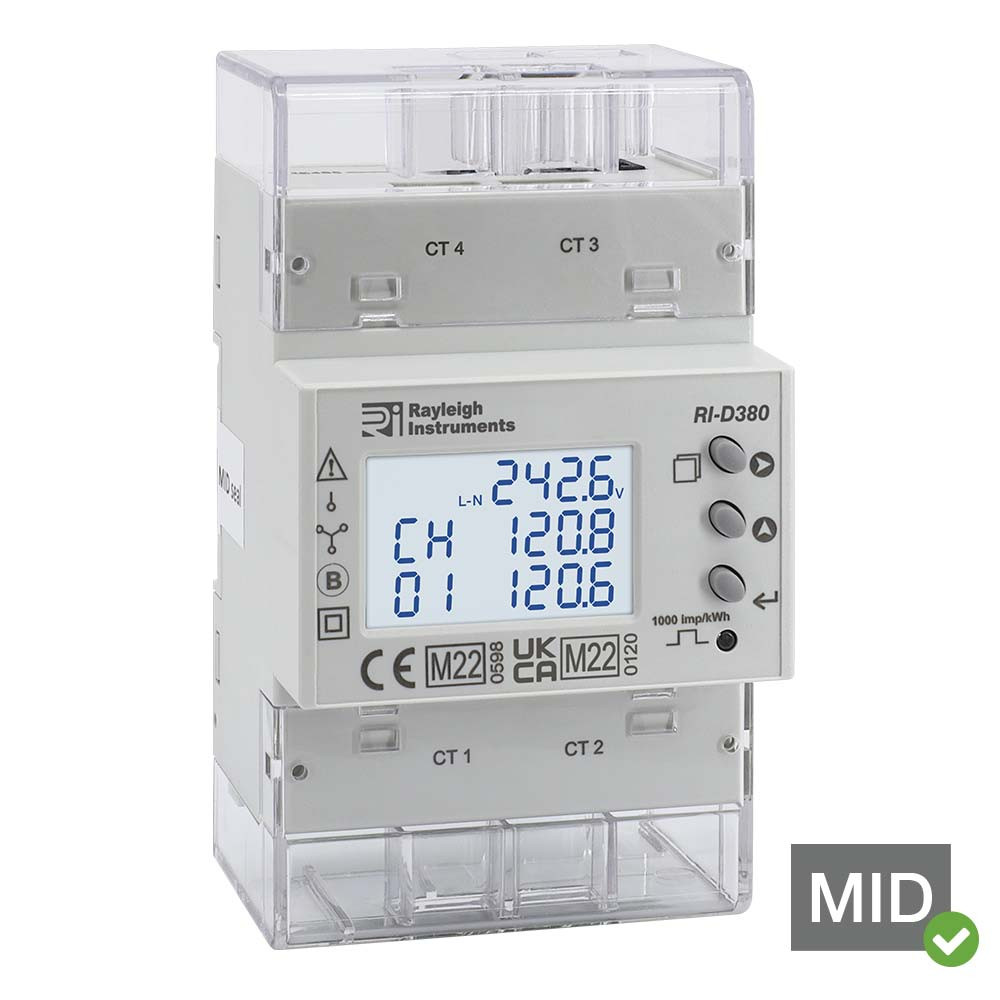

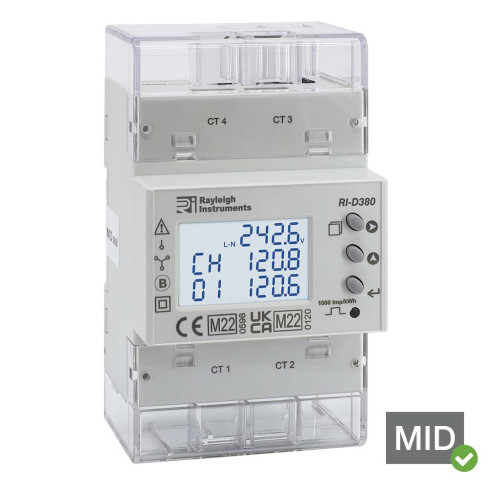

Rayleigh Instruments RI-D380 4 Input Load easywire Multifunction Meter - MID Certified


  • Four module DIN rail mounted
  • Energy pulse LED
  • 4 x separate 3 Phase or 12 x Single Phase inputs 1A (330mV) from easywire® CTs (-/5A or -/1A CTs with converter)
  • Single phase or three phase network compatible
  • Independently programmable CT ratios (Load 1, 2, 3, 4)
  • Programmable voltage transformer ratio
  • True RMS measurement
  • High definition white backlit LCD display
  • Simple programming & operation / auto or manual page scrolling
  • Modbus communication
  • Voltage OUT connector for daisy chaining up to 32 meters from one supply


The RI-D380 series are part of the easywire® family of meters. The easywire® system has been designed to save up to 90% installation time compared to a standard meter and current transformer installation.

This series of meters contain four metering circuits in one case, and accept inputs from four separate three phase, or twelve single phase easywire® current transformers while still utilising the same voltage reference.

These DIN rail mounted multifunction energy meters are suitable for monitoring energy consumption and many other electrical parameters in industrial and commercial applications. This series is particularly suited for use in multi-circuit metering boards in single or three phase applications.

A high efficiency white backlit LCD display provides clear indication of measured values in all light conditions. Push-buttons on the front of the meter allow the user access to the display page required.

The meter is available in two version with RS485 Modbus communication (RJ12 - In and Out).

The unit is housed in a compact four module width housing suitable for DIN rail mounting.

Displayed Parameters

  • Voltage - L-L, L-N and average
  • Current - Per phase and average
    (LOAD 1, LOAD 2, LOAD 3 and LOAD 4 or 12 x Single Phase)
  • Power Factor - per phase and average
  • Frequency
  • Power - Active, Reactive and Apparent (per phase and total)
  • Power Max. demand - Active and apparent power
  • Energy - Active, reactive and apparent (per load and total)

Read more about - easywire®

Additional Information

Manufacturer Rayleigh Instruments


Product Name / Options Price (ex VAT)
Call our Sales Team for Model Options and Prices - 01245 428500 Call for Prices
