RI-FMDU96 Metering Display Unit for up to 64 x 3 Phase or 192 x 1 Phase Loads - easywire modular


  • DIN 96 panel mounted (multiple aperture mounting)
  • Energy management system
  • Modular multiple zone power monitoring
  • 16 x RI-D480 meters for up to 64 Three Phase loads or 192 Single Phase loads or a combination of both.
  • Energy power status and analysis
  • Modbus-RTU communication protocol
  • Safe low voltage 24V DC operation
  • Slim profile - just 38mm

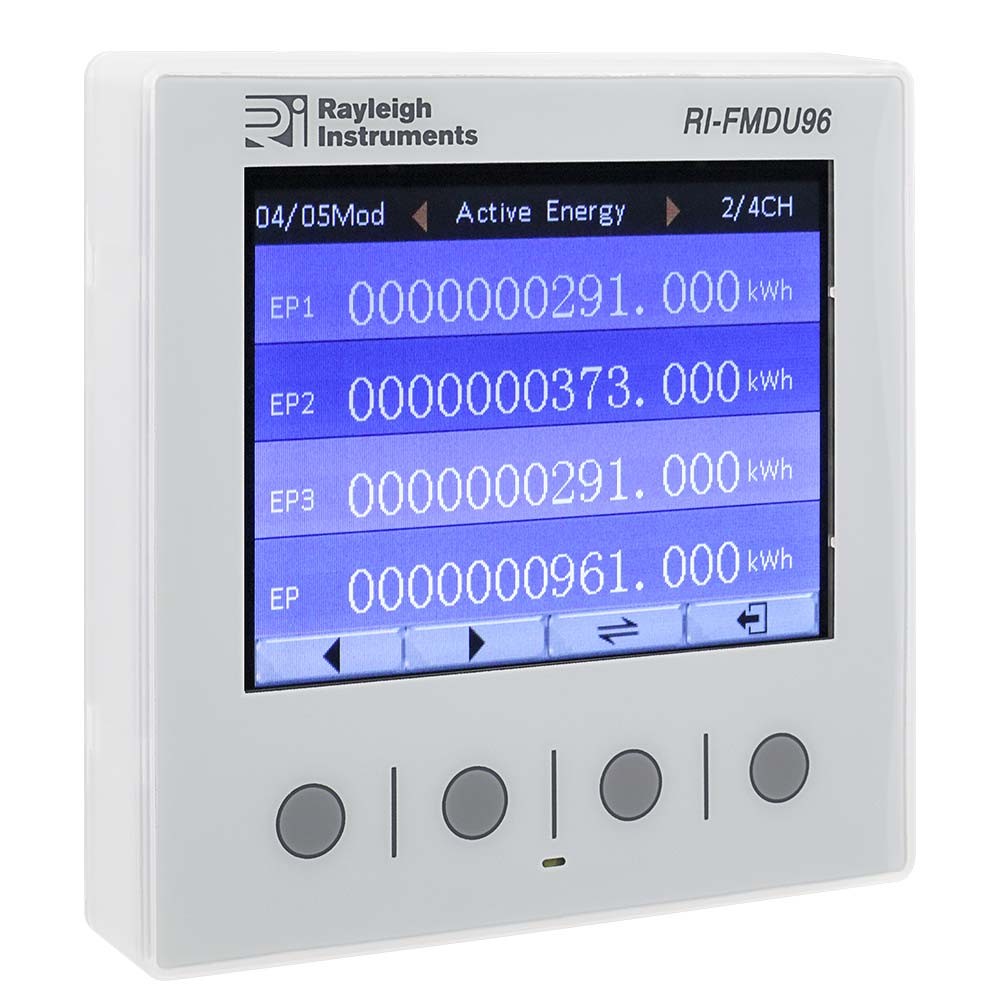

  • Colour TFT display
  • Touch sensitive buttons

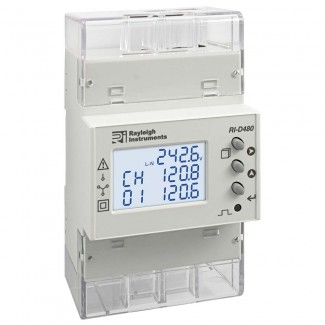

The RI-FMDU96 is equipped with multifunction energy monitoring power quality analysis functions. Capable of multiple zones monitoring it is designed to work with up to 16 x RI-D480 ‘quad’ energy meters giving data for 64 three-phase loads or 192 single-phase loads or a combination of both; making them highly modular and customisable for any system size.

Data reception and transmission is via RS485 Modbus using daisy-chain topology between RI-D480 easywire® modular energy meters.

A 3.5 inch, 16.7 thousand colour TFT display gives crisp clear menus and data display and touch-sensitive buttons offer easy operation and durability.

The RI-FMDU96 is 24V DC operation for safe low voltage mounting to panel doors with easy RJ12 connection.

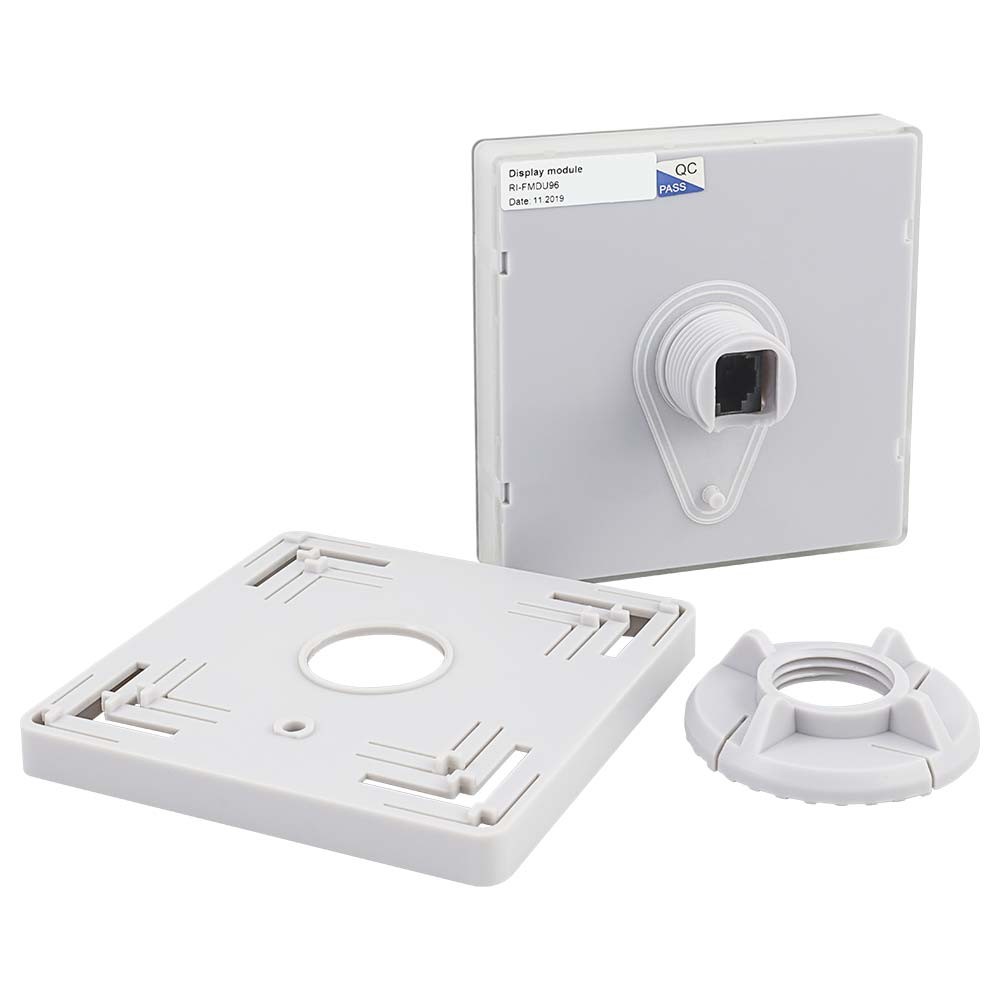

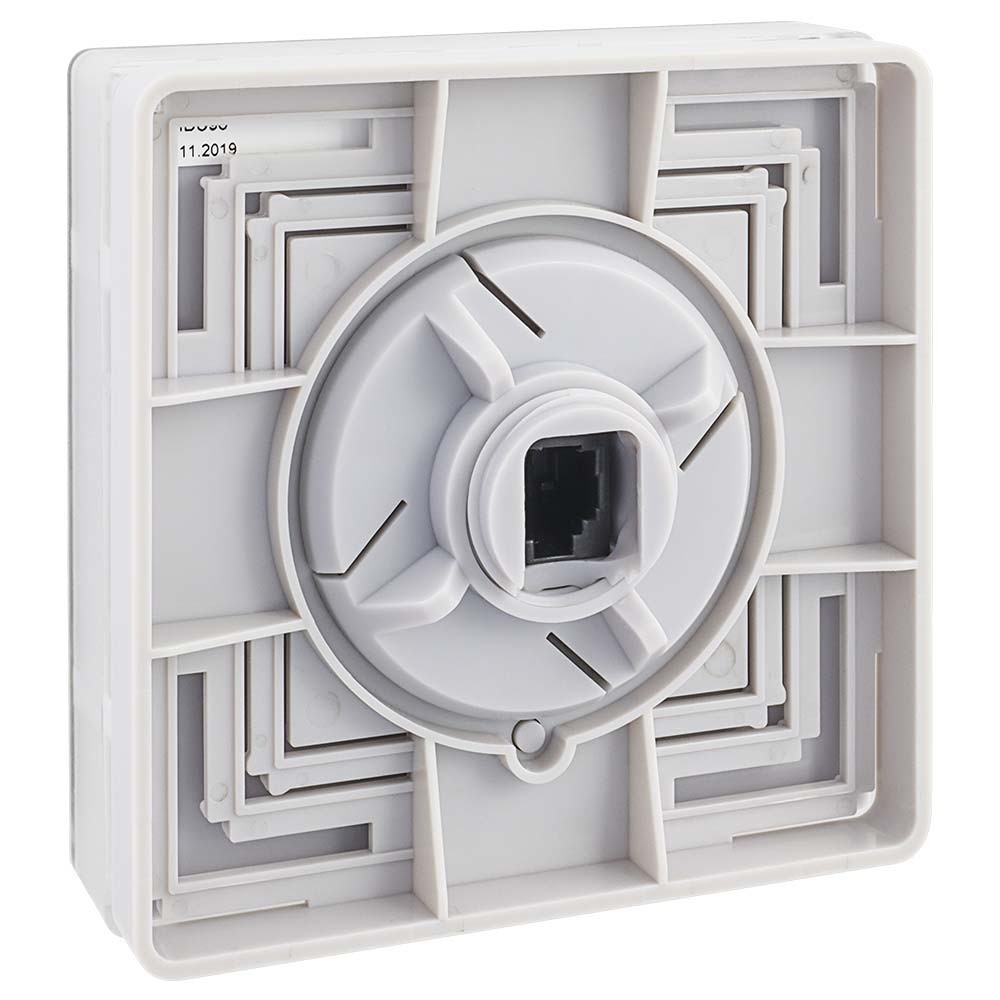

A clever mounting system for 91 x 91mm, 76 x 76mm, 67 x 67mm or Ø26mm aperture ‘screw’ mounting to panel makes it also very simple to install.

The RI-FMDU96 is a compact versatile system that brings all your meter data to a single point for ease of access.

The RI-FMDU96-KIT is supplied with 1 x RI-FMDU96 display, 1 x RI-DPSU1-24 24V power supply and 1 x RI-DCM-C communications RS485 module.

The RI-DCM-C communications module has a mini USB port on the front to allow connection to a PC for programming the RI-FMDU96 to make the naming of the various inputs more friendly.

Displayed Parameters

  • Fundamental Voltage
  • Fundamental Energy
  • L-L Voltage
  • Active Power
  • Reactive Power
  • Apparent Power
  • Power Factor
  • Amps
  • Frequency
  • Reactive Energy
  • Apparent Energy

Schematic - Illustration only - device should be correctly fused

RI-FMDU96 Schematic
