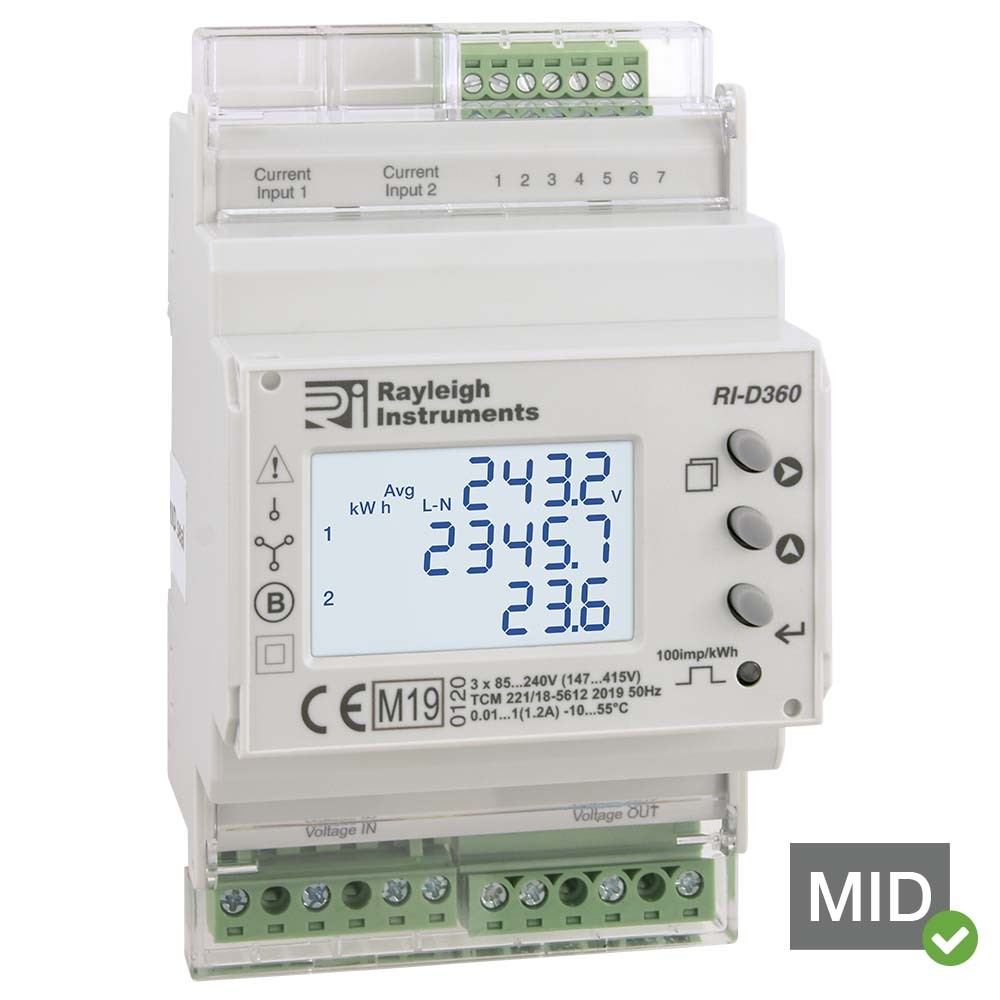

Rayleigh Instruments RI-D360 easywire Split Load Meter - MID Certified

Features

  • Four module DIN rail mounted
  • Energy pulse LED
  • 2 x Inputs from easywire® Current Transformers
  • Three phase network compatible
  • Independently programmable CT ratios (Load 1 and Load 2)
  • Programmable voltage transformer ratio
  • True RMS measurement
  • MID B+D Certified
  • High definition white backlit LCD display
  • Simple programming & operation / auto or manual page scrolling
  • 2 x Pulse outputs and Modbus communication (Mbus available soon)
  • Daisy chaining up to 32 meters from one supply

Details

The RI-D360 series is part of the easywire® family of meters, designed to save up to 90% installation time compared to a standard meter and current transformer installation.

The meters contain two metering circuits in one case, and accept inputs from two separate easywire® current transformers while still utilizing the same voltage reference.

This MID approved, 4 module DIN rail mounted multifunction energy meter, is suitable for monitoring energy consumption and other electrical parameters in industrial and commercial applications. This series is particularly suited for use in split-load lighting and power boards, in three phase applications, and have been certified for billing purposes.

A high efficiency white backlit LCD display provides a clear indication of measured values in all light conditions. Front push-buttons allow user access to the display page required.

The meter is available in one version:-
  • With two pulse outputs and RS485 Modbus communication
  • With two pulse outputs and Mbus communication available soon
Displayed Parameters
  • Voltage - L-L, L-N and average
  • Current - Per phase and average (LOAD 1 and LOAD 2)
  • Power Factor - per phase and average
  • Frequency
  • Power - Active, Reactive and Apparent (per phase and total)
  • Power Max. demand - Active and apparent power
  • Energy - Active, reactive and apparent (per load and total)

Read more about - easywire®

Additional Information

Manufacturer Rayleigh Instruments
