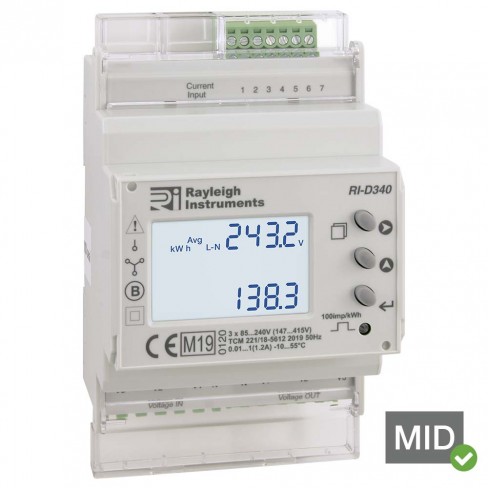

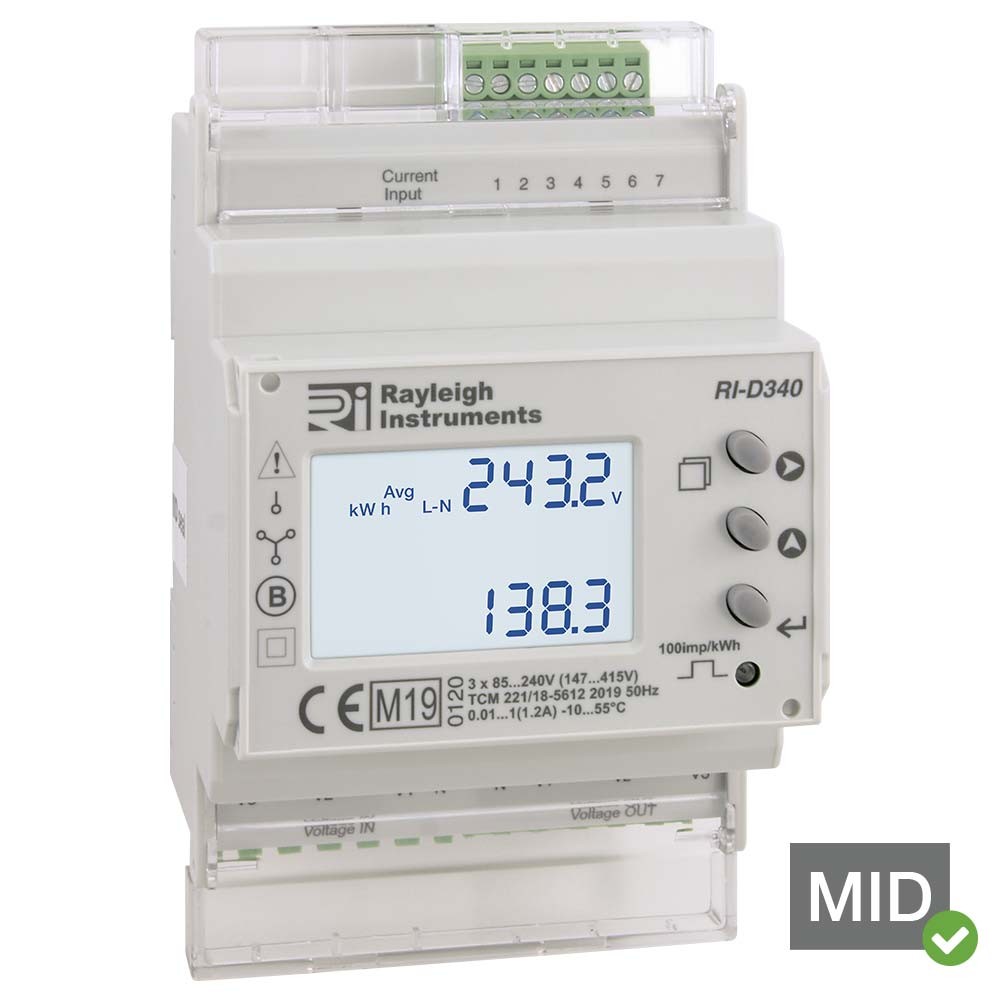

Rayleigh Instruments RI-D340 easywire Multifunction Meter - MID Certified

Features

  • Four module DIN rail mounted
  • Energy pulse LED
  • 1A Input from easywire® Current Transformers
  • Single phase or three phase network compatible
  • Programmable voltage and current transformer ratio
  • True RMS measurement
  • MID B+D Certified (Cert. No. : TCM 221/18-5612)
  • High definition white backlit LCD display
  • Simple programming and operation
  • Pulse output and Modbus communication
  • Auto or manual page scrolling
  • Daisy chaining up to 32 meters from one supply

Details

The RI-D340 series are part of the easywire® family of meters. The easywire® system has been designed to save up to 90% installation time compared to a standard meter and current transformer installation.

This MID approved DIN rail mounted multifunction energy meters is suitable for monitoring energy consumption and many other electrical parameters in industrial and commercial applications. These meters may be used in single or three phase applications and have been certified for billing purposes.

A high efficiency white backlit LCD display provides clear indication of measured values in all light conditions. Push-buttons on the front of the meter allow the user access to the display page required.

The meter is available in one version:-
  • With single pulse output and RS485 Modbus communication.
  • With single pulse output and Mbus communication available soon
The unit is housed in a compact four module width housing suitable for DIN rail mounting.

Displayed Parameters
  • Voltage - L-L, L-N and average
  • Current - per phase and average
  • Power Factor - per phase and average
  • Frequency
  • Power - Active, Reactive and Apparent (per phase and total)
  • Power Max. demand - Active and apparent power
  • Energy - Active, reactive and apparent (total)
