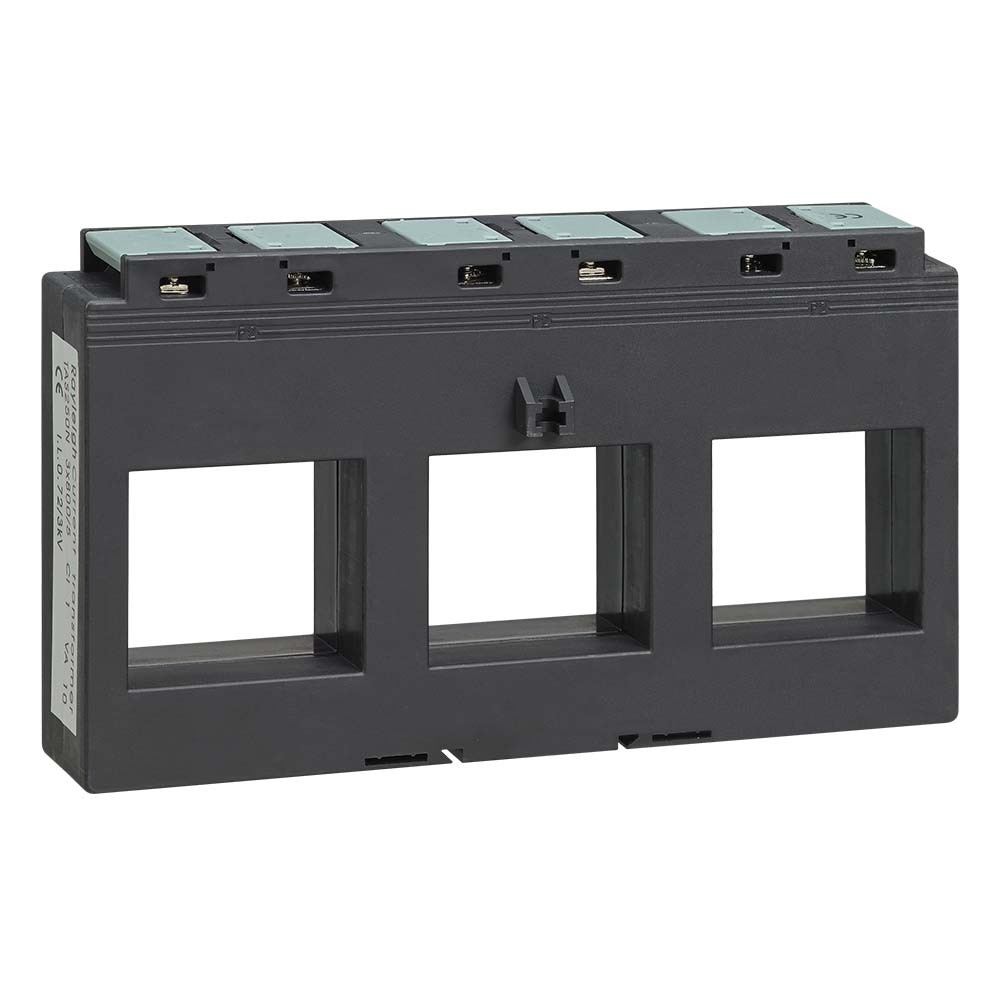

Rayleigh Instruments TAS250 Three Phase Measuring Moulded Case Current Transformers

Features

  • Three Phase Measuring Current Transformers
  • Foot, busbar or DIN rail mounting
  • Fits standard moulded circuit breaker frame sizes
  • From 630A to 1600A Primary current input available
  • 5A Secondary output
  • Sealable terminal covers included
  • 214mm width
  • 70mm bar centres
  • 54 x 50mm apertures
  • Class Accuracy: 0.5, 1 and 3

Details

The TAS250 is part of the TAS family of three phase current transformers and is one of four frame sizes available. These current transformers have been designed with hole centres and apertures to fit most standard industrial circuit breakers.

The TAS250 three phase current transformer is suitable for monitoring current in industrial and commercial applications.

Additional Information

Manufacturer Rayleigh Instruments

Downloads

Product Name / Options Price (ex VAT)
TAS250 - Three Phase Current Transformer - 630 / 5A Call for Prices

TAS250 - Three Phase Current Transformer - 800 / 5A Call for Prices

TAS250 - Three Phase Current Transformer - 1000 / 5A Call for Prices

TAS250 - Three Phase Current Transformer - 1250 / 5A Call for Prices

TAS250 - Three Phase Current Transformer - 1600 / 5A Call for Prices
