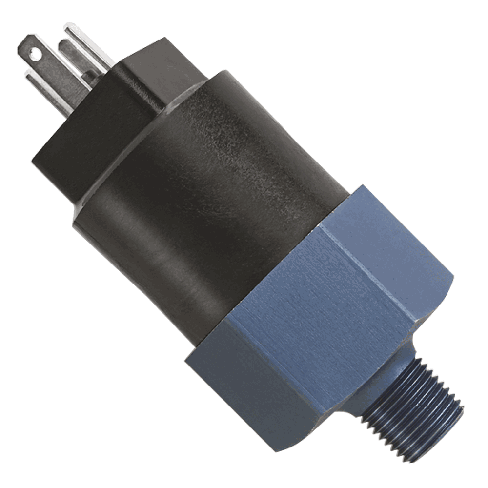

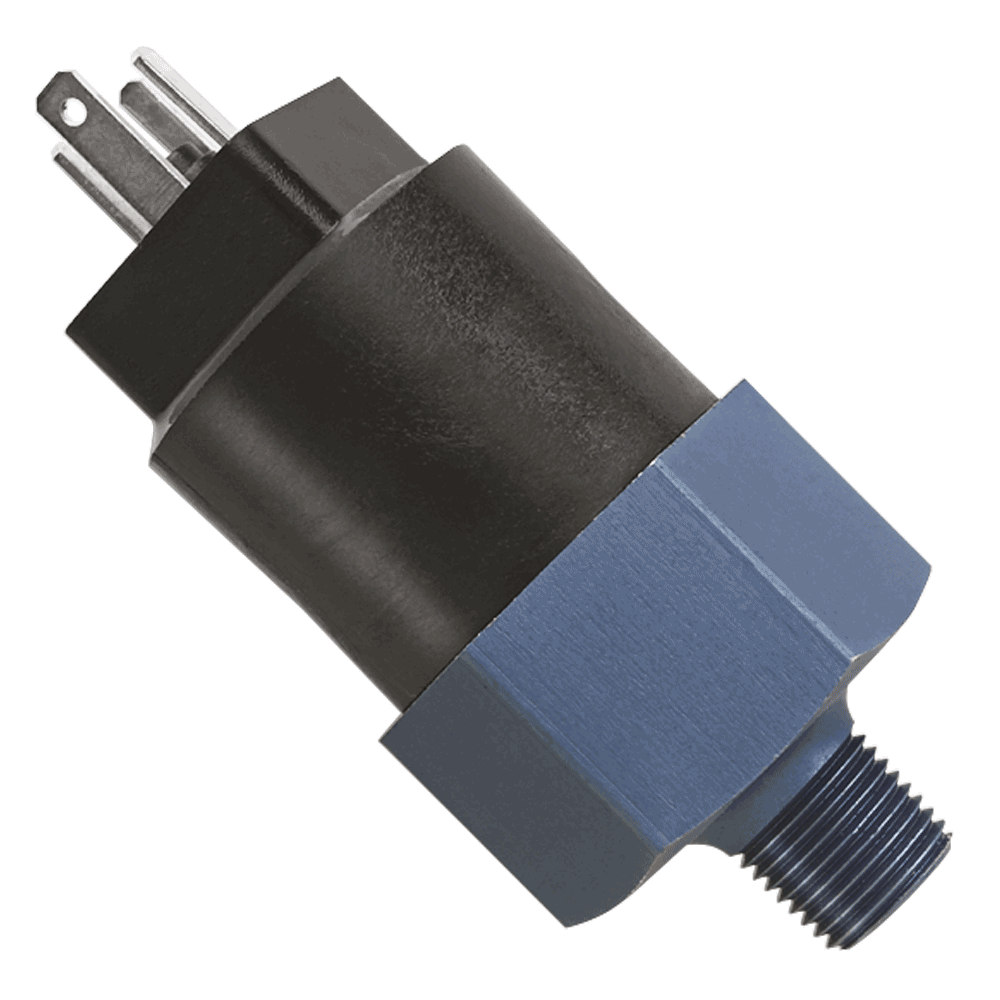

Nason SM Low Pressure Switch - 0.14 to 8.3bar (120psi)

Features

  • Pressure Switch up to 8.3bar
  • Long life elastomer diaphragm
  • High quality snap action switch
  • Factory preset
  • Available in a wide range of configurations
  • Economical
  • Pneumatic and Hydraulic applications
  • NEMA 4, 13

Details

The SM range of pressure switches are an economic pressure switch option with a factory set switch point.

The SM pressure switch is available with a wide range of pressure and electrical connection options.

Additional Information

Manufacturer Nason

Downloads

Product Name / Options Price (ex VAT)
To enquire about this product, please contact our Sales Department on 01245 428500 for a quotation using the order codes shown below Call for Prices
