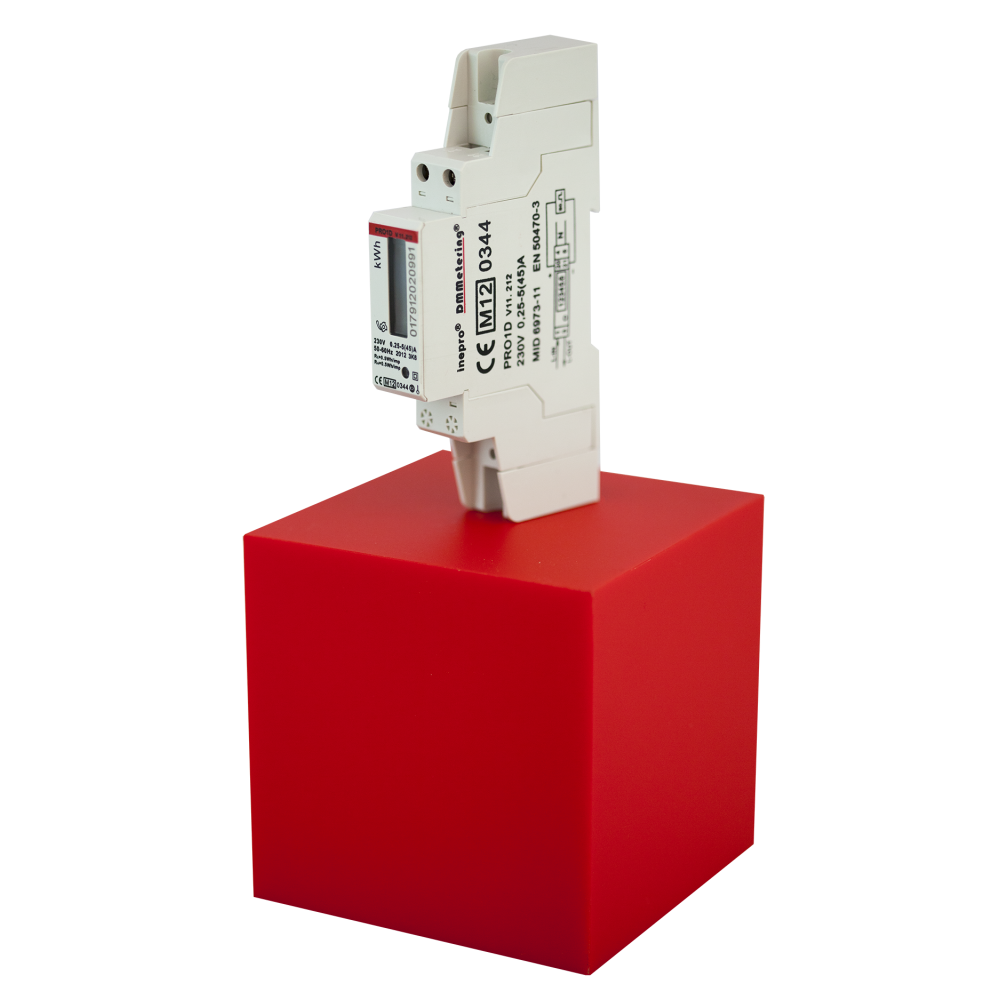

Inepro PRO1-D 45A Single Phase Network MID Certified Kilowatt Hour Active Energy Meters

Features

This product is no longer available - see bottom of page for alternative

  • Single phase network
  • Conforms & Certified to MID B and D approval
  • 45A Direct connected
  • 18mm wide/1 module
  • Counts up regardless of energy direction
  • LCD with backlight PRO1D
  • Impulses / kWh depends on what model is ordered

Details

This product is no longer available - see bottom of page for alternative

The PRO1 series is labeled as follows:

PRO1D/TE V 11 . x x x
Pulse led and pulse output:
1 = 1000 impulses / kWh
2 = 2000 impulses / kWh
Reverse counting:
1 = Does not count when energy is reversed
2 = Counts up regardless of energy direction
Type of display:
1 = LCD without backlight PRO1D
2 = LCD with backlight PRO1D

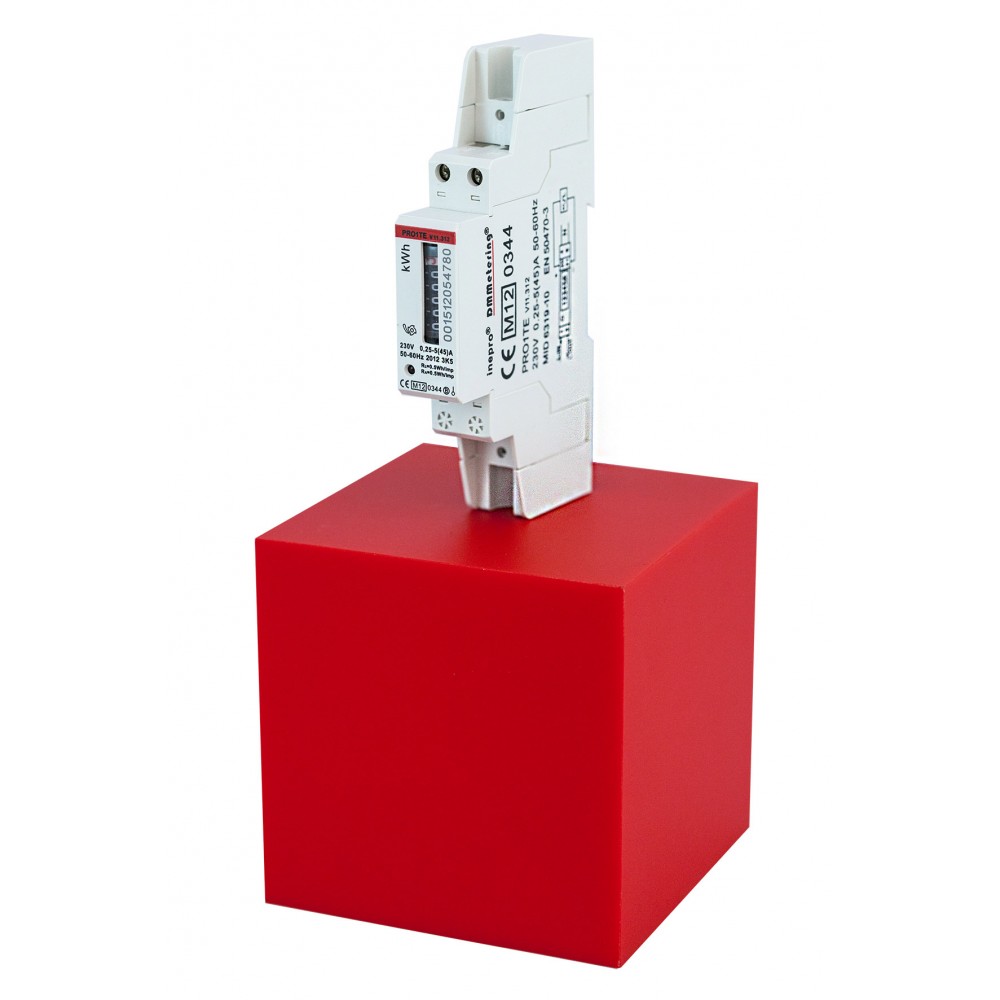

3 = Mechanical register PRO1TE

Full Specifications

Meter type PRO1D/ PRO1TE series
Nominal voltage (Un) 230V AC
Operational voltage 195 - 253V AC
Insulation capabilities:
- AC voltage withstand 4KV for 1 minute
- Impulse voltage withstand 6KV – 1.2µS waveform
Basic current (Ib) 5A
Maximum rated current (Imax) 45A
Max. current for direct wire connection 32A
Operational current range 0.4% Ib- Imax
Over current withstand 30Imax for 0.01s
Operational frequency range 50Hz ±10%
Internal power consumption ≤2W/Phase - ≤10VA/Phase
Test output flash rate (RED LED) 1000 or 2000 imp/kWh, see section 5
Pulse output rate 1000 or 2000 imp/kWh, see section 5
Data store The data can be stored for more than 10 years without power

Additional Information

Manufacturer Inepro

Downloads

Product Name / Options Price (ex VAT)
Inepro PRO-1D 45A Single Phase Network MID Certified Kilowatt Hour Active Energy Meters (V11.222) - 2000 impulses / kWh Call for Prices
