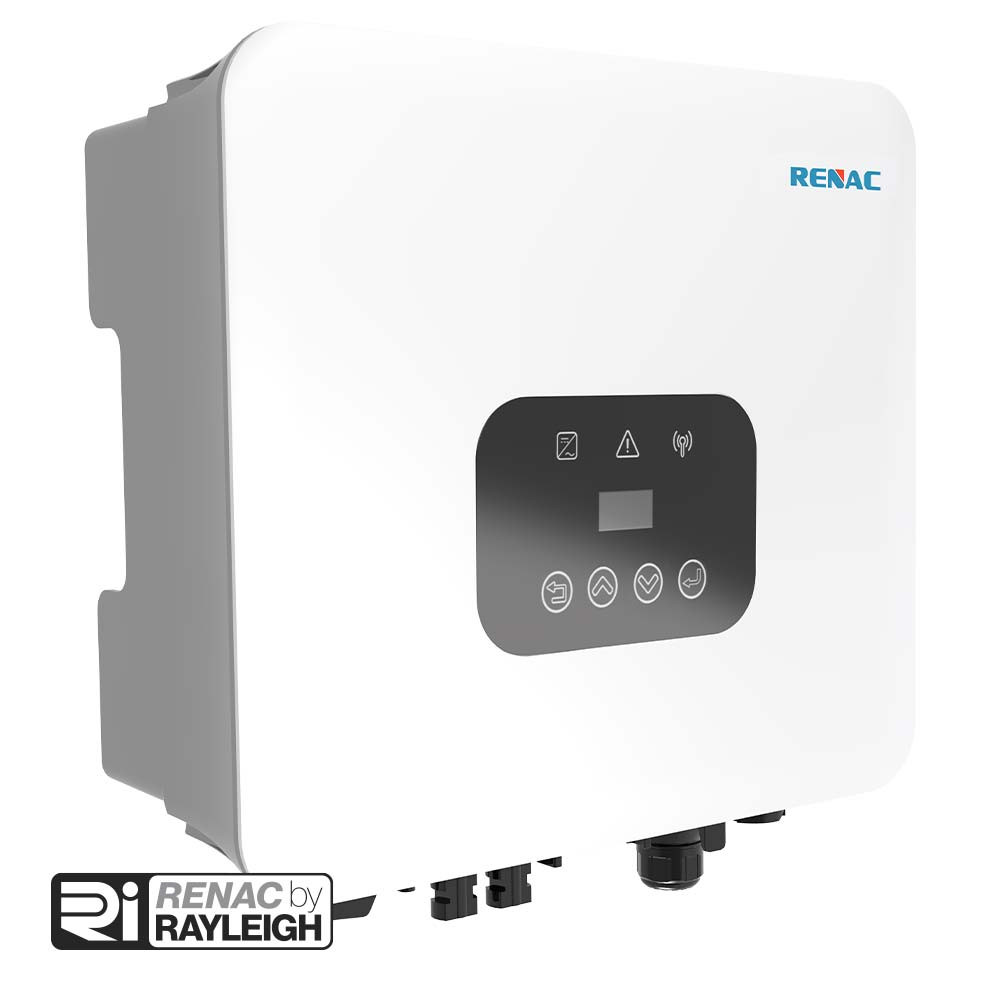

Rayleigh Instruments RI-Energyflow-Macro-R1 Grid-tied Inverters Single Phase

More Views

Rayleigh Instruments RI-Energyflow-Macro-R1 Grid-tied Inverters Single Phase

Features

Available as 3.68kW, 5.0kW and 6.0kW - Single Phase versions
Max. PV input current 16A
Max. PV voltage up to 600V
150% PV input oversizing
Type II SDP Surge Protection for both DC and AC
High efficiency operation - up to 97.9%
Over-temperature protection
Integrated Export Control function
Dual MPPT
Natural cooling
Remote monitoring
Compact and lightweight
IP65 Rated
Easy installation
Optional Wi-Fi/GPRS plug
G98 and G99 compliant
Remote firmware upgrade and setting
Optional AFCI protection function

- | Add to Compare

Details

The RI-ENERGYFLOW-MIDI Series Single-Phase PV Inverters form part of an expanding RENAC by RAYLEIGH family of inverters from Rayleigh Instruments.

These inverters are an ideal choice for residential projects with higher power density. Wider input voltage ranges offer more flexible installation and are a perfect match for high power PV panels.

Available as 3.68kW, 5.0kW and 6.0kW versions

Additional Information

Manufacturer	Rayleigh Instruments

Downloads

Files

RI-ENERGYFLOW-MACRO-R1 - Data Sheet (395KB)

Product Name / Options	Price (ex VAT)
Call our Sales Team for Model Options and Prices - 01245 428500	Call for Prices
