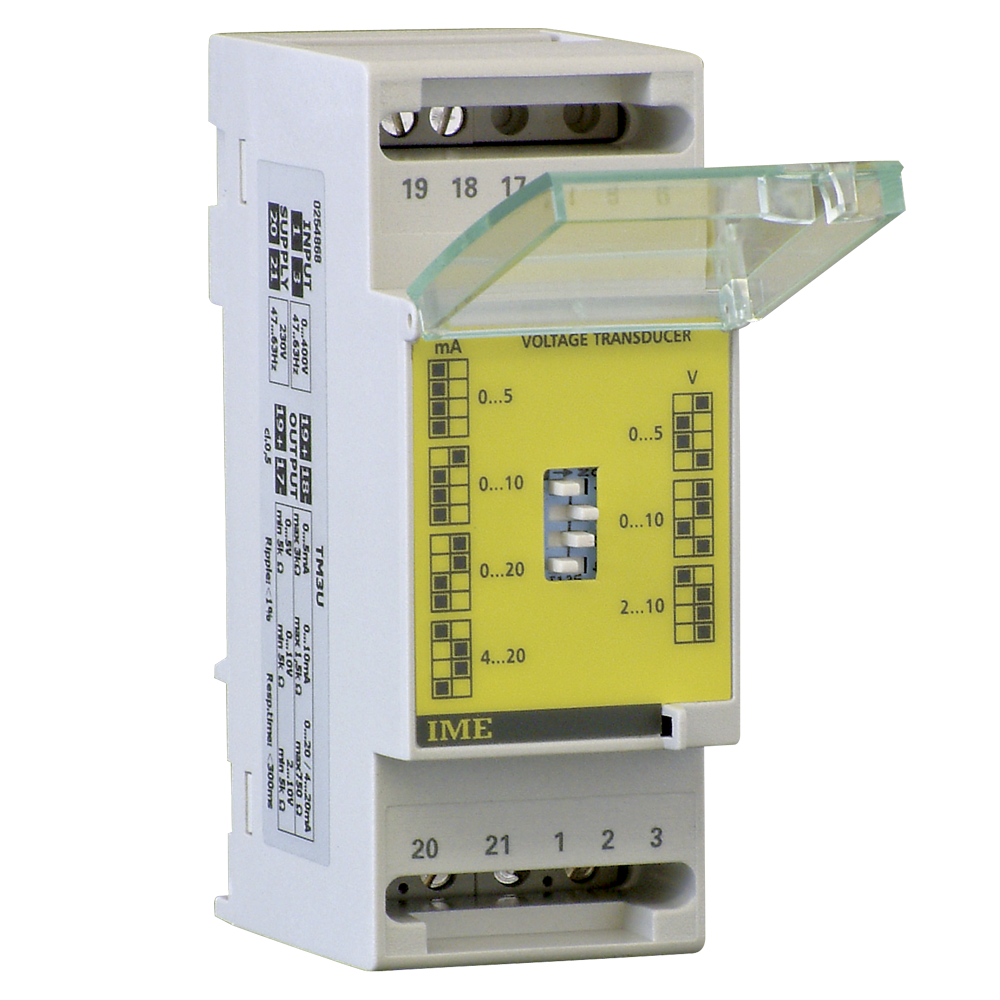

IME Tema U4 TM3U - AC Alternating Voltage Isolated Transducer - RMS

Features

  • Alternating voltage transducer
  • Single phase AC
  • Output selectable on field (7 ranges)
  • AC Voltage input
  • Accuracy 0.5 (20....120%.In)
  • Direct input up to 500V
  • Dip switch programmable current or voltage analogue output
  • Available with 230Vac, 115Vac and 20-150Vdc auxiliary supply

Details

A DIN rail mounting electronic transducer to measure single phase alternating voltage circuit and provide a proportional DC analogue output signal. The TM3U is available with 230Vac, 115Vac and 20-150Vdc auxiliary supply.

INPUT
  • Voltage rating Un: 100 - 110 -120 - 250 - 400 - 500V
  • Other values on request
  • Frequency rating fn: 50Hz
  • Excessive input of short duration (EN 60688): 2Un/1s (Max 600V)
  • Rated burden: ≤ 0,5VA
OUTPUT
  • Type: unidirectional, real or live zero for variable output load
  • Accuracy (EN 60688): class 0,5
  • Ripple content (EN 60688): ≤ 1%
  • Response time (EN 60688): ≤ 300 ms
  • Rated value: selectable by dip switch (7 ranges)
  • Current rated values: 0…5 - 0…10 - 0…20mA - 4...20mA
  • Compliance voltage: 15V
  • Output load: ≤ 750Ω (20mA) - ≤ 1,5kΩ(10mA) - ≤ 3kΩ (5mA)
  • Voltage rated values: 0…5 - 0…10 - 2…10V
  • Output load: ≥ 5kΩ
HOUSING
  • Dimensions: 2 module DIN 43880
  • Connections: screw terminals for cable up to 4 mm2
  • Mounting: snap-on 35mm rail
  • Rail type: top hat TH35-15 (EN60715)
  • Housing material: self-extinguishing makrolon
  • Protection degree (EN 60529): IP40 (front frame), IP20 (terminals)
  • Weight: 200 grams

Product Name / Options Price (ex VAT)
IME Tema U4 TM3U210 Alternating Voltage Isolated Transducer 100V Input 115V ca / ac Call for Prices

IME Tema U4 TM3U220 Alternating Voltage Isolated Transducer 110V Input 115V ca / ac Call for Prices

IME Tema U4 TM3U230 Alternating Voltage Isolated Transducer 120V Input 115V ca / ac Call for Prices

IME Tema U4 TM3U270 Alternating Voltage Isolated Transducer 250V Input 115V ca / ac Call for Prices

TM3U2C0 (500V Aux 115Vac) Call for Prices

TM3U310 (100V 230V) Call for Prices

TM3U370 (250V Aux 230Vac) Call for Prices

IME Tema U4 TM3U390 400V Input, 230 - 240V ca / ac Aux Supply Call for Prices

TM3U3C0 (500V Aux 230Vac) Call for Prices

TM3UH10 (100V 20-150Vdc/40-60Vac) Call for Prices

TM3UH20 (110V 20-150Vdc/40-60Vac) Call for Prices

TM3UH30 (120V 20-150Vdc/40-60Vac) Call for Prices

TM3UH70 Call for Prices

TM3UHAO Call for Prices

TM3UHC0 Call for Prices
