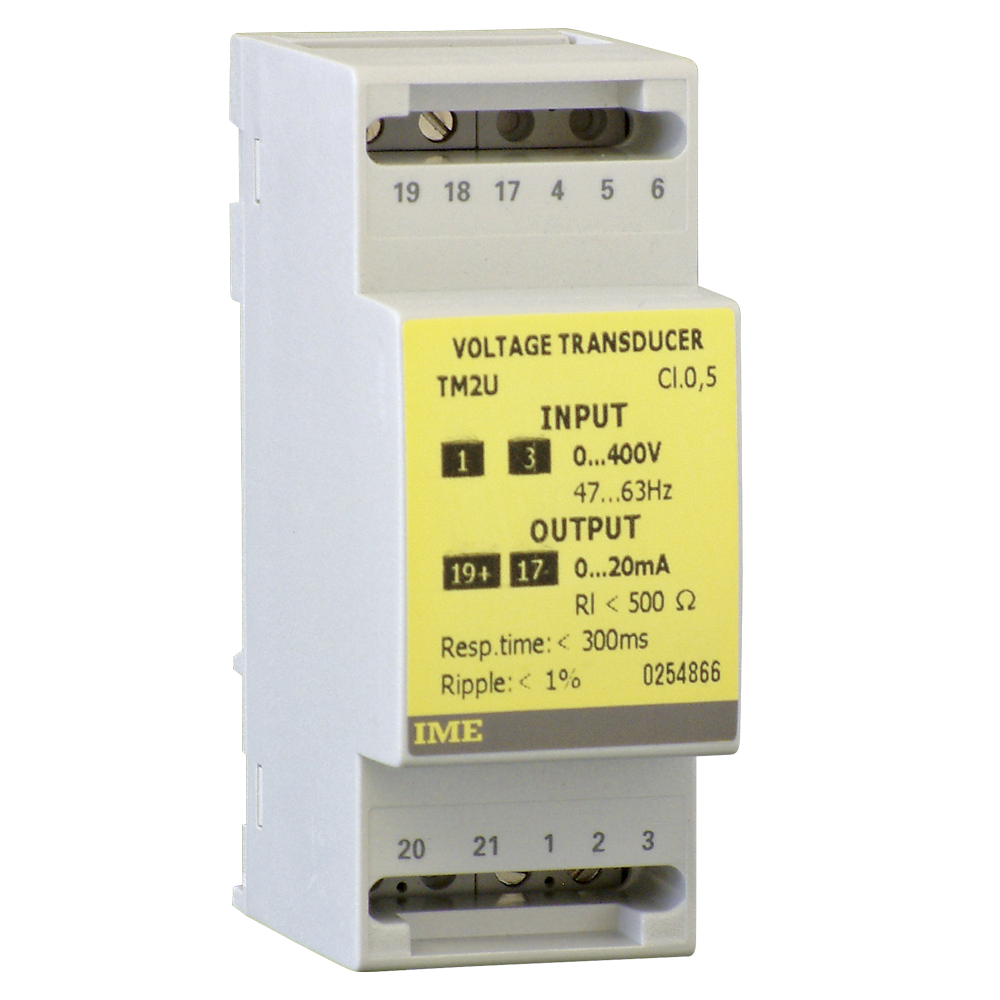

IME Tema U TM2U AC Voltage Isolated Transducer - RMS

Features

  • True R.M.S measurement
  • Accuracy 0.5 (20....120%.In)
  • AC Voltage input
  • DC Current or voltage output
  • Self supplied auxiliary

Details

A DIN rail mounting electronic transducer to measure single phase alternating voltage circuit and provide a proportional DC analogue output signal. The TM2U is a self-supplied unit. Direct input up to 440V.

INPUT
  • Voltage rating Un: 100 - 110 - 120 - 250 - 400 - 440V
  • Other values on request
  • Frequency rating fn: 50Hz
  • Excessive input of short duration (EN 60688): 2Un/1s (Max 450V)
  • Rated burden: ≤ 2,5VA
OUTPUT
  • Type: unidirectional, real zero for variable output load
  • Accuracy (EN 60688): class 0,5
  • Ripple content (EN 60688): ≤ 1%
  • Response time (EN 60688): ≤ 300ms
  • Current rated values: 0...5 - 0...10 - 0...20mA
  • Compliance voltage: 10V
  • Output load: ≤ 500 Ω (20 mA) ≤ 1 kΩ (10mA) ≤ 2 kΩ (5mA)
HOUSING
  • Dimensions: 2 module DIN 43880
  • Connections: screw terminals for cable up to 4 mm2
  • Mounting: snap-on 35mm rail
  • Rail type: top hat TH35-15 (EN60715)
  • Housing material: makrolon self-extinguishing
  • Protection degree (EN 60529): IP50 (front frame), IP20 (terminals)
  • Weight: 200 grams

Product Name / Options Price (ex VAT)
TM2UA74 (250V 0-20mA) Call for Prices

TM2UA76 (250V 0-5Vdc) Call for Prices

TM2UA98 (400V 0-10Vdc) Call for Prices

TM2UA94 (400V 0-20mA) Call for Prices

TM2UA78 (250V 0-10V) Call for Prices

TM2UAA4 (440V 0-20MA) Call for Prices

TM2UAA6 (440V 5Vdc) Call for Prices
