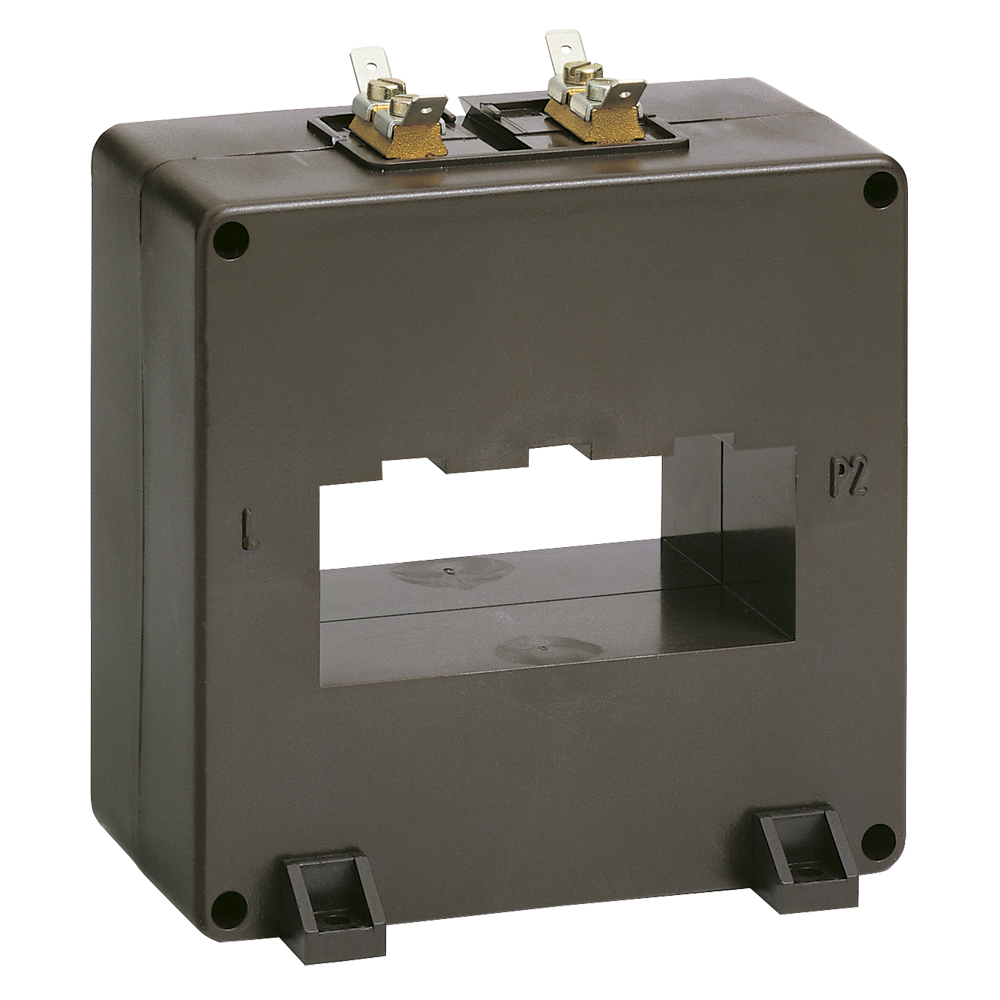

IME TAWB TAS80P Single Phase Protection Class 5P5 5P10 5P15 5P20 Current Transformers

Features

  • Protection current transformer (formerly TAS80P)
  • Ranges: 300 to 2500A (1A or 5A Secondary)
  • Busbar window 82 x 32mm
  • Secondary terminals M4 screws and 6.3 x 0.8mm fast-on
  • Supplied with fixing feet
  • Optional sealable terminal cover (ATACOP03)
  • Weight 2000g

Details

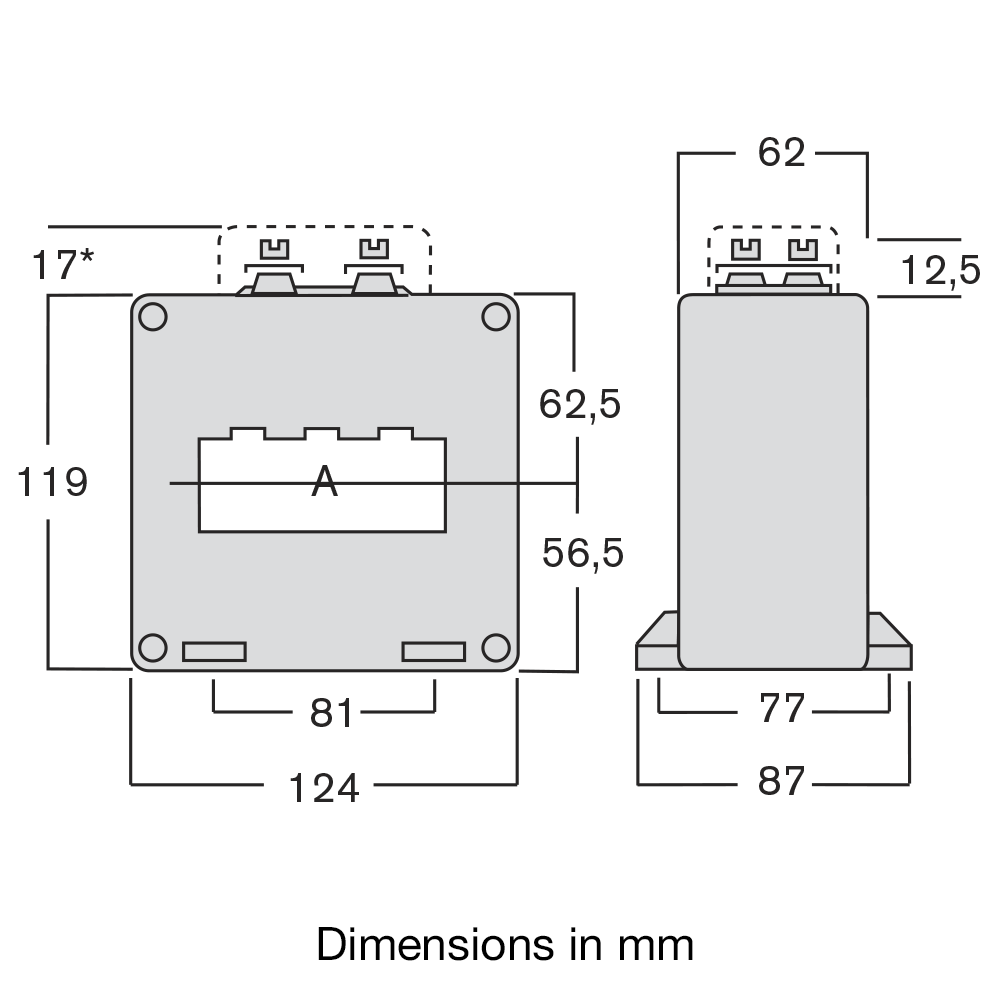

Single-phase current transformer Passing bus bar primary Primary current 300...2500A Secondary current 1 - 5A Accuracy class: 5P5 - 5P10 - 5P15 - 5P20 Rated burden: 8…45VA (5P5) 4…12VA (5P10) 2,5…6VA (5P15) 1,5…3VA (5P20) HOUSING Housing material: self extinguishing polycarbonate Protection degree (EN60529): IP40 housing, IP00 terminals (IP20 with sealable terminal cover) Option: sealable terminal cover Weight: 2000 grams (Max.) CONNECTIONS Primary winding: passing bus bar Max. tightening torque for passing primary bar fixing screws: 0,2Nm Secondary winding: tightening by nut M4 Connections label: primary winding P1(K) – P2(L) secondary winding s1(k) – s2(l) DIMENSIONS
Product Name / Options Price (ex VAT)
TAWB50C400 (400/5A) Call for Prices

TAWB50C500 (500/5A) Call for Prices

TAWB50D100 (1000/5A) Call for Prices

TAWB50D120 (1200/5A) Call for Prices

TAWB50D150 (1500/5A) Call for Prices

TAWB50D160 (1600/5A) Call for Prices

TAWB50D200 (2000/5A) Call for Prices

TAWB10D120 (1200/1A) Call for Prices

TAWB10D200 (2000/1A) Call for Prices
