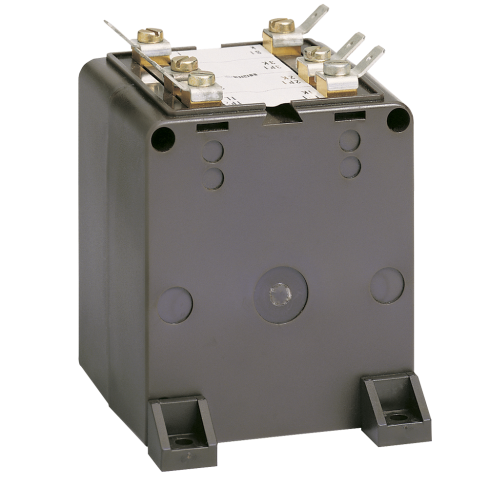

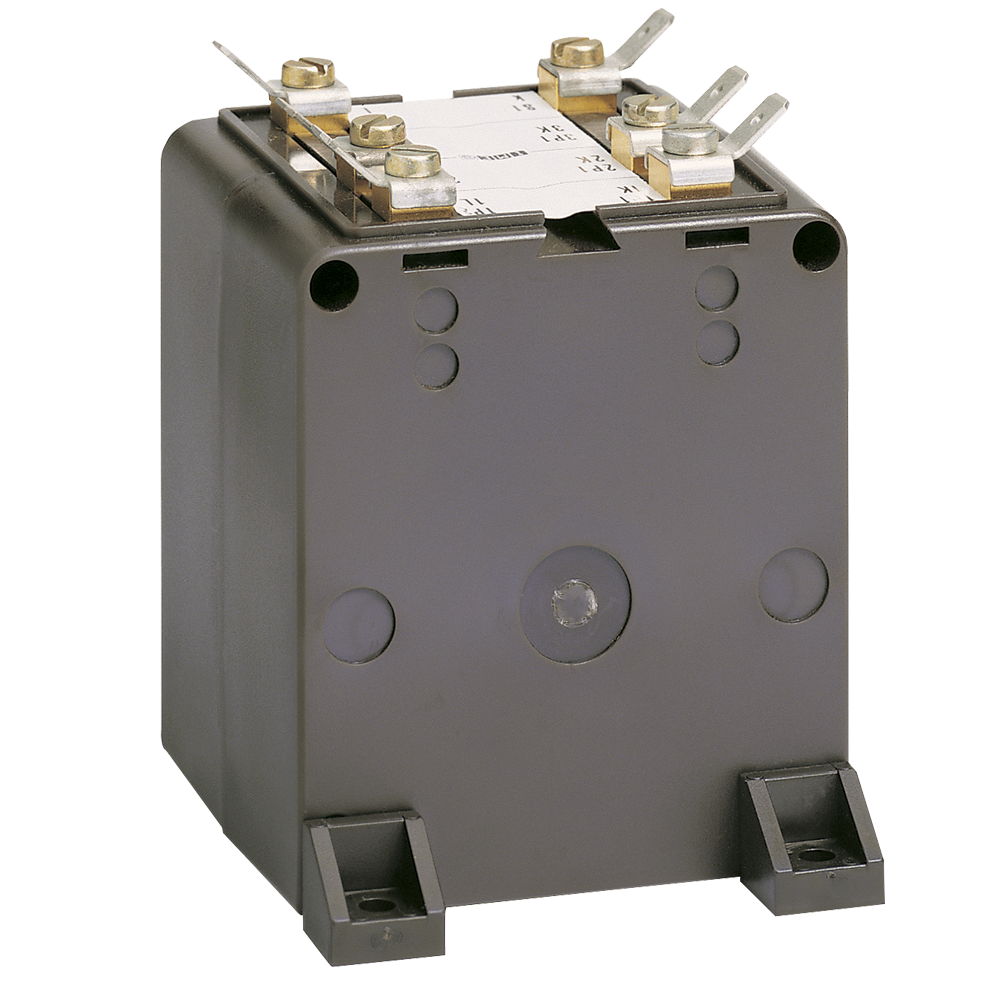

IME TAEA BSA02/BSA03 Primary Winding Summation Current Transformer With 2 or 3 Inputs

Features

  • Summation current transformer BSA02
  • Summates up to 2 or 3 equal inputs (1A or 5A Secondary)
  • Accuracy class:cl.0,5-1
  • Unequal inputs on request
  • M4 terminal screws and 6.3 x 0.8mm fast-on
  • Optional Accessory : Sealable terminal cover (ATACOP11)
  • Weight 320g

Details

A range of current transformers to summate currents from various current transformer secondary sources and provide a proportional current output. The TAEA may be used to summate CT inputs of the same, or different, ratios. When summating three phase circuits, it is necessary to summate like phases ie L1-L1, L2-L2, L3-L3.

Features

  • 2 or 3 single-phase input current summation transformer
  • It effects the vectorial sum of the currents of many lines in just one voltage system.
  • It is essential when the main C.T. ratios are not the same
  • Primary winding
  • Primary currents 1 - 5A
  • Secondary currents 1 - 5A
  • Accuracy class: cl.0,5 - 1
  • Rated burden: 10VA (class 0,5), 15VA (class 1)





Housing

  • Housing material: self extinguishing polycarbonate
  • Protection degree (EN/IEC 60529): IP40 housing, IP00 terminals (IP20 with sealable terminal cover)
  • Option: sealable terminal cover
  • Option: accessory for snap-on 35mm rail mounting
  • Rail type: top hat TH35-15 (EN/IEC 60715)
  • Weight: 320 grams (Max.)



Connections

  • Primary winding: tightening by nut M4
  • Secondary winding: tightening by nut M4
  • Connections label: primary winding P1(K) – P2(L) secondary winding s1(k) – s2(l)

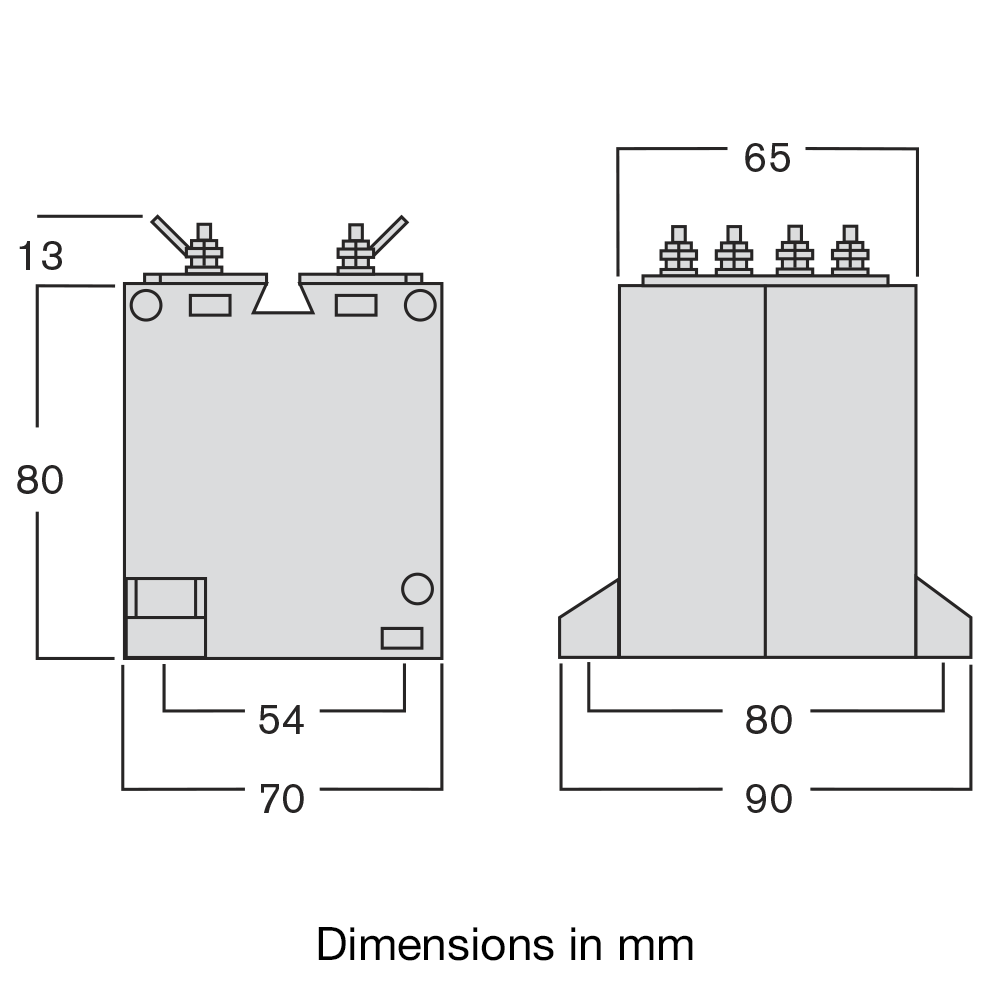

Dimensions

Additional Information

Manufacturer IME (BTicino)

Downloads

Product Name / Options Price (ex VAT)
IME TAEA5025 BSA02 Summation Current Transformer With 2 Inputs 5+5A Input With Secondary 5A Call for Prices

IME TAEA5035 BSA03 Summation Current Transformer With 3 Inputs 5+5+5A Input With Secondary 5A Call for Prices

IME TAEA1021 BSA02 Summation Current Transformer With 2 Inputs 1+1A Input With Secondary 1A Call for Prices

IME TAEA5031 BSA03 Summation Current Transformer With 2 Inputs 1+1+1A Input With Secondary 1A Call for Prices
