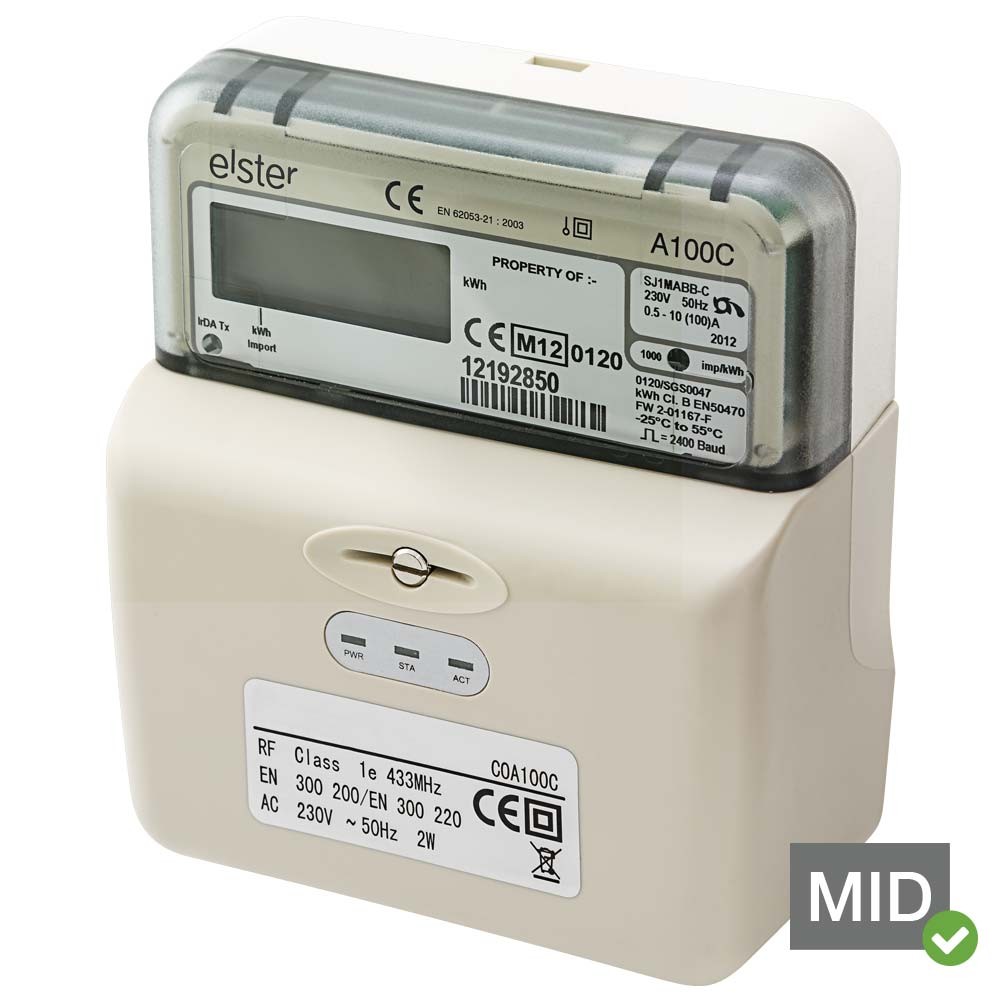

Elster A100C Electronic MID Certified Single Phase Meter with Integrated RF Data Logger

Features

  • Accuracy Class 1 or Class 2
  • Accuracy Class A or Class B, EN 50470-3:2006 (DIN IrDA only)
  • kWh import or kWh import/export
  • 7 digits. 6 Whole Kwh with 1 decimal point.
  • Large digit (9.8mm) multilingual display with chevron information indication
  • Extensive security data Communications as standard
  • 12kV impulse withstand
  • High security, compact design
  • DIN double insulated, glass filled polycarbonate case
  • Permanently fixed main cover
  • Rate select for two rate meters
  • IP53 in accordance with IEC 60529:1989

Details

The A100C has been designed with accuracy and reliability in mind and benefits from the integration with the RF communications platform for remote monitoring and data transmission.

The A100C is a compact and secure domestic style, single phase electric meter that delivers a cost effective solution for one or two rate domestic applications. The A100C can be integrated with an Orsis data logging and transmission device (Data Logger - COA) enabling two way communications with the Local Data Concentrator.

The energy consumption or generation data is transmitted to the LDC for data verification and forwarded to the relevant stakeholders.

The meter data can be used for measuring both energy consumption and energy generation from solar PV systems. The system only takes the meter registers and therefore meter reads can be used for Feed in Tariff claims and PV system monitoring.

Additional Information

Manufacturer Elster
