IME RD1DF Delta 48-S Earth Leakage Residual Current Device With 1 Alarm 48x48mm

More Views

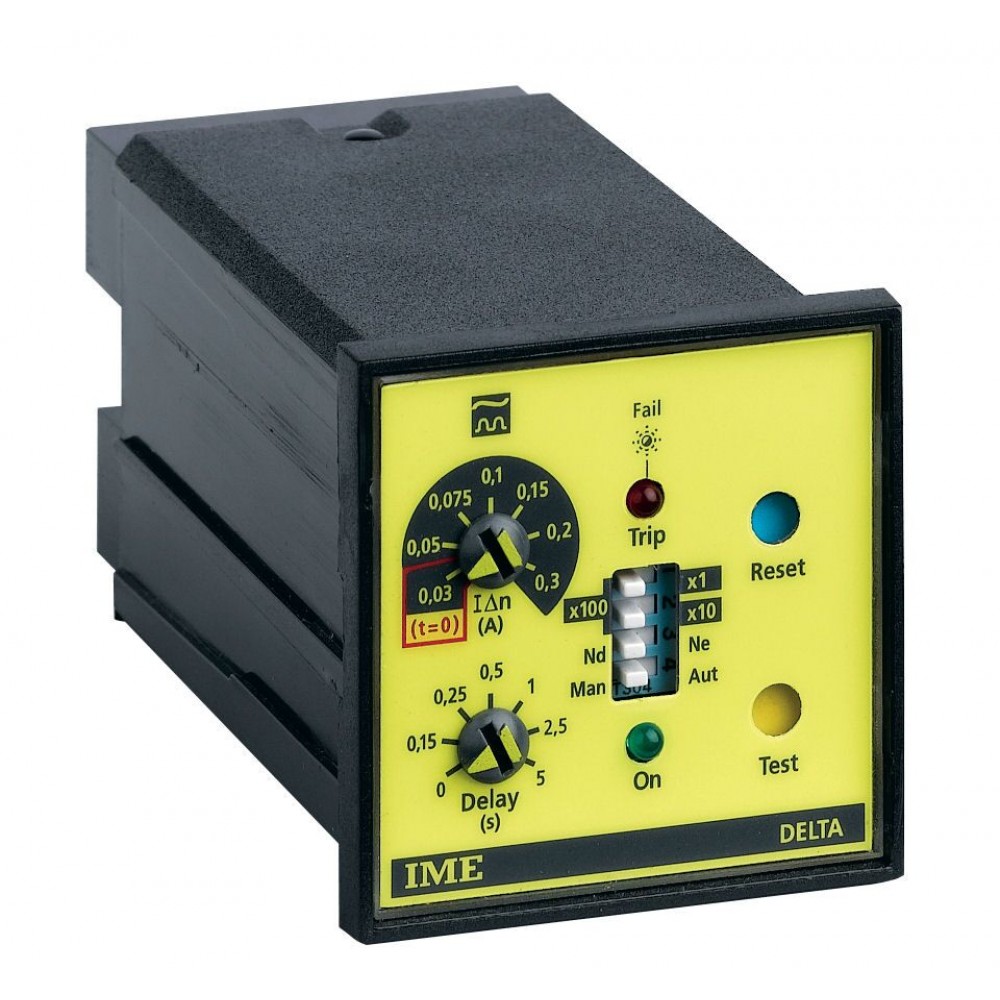

IME RD1DF Delta 48-S Earth Leakage Residual Current Device With 1 Alarm 48x48mm

Features

Instantaneous (t = 0) at IΔ n 30mA
Selectable set point 30mA…30A (19 ranges)
Field-selectable negative or positive security

- | Add to Compare

Details

Instantaneous
(t = 0) at IΔ n 30mA
Selectable set point
30mA…30A (19 ranges)
Field-selectable negative or positive security (fail safe)
Automatic permanent test
Manual or automatic reset (3 restart attempts)

Output

Relay: 1 SPDT contact
Contact range: 5A 250Vac cosϕ 1 - 3A 250Vac cosϕ 0,4 - 5A 30Vdc
Negative security (normally de-energised relay) or positive security fail safe (normally energised relay): selectable by dip switch

Auxiliary Supply

Rated value Uaux : 24V - 48V - 115V - 230V - 240V - 400V
Tolerance : 0.85...1,1Uaux - 40...60V (Uaux 48V)
Rated frequency : 50Hz
Tolerance : 47…63Hz
Rated burden : ≤ 2.5VA
Rated value Uaux : 20...150Vdc
Protected against incorrect polarity
Rated burden : ≤ 2.5W
Immunity to short interruption of supply voltage up to 300ms (Rated Uaux)

Housing

Housing : flush mounting (panel cutout 45 x 45mm)
Depth : 102mm
Front frame : 48 x 48mm (52 x 52 con opzione IP54)
Connections : fast-ons 6.3 x 0.8mm
Housing material : self-extinguishing policarbonate
Protection degree (EN/IEC 60529) : IP40 front frame, IP20 terminals
Option : kit for IP54 front frame protection
Weight : 200 grams

Additional Information

Manufacturer	IME (BTicino)

Downloads

Files

IME RD1DF Delta 48-S Earth Leakage Residual Current Device Datasheet

Product Name / Options	Price (ex VAT)
IME Delta 48-S RD1DF12B Earth Leakage Relay With 1 Alarm (manual or automatic reset) - 115 ca/ac Aux Supply	Call for Prices
IME Delta 48-S RD1DF13B Earth Leakage Relay With 1 Alarm (manual or automatic reset) - 230 ca/ac Aux Supply	Call for Prices
IME Delta 48-S RD1DF14B Earth Leakage Relay With 1 Alarm (manual or automatic reset) - 240 ca/ac Aux Supply	Call for Prices
IME Delta 48-S RD1DF15B Earth Leakage Relay With 1 Alarm (manual or automatic reset) - 400 ca/ac Aux Supply	Call for Prices
IME Delta 48-S RD1DF1HB Earth Leakage Relay With 1 Alarm (manual or automatic reset) - 20...150V cc/dc - 40...60Vca/ac 115V ca/ac Aux Supply	Call for Prices
